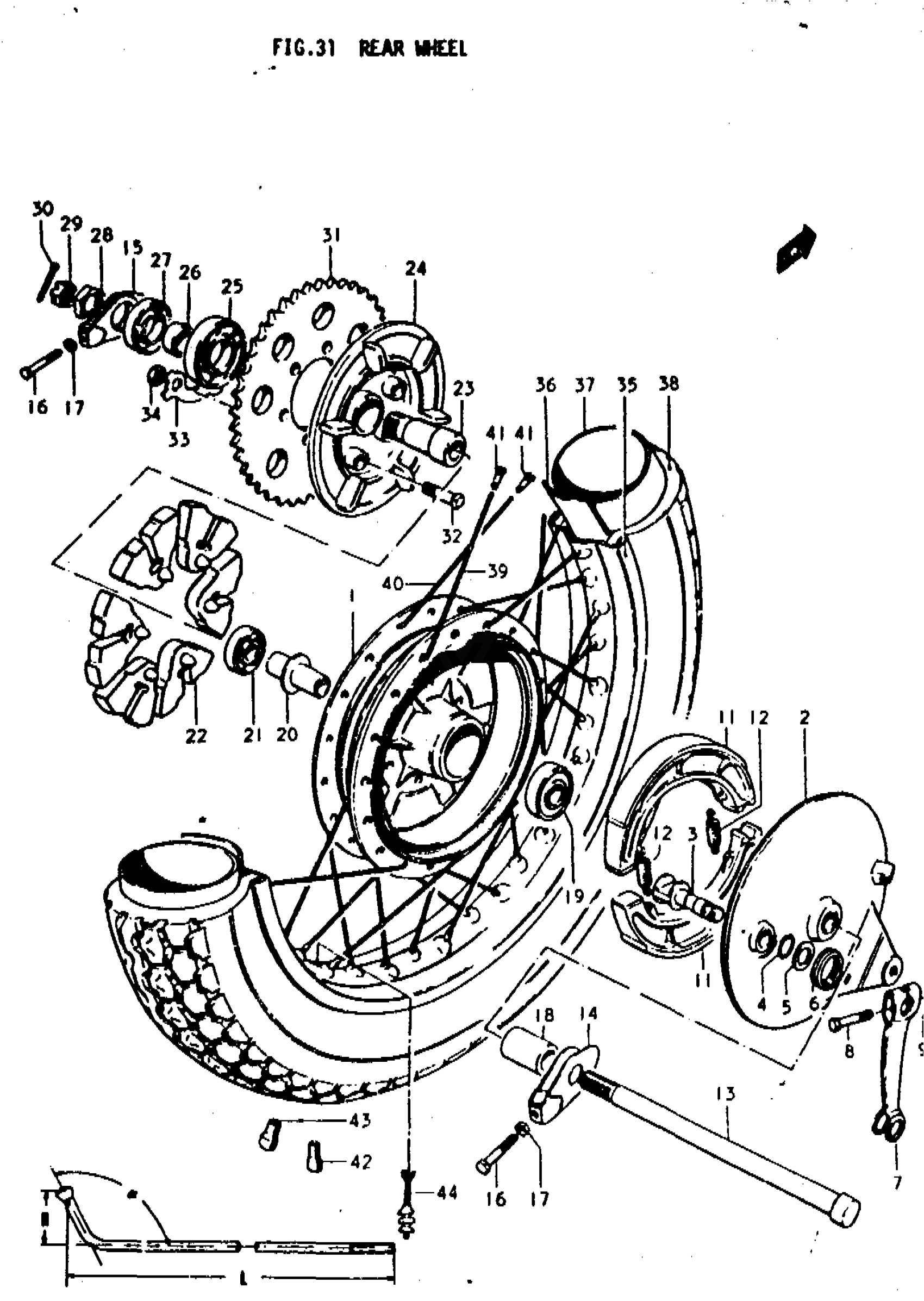

Suzuki T3501 (1972) REAR WHEEL Diagram

#

Description
Price

1

DRUM, REAR HUB

64110-11000

Unavailable

2

PANEL, REAR HUB | TO 64210-11001 WITH 54440-33001

64210-11000

Unavailable

3

CAM, BRAKE | FROM 54440-11002 This part replaces 54440-11003.

64440-38A00

Unavailable

3

CAM, BRAKE | J This part replaces 54440-33001.

54440-33002

Unavailable

4

O RING (ID:14.8,D:2.40) | ID:14.8, D.:24 This part replaces 09280-15001.

09280-15003

$1.76

5

WASHER | 15x24x1.6 This part replaces 09160-15001.

09160-15048

$2.56

6

SPRING This part replaces 09448-30001.

09448-30001-XC0

Unavailable

7

LEVER, BRAKE CAM

64451-11000

Unavailable

8

BOLT

01111-06408

Unavailable

9

WASHER This part replaces 08322-21068.

08322-01067

$2.13

10

.NUT This part replaces 08311-11068.

08310-00067

$2.13

11

SHOE SET,BRAKE( | TO 64410-11002 WITH 54440-33001 This part replaces 64410-11001.

64400-11870

Unavailable

11

SHOE SET,BRAKE( | J This part replaces 64410-11002.

64400-11870

Unavailable

12

SPRING, BRAKE SHOE

55420-30000

$4.48

13

NO DESCRIPTION AVAILABLE | OD:16, L:252 This part replaces 64711-11000.

64711-0800V

Unavailable

14

ADJUSTER, CHAIN RH

61410-15002

Unavailable

15

ADJUSTER, CHAIN LH

61420-15002

Unavailable

16

BOLT (8X50) | 8x50 This part replaces 09104-08006.

09104-08034

$3.04

17

NUT This part replaces 08312-11088.

08310-00087

$2.13

18

SPACER, REAR AXLE | 17.5x28x36.8

09180-17024

Unavailable

19

BEARING, LH This part replaces 08143-63030.

08143-63037

$22.58

20

SPACER, HUB BEARING | L:57

64730-11000

Unavailable

21

BEARING, FRONT HUB RH This part replaces 08143-62030.

08143-62037

$18.47

22

SHOCK ABSURBER, REAR DRUM | FROM 64651-11000 This part replaces 64651-11001.

64651-11002

Unavailable

23

SHAFT, SPROCKET DRUM

64761-11000

Unavailable

24

DRUM, REAR SPROCKET

64611-11000

Unavailable

25

BEARING, LH This part replaces 08113-62050.

09262-25003

$24.83

26

SPACER, SPROCKET DRUM | 25x30.5x11.3

09180-25011

Unavailable

27

SEAL,OIL(30.5X5 | 30.5x52x8 This part replaces 09283-30001.

09285-30003

$23.97

28

NUT This part replaces 09140-24002.

09140-24010

Unavailable

29

NUT

08314-31167

Unavailable

30

COTTER PIN

04111-40358

Unavailable

31

SPROCKET, REAR | NT:38

64511-11700

Unavailable

31

SPROCKET, REAR | NT:41, OPT

64511-11000

Unavailable

31

SPROCKET, REAR | NT:39, OPT

64511-11710

Unavailable

31

SPROCKET, REAR | NT:40, OPT FROM 64511-11720

64511-11000

Unavailable

31

SPROCKET, REAR | NT:42, OPT

64511-11730

Unavailable

32

BOLT | 10x35 This part replaces 09119-10002.

09105-10001

$2.87

33

WASHER, SPROCKET

09169-10006

Unavailable

34

NUT This part replaces 08312-31108.

08310-00107

$2.19

35

RIM, WHEEL | 1.858x18

65311-11220

Unavailable

36

IN TUBE PROTECT This part replaces 55261-11010.

55261-26F10

$4.39

37

TUBE ASSY, WHEEL INNER | 3.25-18 This part replaces 65200-18010.

65200-44AA0

$53.43

38

TIRE, REAR | 1; 3.25-18

65100-18010

Unavailable

38

TIRE, REAR | 2; 3.75-18 RED RIBON TO 65100-18211

65100-18510

Unavailable

38

TIRE, REAR | R,J; 3.50-18 TO 65100-18670

65100-18211

Unavailable

38

SPOKE SET,REAR | Includes Item(s) 39 - 41 This part replaces 65320-15818.

65320-15819

Unavailable

39

SPOKE OUTER | OO:3.2, L:150 a:80, H:10.5

65322-15020

Unavailable

40

SPOKE, INNER | OO:3.2, L:150.5 a:95.5, H:8.5

65321-15020

Unavailable

41

NIPPLE, SPOKE

65325-03020

Unavailable

42

BALANCER WHEEL (15G) | (0~3) This part replaces 55411-11000.

55411-26G00

$7.73

43

BALANCER WHEEL (30G) | (0~3) This part replaces 55412-11000.

55413-41F00

$7.50

44

VALVE, INNER TUBE

55750-01000

Unavailable
