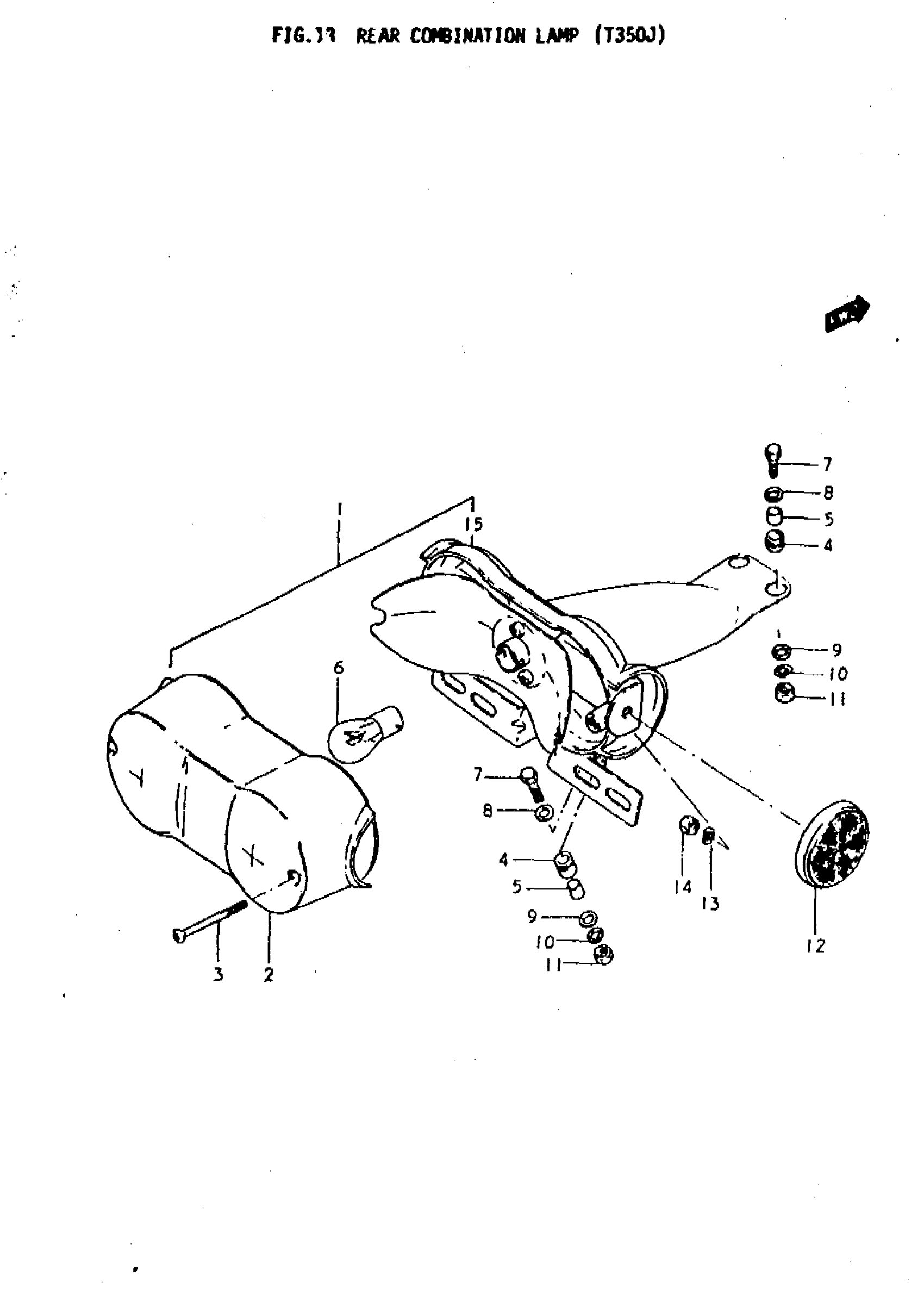

Suzuki T3501 (1972) REAR COMBINATION LAMP (T350J) Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION | J; TO 35710-15602; Includes Item(s) 2 - 5

35710-15062-999

Unavailable

2

TAIL LAMP LENS | J This part replaces 35712-27690.

35712-27671

Unavailable

3

SCREW | J This part replaces 02111-04508.

02112-0450A

$1.51

4

CUSHION | J

35765-15010

Unavailable

5

SPACER | J This part replaces 35766-15010.

35766-37110

$5.28

6

BULB (12V,23W/8W) | 12V, 32/4CP, US#1034 This part replaces 09471-12002.

09471-12035

$4.49

7

BOLT, GEAR SHIFT ARM | J; 6x27 This part replaces 09100-06039.

01500-0625A

$1.78

8

WASHER (6.5X18X1.6) | 6; 5x20x1.6 This part replaces 09160-06070.

09160-06109

$1.49

9

WASHER This part replaces 08322-21068.

08322-01067

$2.13

10

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

11

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

12

REFLEX REFLECTOR, REAR

35970-31610

Unavailable

13

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

14

NUT This part replaces 08311-11058.

08310-00057

$1.84

15

HOUSING, REAR COMBINATION LAMP

35715-29690

Unavailable
