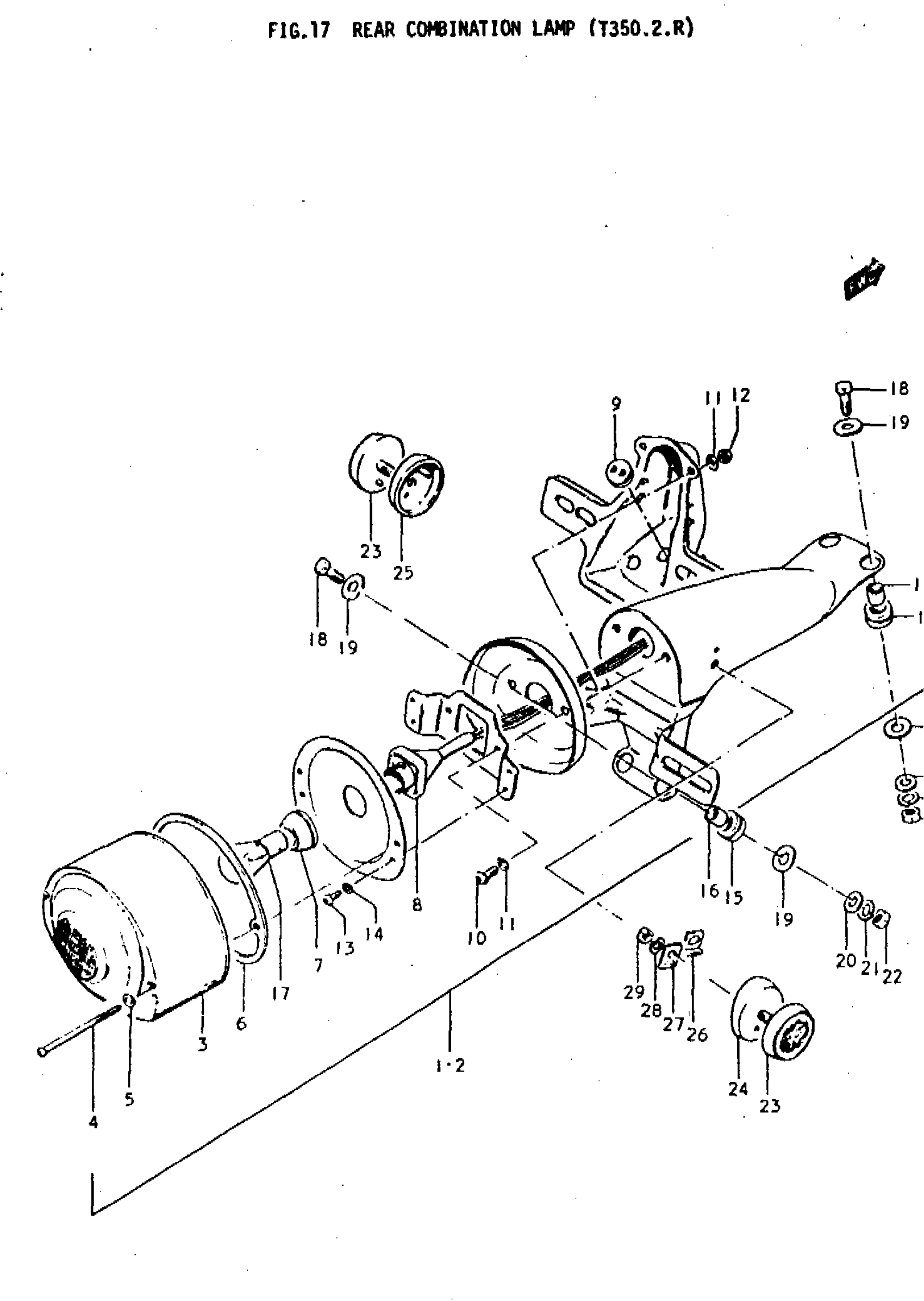

Suzuki T3501 (1972) REAR COMBINATION LAMP (T350.2.R) Diagram

LAMP ASSY, REAR COMBINATION | 1; TO 35000-05834-999

35710-05610-999

Unavailable

LAMP ASSY, REAR COMBINATION | 2,R; TO 35000-15826-999; Includes Item(s) 3 - 16

35710-15601-999

Unavailable

LENS, RR COMB L | FROM 35712-15011 This part replaces 35712-22610.

35712-06112

$35.16

SCREW 4X55 This part replaces 02111-04558.

02112-04558

$1.65

WASHER

35727-03010

Unavailable

GASKET

35713-15010

Unavailable

BUFFER, BULB

35716-15010

Unavailable

SOCKET | 1; FROM 35718-05610

35718-05611

Unavailable

SOCKET | 2,R

35718-15011

Unavailable

GROMMET | 1

35728-18610

Unavailable

SCREW

02111-05128

Unavailable

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

NUT | 1 This part replaces 08311-11058.

08310-00057

$1.84

SCREW

02111-04088

Unavailable

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

CUSHION, BRACKET | 12,R

35765-15010

Unavailable

SPACER | 12,R This part replaces 35766-15010.

35766-37110

$5.28

BULB (12V,23W/8W) | 12V, 32/4CP, US#1034 This part replaces 09471-12002.

09471-12035

$4.49

BOLT | 12,R This part replaces 01111-06208.

01500-06207

$2.28

WASHER (6.5X20X1.6) | 1; 6.5x20x1.62,R; 6.5x20x1.6 This part replaces 09160-06020.

09160-06066

$1.89

WASHER | 12,R This part replaces 08322-21068.

08322-01067

$2.13

LOCK WASHER | 12,R This part replaces 08321-21068.

08321-01067

$2.13

.NUT | 12,R This part replaces 08311-11068.

08310-00067

$2.13

REFLEX REFLECTOR, REAR

35970-18602

Unavailable

SPACER, RH REFLECTOR | 1

35995-18600

Unavailable

SPACER, RH REFLECTOR | 2,R

35995-15600

Unavailable

SPACER, LH REFLECTOR | 2

35996-18600

Unavailable

SPACER, LH REFLECTOR | R,J

35996-15600

Unavailable

WASHER, REFLECTOR | 2

35997-18600

Unavailable

WASHER, REFLECTOR | R,J

35997-15600

Unavailable

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

NUT This part replaces 08311-11058.

08310-00057

$1.84
