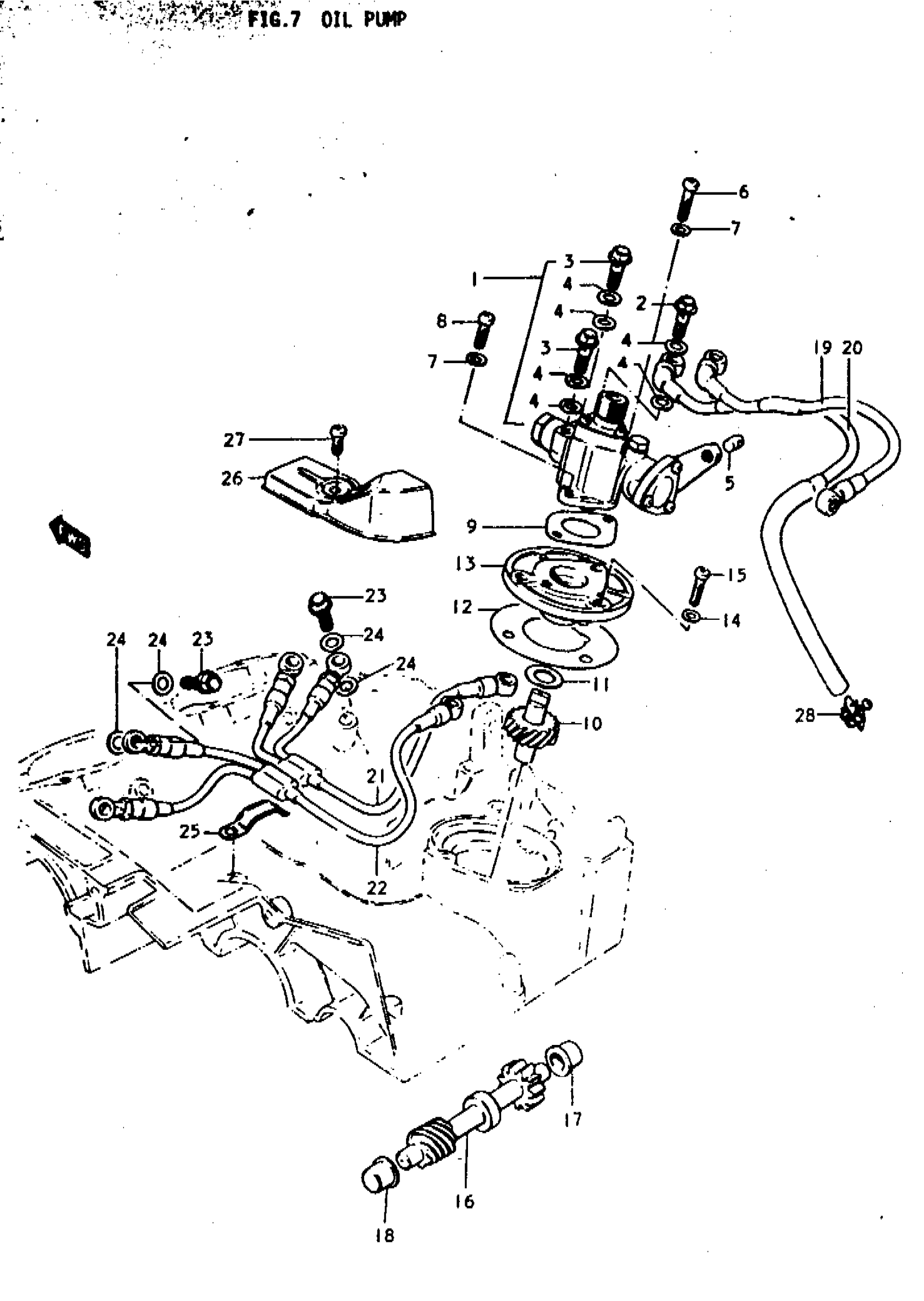

Suzuki T3501 (1972) OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY, OIL | FROM 16001-18803; Includes Item(s) 2 - 5

16100-18010

Unavailable

2

UNION BOLT

09360-06003

$3.76

3

UNION BOLT

09360-06005

Unavailable

4

GASKET | 6.2x12x1.5 This part replaces 09168-06002.

09168-06004

$1.49

5

TERMINAL, CABLE

13683-51010

Unavailable

6

SCREW

02111-06208

Unavailable

7

WASHER | 1 This part replaces 08322-21068.

08322-01067

$2.13

8

SCREW This part replaces 02111-06128.

02112-06127

$1.84

9

GASKET, OIL PUMP

16731-11000

Unavailable

10

SHAFT, OIL PUMP DRIVEN

16331-18000

Unavailable

11

WASHER, CLUTCH RELEASE This part replaces 08211-10201.

09181-10195

$1.99

12

GASKET, GEAR CASE

16381-18000

Unavailable

13

CASE, OIL PUMP GEAR

16341-18000

Unavailable

14

WASHER | 1 This part replaces 08322-21068.

08322-01067

$2.13

15

SCREW

02111-06168

Unavailable

16

SHAFT, OIL PUMP DRIVE

16320-18000

Unavailable

17

BUSHING, DRIVE SHAFT RH

09301-10002

Unavailable

18

BUSHING, DRIVE SHAFT LH

09319-10006

Unavailable

19

HOSE, OIL INLET | 1,2

16810-18030

Unavailable

20

HOSE, OIL INLET | R,J

16810-18630

Unavailable

21

HOSE, OIL OUTLET RH

16820-18031

Unavailable

22

HOSE, OIL OUTLET LH

16840-18031

Unavailable

23

UNION BOLT, OIL HOSE

09360-06003

$3.76

24

GASKET | 6.2x12x1.5 This part replaces 09168-06002.

09168-06004

$1.49

25

CLAMP | FROM 09403-00007 This part replaces 09403-07301.

09403-07309

Unavailable

26

COVER, OIL HOSE

11441-18000

Unavailable

27

SCREW

02111-05128

Unavailable

28

OIL HOSE CLAMP | R,J; FROM 09400-00107 This part replaces 09400-10301.

09400-10302

Unavailable
