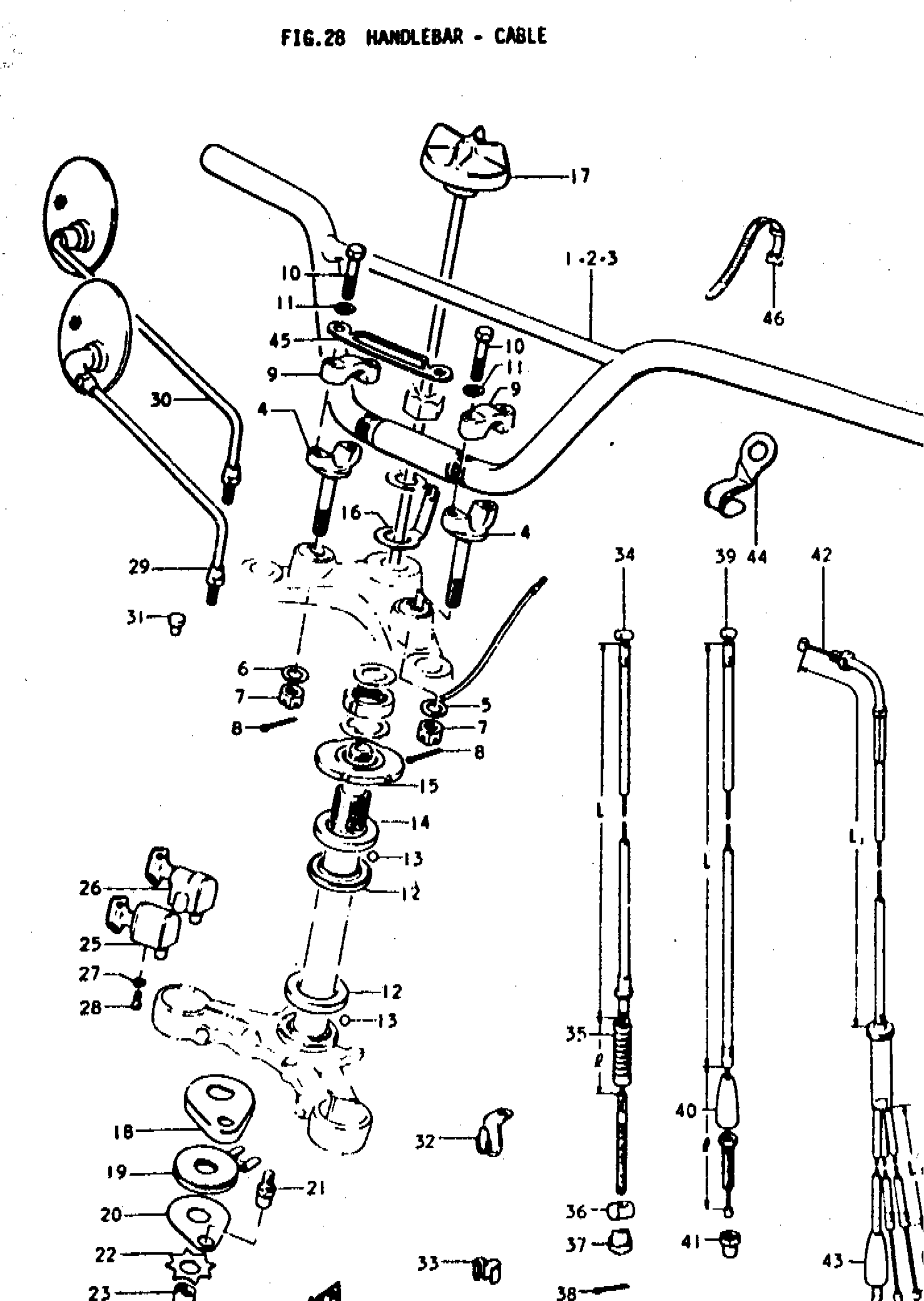

Suzuki T3501 (1972) HANDLEBAR - CABLE Diagram

#

Description
Price

1

HANDLEBAR | 1; FROM 56110-18100 This part replaces 56110-15102.

56111-15103

Unavailable

2

HANDLEBAR | 2 This part replaces 56110-15102.

56111-15103

Unavailable

3

HANDLEBAR | R,J This part replaces 56110-15600.

56111-15103

Unavailable

4

CLAMP, HANDLEBAR LOWER | FROM 56221-15000

56221-33000

Unavailable

5

PLATE, HANDLEBAR EARTH | 1,2

56290-18000

Unavailable

6

WASHER, HANDLEBAR CLAMP | 1,2; 10.5x28x2.3R,J; 10.5x28x2.3

09160-10035

$1.78

7

NUT This part replaces 08314-11108.

08314-3110A

$1.99

8

COTTER PIN

04111-20258

Unavailable

9

CLAMP, HANDLEBAR UPPER This part replaces 56211-15000.

56211-33000

Unavailable

10

BOLT This part replaces 01221-08307.

01204-08307

$1.99

11

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

12

RACE, STEERING INNER | FROM 51611-16500

51611-33002

$13.81

13

STEEL BALL This part replaces 06111-08004.

06111-08003

$1.49

14

RACE, STEERING OUTER | TO 51621-08001

51621-08000

Unavailable

15

NUT, STEERING STEM | FROM 51631-08010

51631-08000

Unavailable

16

STOPPER, DAMPER KNOB

51744-08100

Unavailable

17

KNGB, HANDLE DAMPER

51730-15000

Unavailable

18

PLATE, DAMPER UPPER

51721-08100

Unavailable

19

PLATE, DAMPER CORK

51710-08100

Unavailable

20

PLATE, DAMPER LOWER

51722-08100

Unavailable

21

BOLT, DAMPER LOCK

51781-08100

Unavailable

22

SPRING, DAMPER ADJUST

51742-08100

Unavailable

23

HUB, DAMPER SLEEVE

51741-08100

Unavailable

24

CLIP, HANDLE DAMPER

09385-06001

$3.10

25

LOCK ASSY, STEERING | 1,2; TO 50000-25831

51900-03012

Unavailable

26

LOCK ASSY, STEERING | R,J; TO 50000-25837

51900-19010

Unavailable

27

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

28

SCREW This part replaces 02111-05108.

02112-05107

$1.49

29

MIRROR ASSY,REA | 1; REVERSIBLE This part replaces 56500-19600.

56500-35611

$189.20

29

MIRROR ASSY,REA | 2; FROM 56500-19600 This part replaces 56500-35011.

56500-35611

$189.20

30

MIRROR ASSY,RR | R,J This part replaces 56500-31010.

56500-23412

$70.29

30

MIRROR ASSY,RR | R,J This part replaces 56600-31010.

56600-23412

$82.68

31

PLUG | 1 This part replaces 09250-06001.

09250-06005

$2.15

32

CLIP, CABLE | FROM 09403-00031

09403-11305

Unavailable

33

CLIP, CABLE

09408-00002

$2.30

34

NO DESCRIPTION AVAILABLE | L:1185, l:56 FROM 58100-18000; Includes Item(s) 35 - 37 This part replaces 58100-11720.

58100-11721

Unavailable

35

BOOT, CABLE

09287-05001

Unavailable

36

.PIN (13X18) This part replaces 09209-13003.

09209-13018

$3.42

37

.NUT This part replaces 09150-06001.

09150-06010

$3.10

38

COTTER PIN

04111-20128

Unavailable

39

CABLE,CLUTCH | L:1080, l:118 FROM 58200-15100; Includes Item(s) 40 - 41 This part replaces 58200-15101.

58200-33601

Unavailable

40

BOOT, CABLE

09287-10001

Unavailable

41

NUT This part replaces 08312-11088.

08310-00087

$2.13

42

CABLE ASSY, THROTTLE | 1,2; L1:650, L2:260 l:87 This part replaces 58300-18000.

58300-18600

Unavailable

42

CABLE ASSY, THROTTLE | R,J; L1:650, L2:280 l:87; Includes Item(s) 43

58300-18600

Unavailable

43

SEAL,DUST This part replaces 09287-07002.

09287-07006

$2.30

44

NO DESCRIPTION AVAILABLE | 2 This part replaces 09403-00065.

09403-08307

Unavailable

45

GUIDE, CABLE | R,J

58621-28000

Unavailable

46

CLAMP, SWITCH HARNESS | R,J; FROM 09410-00030

09407-12402

$3.04
