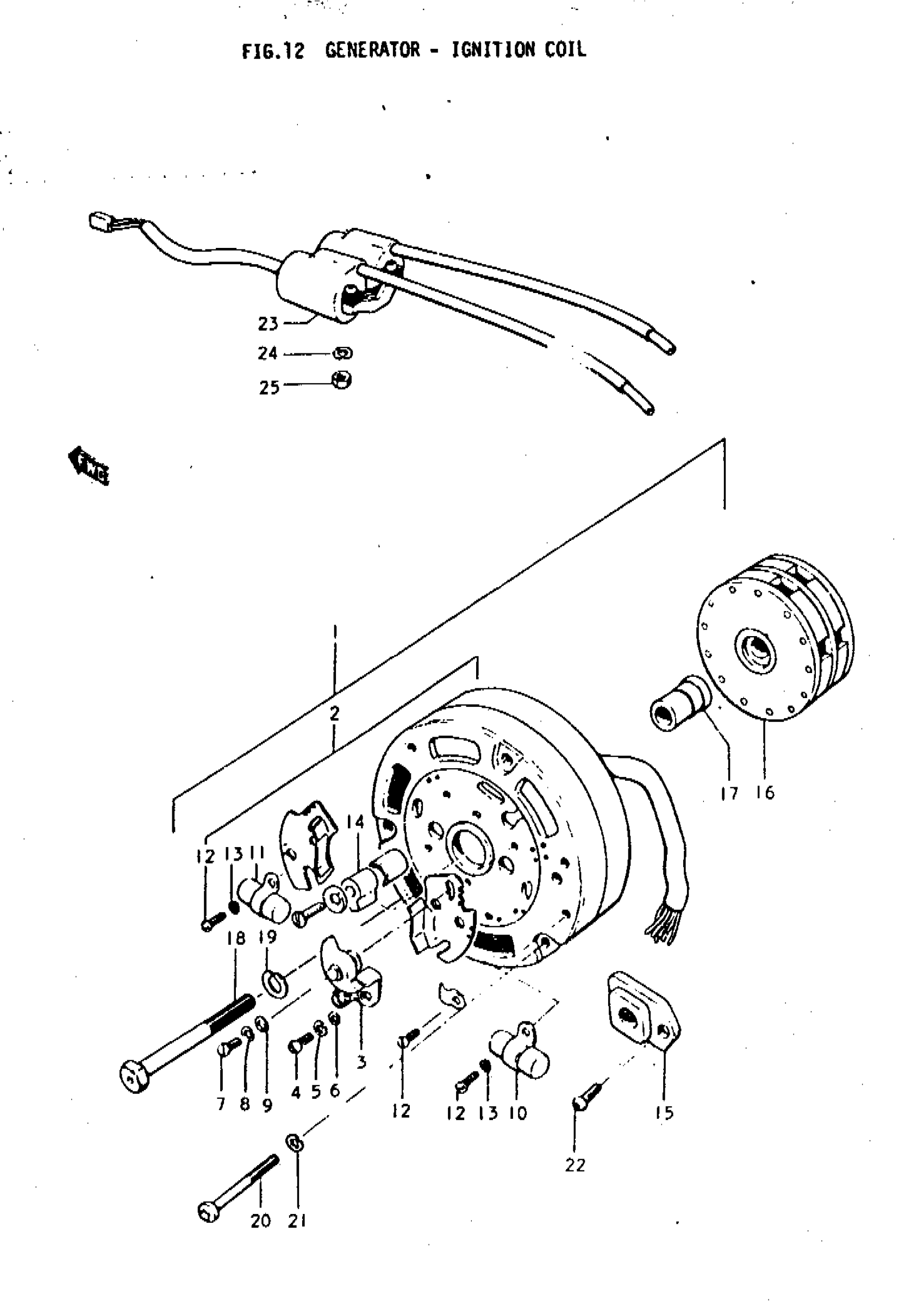

Suzuki T3501 (1972) GENERATOR - IGNITION COIL Diagram

#

Description
Price

1

AC GENERATOR ASSY | 1; TO 31400-18521 This part replaces 31400-18020.

31400-18524

Unavailable

1

AC GENERATOR ASSY | 2,R,J; TO 31400-18523 WITH 08321-21088; Includes Item(s) 2 - 19 This part replaces 31400-18521.

31400-18524

Unavailable

2

STATOR ASSY | 1; TO 31401-18521 This part replaces 31401-18021.

31401-18524

Unavailable

2

STATOR ASSY | 2,R,J; TO 31401-18524

31401-18521

Unavailable

3

POINT ASSY, CONTACT

31440-15020

Unavailable

4

SCREW This part replaces 02311-04088.

09125-04001

Unavailable

5

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

6

WASHER This part replaces 08322-21048.

08322-01047

$1.86

7

SCREW This part replaces 02311-04088.

09125-04001

Unavailable

8

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

9

WASHER This part replaces 08322-21048.

08322-01047

$1.86

10

CONDENSER, RH | FROM 31641-15021 TO 31641-18522 This part replaces 31641-18521.

31641-18522

Unavailable

11

CONDENSER, LH | TO 31642-18521 This part replaces 31642-15022.

31642-18522

Unavailable

12

SCREW

02311-04068

Unavailable

13

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

14

FELT, OIL

31638-15020

Unavailable

15

GROMMET, WIRING HARNESS

31485-15020

Unavailable

16

ROTOR

31710-18021

Unavailable

17

CAM, CONTACT BREAKER

31724-15021

Unavailable

18

BOLT | FROM 31791-15020 This part replaces 01122-08658.

01500-0865B

$3.49

19

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

20

6X50 CROSS SCRE This part replaces 02112-06508.

02112-06507

$1.99

21

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

22

SCREW

02111-06108

Unavailable

23

NO DESCRIPTION AVAILABLE This part replaces 33410-15020.

33410-15021

Unavailable

24

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

25

NUT This part replaces 08312-11088.

08310-00087

$2.13
