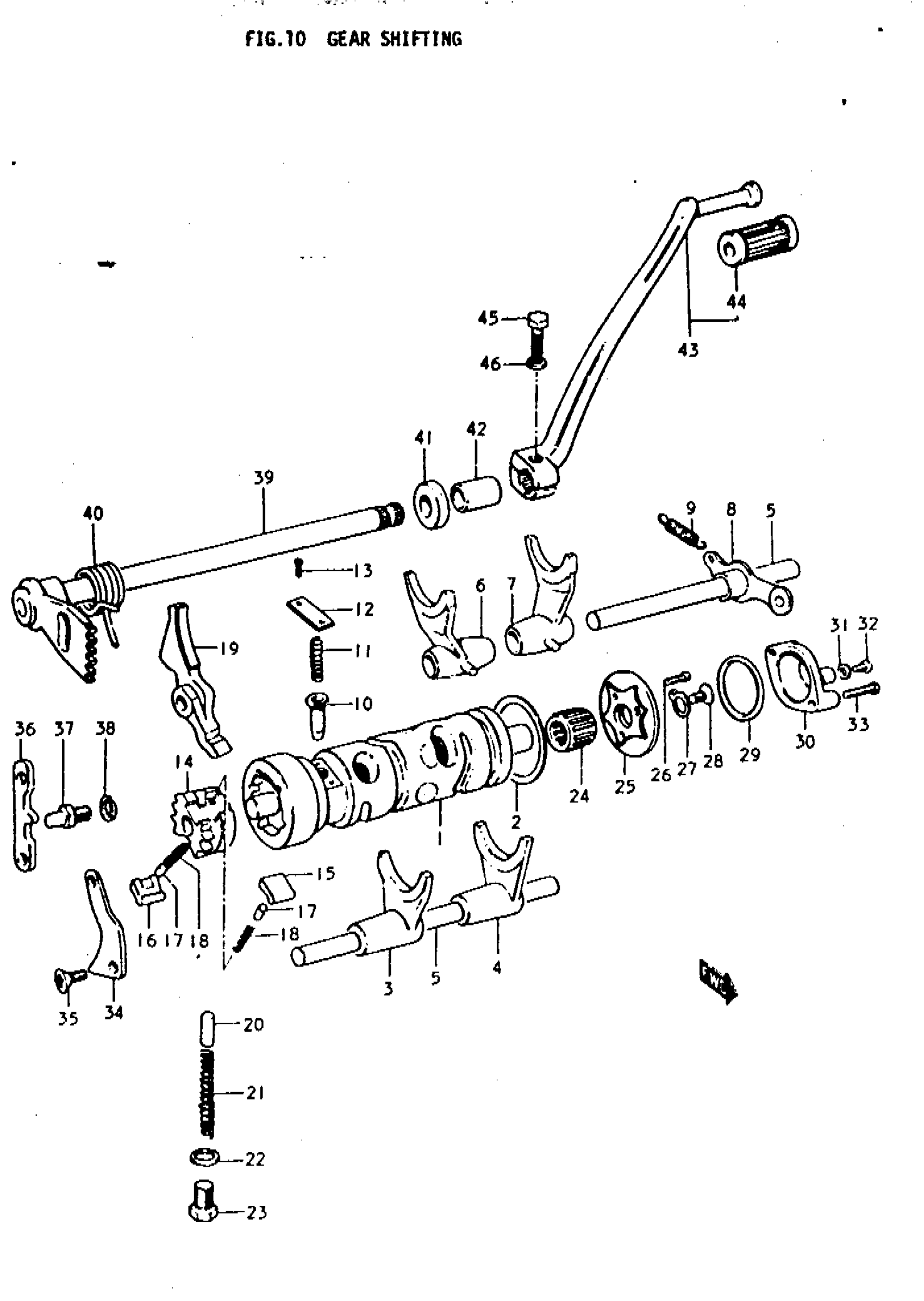

Suzuki T3501 (1972) GEAR SHIFTING Diagram

#

Description
Price

1

CAM, GEAR SHIFTING | TO 25310-18003 WITH 02122-06168 This part replaces 25310-18002.

25310-18004

Unavailable

2

THRUST WASHER, SHIFTING CAM | 40x45x1

09160-40001

Unavailable

3

FORK, 5TH DRIVE GEAR SHIFTING | TO 25241-18000 This part replaces 25211-18000.

25241-18000

Unavailable

4

FORK, 5TH DRIVE GEAR SHIFTING

25241-18000

Unavailable

5

SHAFT, SHIFTING FORK

25411-18000

Unavailable

6

FORK, 3RD DRIVEN GEAR SHIFTING

25221-18000

Unavailable

7

FORK, 5TH DRIVEN GEAR SHIFTING

25231-18000

Unavailable

8

STOPPER, SHIFTING CAM

25350-18000

Unavailable

9

SPRING, SHIFTING CAM STOPPER | TO 09443-09006

09443-09001

Unavailable

10

STOPPER, SHIFTING NEUTRAL

25351-18001

Unavailable

11

SPRING, NEUTRAL STOPPER | ID:3.5, D.:1, L:25

09440-05011

$1.92

12

HOLDER, STOPPER SPRING

25354-18000

Unavailable

13

SCREW

02111-04088

Unavailable

14

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-11000.

25322-31310

$26.93

15

PAWL, GEAR SHIFT NO.1 This part replaces 25323-11000.

25323-34201

$7.22

16

PAWL, GEAR SHIFT NO.2 This part replaces 25324-11000.

25324-34201

$7.22

17

ROLLER, SHIFTING PAWL | OD:5, L:8

09261-05003

$1.54

18

SPRING, PAWL ROLLER | ID:3.5, D.:0.5 L:10.5

09440-04003

$1.54

19

SHOE, TRANSMISSION BRAKE | FROM 24640-18000 TO 24641-33031 This part replaces 24640-33000.

24641-33031

Unavailable

20

TAPPET, BRAKE SHOW

24631-18010

Unavailable

21

SPRING, BRAKE SHOW TAPPET | 7x0.6x27

09440-07017

Unavailable

22

GASKET, BRAKE PLUG

09168-10002

$2.13

23

PLUG, TRANSMISSION BRAKE

09247-10001

$2.20

24

BEARING, SHIFTING CAM | 16x22x16

09263-16006

Unavailable

25

PLATE, SHIFTING CAM STOPPER | FROM 25381-20000

25381-20001

Unavailable

26

SCREW

02121-04128

Unavailable

27

CONTACT, GEAR SHIFTING SWITCH | FROM 37711-05100

37711-05101

$4.21

28

SCREW

02121-06128

Unavailable

29

O RING, SHIFTING SWITCH | ID:27.7, D.:1.9

09280-28002

$2.08

30

SWITCH, GEAR SHIFTING

37721-15002

Unavailable

31

WASHER This part replaces 08322-21038.

08322-01037

$1.93

32

SCREW This part replaces 02111-03048.

02112-03047

$2.15

33

SCREW

02111-05208

Unavailable

34

LIFTER, SHIFTING PAWL

25331-11001

$6.38

35

SCREW

02121-06128

Unavailable

36

GUIDE, GEAR SHIFTING CAM

25341-18000

Unavailable

37

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.48

38

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

39

NO DESCRIPTION AVAILABLE This part replaces 25510-18000.

25510-18X00

Unavailable

40

SPRING, SHIFTING SHAFT

09444-26001

$5.88

41

OIL SEAL (12X22X9) | 11x22x9 This part replaces 09285-12002.

09285-12006

$6.32

42

CUSHION, SHIFTING SHAFT

09320-13001

Unavailable

43

LEVER ASSY, GEAR SHIFTING | TO 25600-18001; Includes Item(s) 44 This part replaces 25600-18000.

25600-18001

Unavailable

44

.RUBBER,GEAR SHIFT PEDAL | TO 25652-16500 This part replaces 25652-03201.

25652-16510

$3.74

45

BOLT, REAR This part replaces 01122-08208.

01500-08207

$2.53

46

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13
