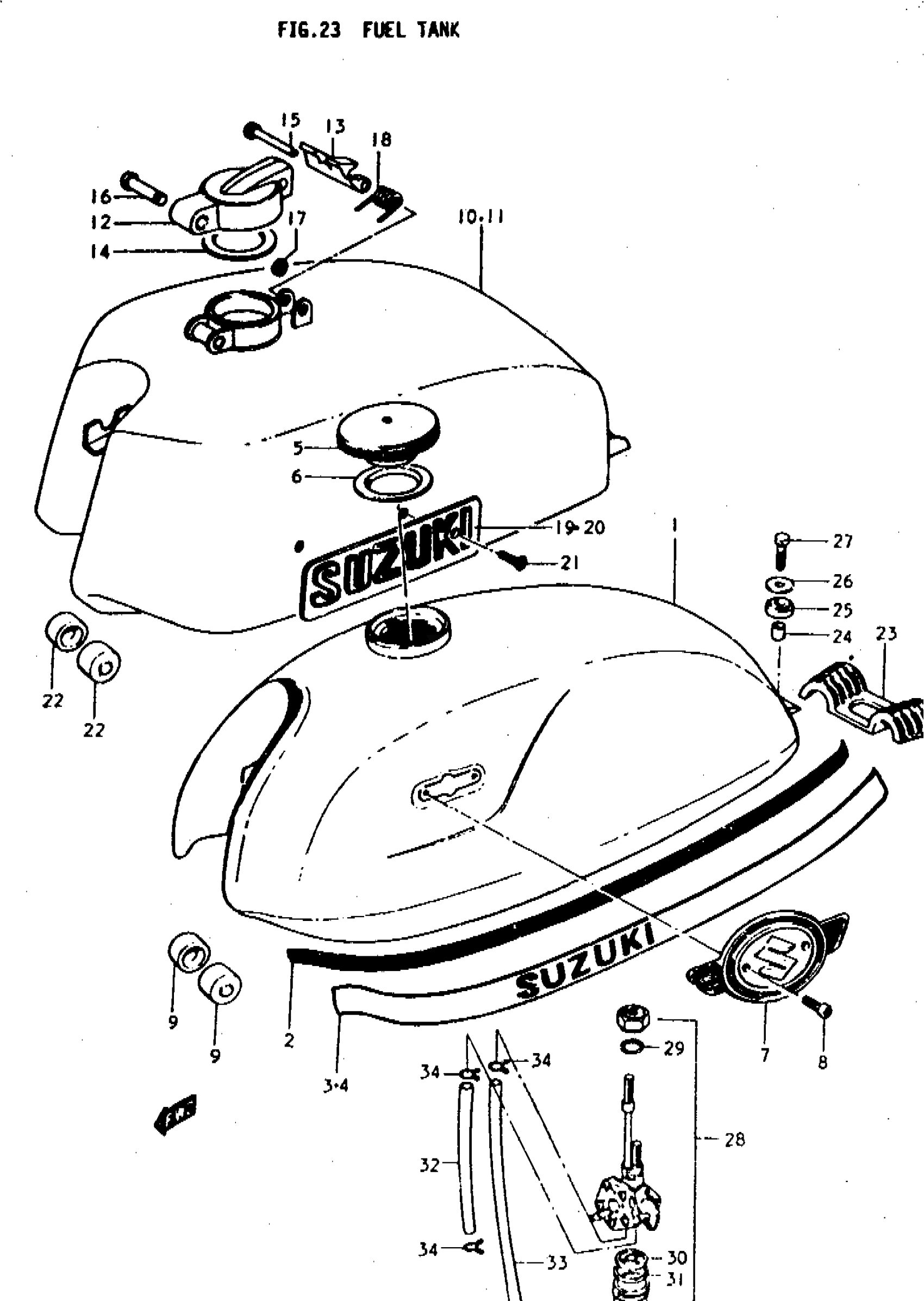

Suzuki T3501 (1972) FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL | 1; TO 44110-18300-737

44110-18300-654

Unavailable

1

TANK, FUEL | 1; TO 44110-18300-737

44110-18300-655

Unavailable

1

TANK, FUEL | 2; TO 44110-18300-737

44110-18300-626

Unavailable

1

TANK, FUEL | 2; TO 44110-18300-737

44110-18300-627

Unavailable

2

TAPE, STRIPING | 1; L:3000, W:10 RED

99000-78130

Unavailable

2

TAPE, STRIPING | 1; L:3000, W:10 WHITE

99000-78010

Unavailable

3

TAPE, STRIPING RH | 2; TO 68100-18870

68115-18500

Unavailable

4

TAPE, STRIPING LH | 2; TO 68100-18870

68125-18500

Unavailable

5

CAP, FUEL TANK | 1,2 This part replaces 44210-11000.

44210-36200

Unavailable

6

GASKET, FUEL TANK | 1,2

44248-11000

Unavailable

7

FUEL TANK EMBLEM | 1,2; TO 68111-22200 This part replaces 68111-18100.

68111-22200

Unavailable

8

SCREW, TANK EMBLEM | 1,2; 4x6

09125-04108

Unavailable

9

CUSHION, TANK FRONT | 1,2

09329-10005

$2.11

10

NO DESCRIPTION AVAILABLE | R; SEE NOTE This part replaces 44110-18600-564.

44110-18671-737

Unavailable

10

TANK, FUEL | R; SEE NOTE

44110-18600-571

Unavailable

11

TANK, FUEL | R; NOTE

44110-18620-524

Unavailable

11

TANK, FUEL | R; SEE NOTE

44110-18620-541

Unavailable

12

CAP, FUEL TANK | R,J; TO 44200-33010; Includes Item(s) 13 - 18

44200-15100

Unavailable

13

LEVER | R,J

44246-15100

Unavailable

14

GASKET | R,J

44248-15100

Unavailable

15

PIN | R,J

09208-03001

Unavailable

16

PIN | R,J

09208-03002

Unavailable

17

E RING | R,J

09383-02003

Unavailable

18

SPRING | R,J

09444-06002

Unavailable

19

EMBLEM, FUEL TANK | R

68111-18600

Unavailable

20

EMBLEM, FUEL TANK | J

68111-15700

Unavailable

21

SCREW | R,J

02131-03068

Unavailable

22

CUSHION | R,J This part replaces 09329-10007.

09329-10026

$2.23

23

CUSHION, TANK REAR A

44541-18000

Unavailable

24

SPACER (8.5X12X11) | 9x12x11 This part replaces 09180-08001.

09180-08189

$2.58

25

CUSHION, TANK REAR B | 12x30x7.5

09320-12009

$2.93

26

WASHER, TANK REAR | 8.5 FROM 09160-08002

09160-08006

Unavailable

27

BOLT

01121-08258

Unavailable

28

COOK ASSY, FUEL | FROM 44300-15150 TO 44300-18450; Includes Item(s) 29 - 31 This part replaces 44300-15051.

44300-18450

Unavailable

29

GASKET | 14x22x2

44348-10050

Unavailable

30

FILTER | FROM 44344-15050

44344-15080

Unavailable

31

GASKET, FILTER CUP | 19.5x25.5x2

44346-10050

Unavailable

32

.HOSE | USE BY CUTTING 180MM. FROM 09343-05018 This part replaces 09343-05135.

09352-50006-600

$7.48

33

.HOSE | USE BY CUTTING 135MM. FROM 09343-05025 This part replaces 09343-05135.

09352-50006-600

$7.48

34

CLIP, FUEL HOSE | FROM 09386-08001

09401-08401

$1.54
