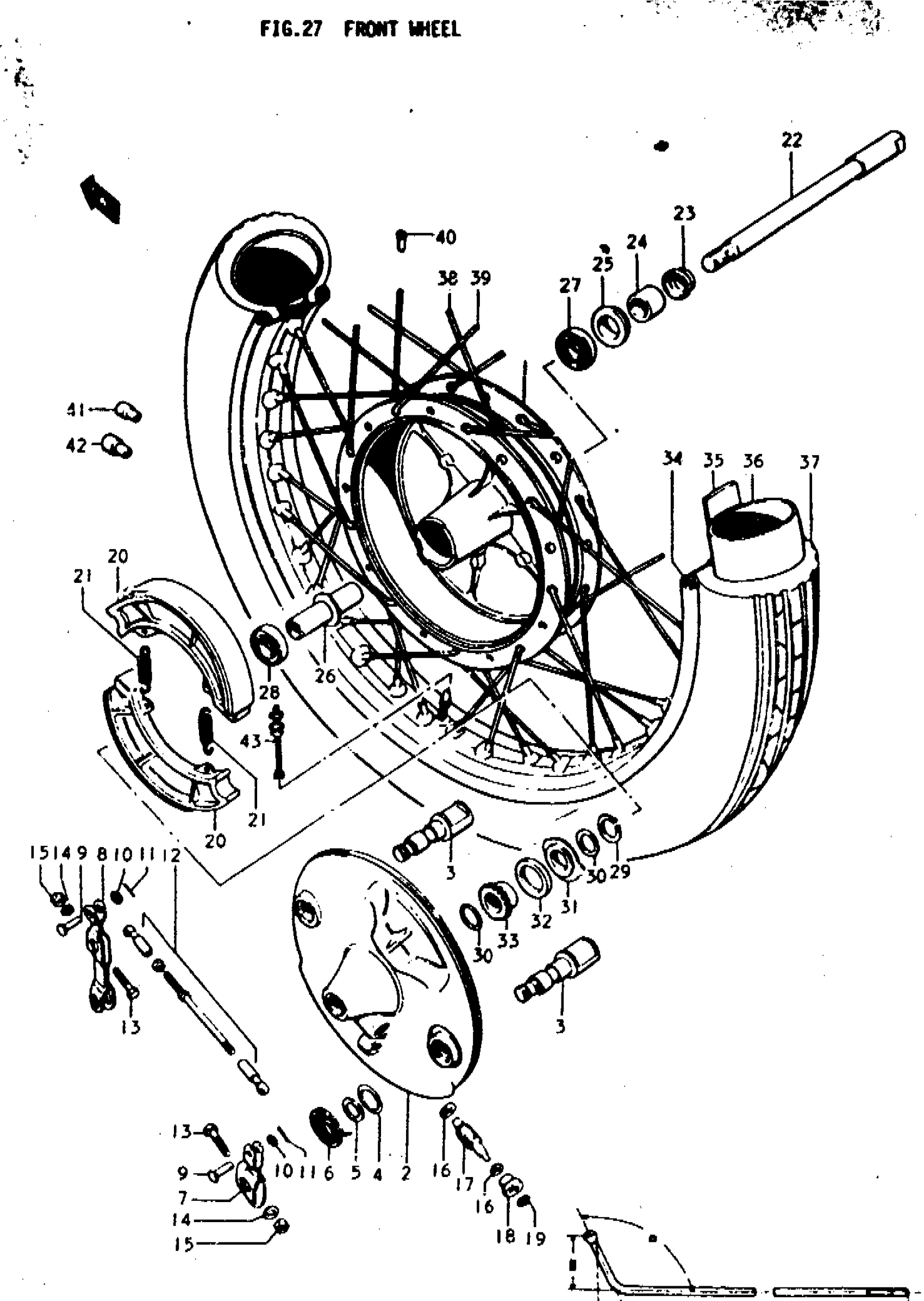

Suzuki T3501 (1972) FRONT WHEEL Diagram

#

Description
Price

1

DRUM, FRONT HUB

54110-11000

Unavailable

2

PANEL, FRONT HUB | TO 54210-33000 USED WITH 09250-10006

54210-11001

Unavailable

3

CAM, BRAKE | FROM 54440-11002 This part replaces 54440-11003.

64440-38A00

Unavailable

3

CAM, BRAKE | J This part replaces 54440-33001.

54440-33002

Unavailable

4

O RING (ID:14.8,D:2.40) | ID:14.8, D.:2.4 This part replaces 09280-15001.

09280-15003

$1.76

5

WASHER | 15x24x1.6 This part replaces 09160-15001.

09160-15048

$2.56

6

SPRING This part replaces 09448-30001.

09448-30001-XC0

Unavailable

7

LEVER, BRAKE CAM 1ST

54461-11000

Unavailable

8

LEVER, BRAKE CAM 1ST

54450-11000

Unavailable

9

PIN, CAM LEVER

09200-06001

Unavailable

10

WASHER This part replaces 08322-21068.

08322-01067

$2.13

11

PIN This part replaces 04111-12108.

04111-1210A

$1.50

12

BRAKE LEVER ROD SET This part replaces 54400-11835.

54400-18840

Unavailable

13

BOLT, ADJUSTER | 6x25 This part replaces 09100-06050.

09100-06150

$2.30

14

WASHER This part replaces 08322-21068.

08322-01067

$2.13

15

.NUT This part replaces 08311-11068.

08310-00067

$2.13

16

WASHER,5.1X9X0. This part replaces 09160-05001.

09160-05001-A05

$1.87

17

PINION, SPEEDOMETER

54621-11000

Unavailable

18

BUSH This part replaces 54632-11020.

54632-49200

Unavailable

19

OIL SEAL, PINION | 4.8x10x3

09289-06001

$4.58

20

SHOE, BRAKE | TO 54410-11002 USED WITH 54440-33001

54410-11001

Unavailable

20

NO DESCRIPTION AVAILABLE | J This part replaces 54410-11002.

54410-11020

Unavailable

21

SPRING, BRAKE SHOE

55420-30000

$4.48

22

AXLE, FRONT | 14x22

54711-15000

Unavailable

23

COVER, HUB DRUM DUST | 22x33x6

54892-11000

Unavailable

24

SPACER, AXLE | 15x22x25.4

09180-15001

Unavailable

25

OIL SEAL, HUB DRUM | 22x33x6

09284-22001

Unavailable

26

SPACER, HUB BEARING

54730-11000

Unavailable

27

BEARING

08113-60020

$16.01

28

BEARING, LH This part replaces 08143-62020.

08143-62027

$16.01

29

CIRCLIP This part replaces 08331-11229.

08331-31229

$2.48

30

THRUST WASHER, GEAR | 22.5x27x1

09160-22001

$2.47

31

DRIVER This part replaces 54660-11030.

54660-11031

$12.67

32

SEAL,OIL(26X38X | 26x38x4 This part replaces 09285-26001.

09285-26005

Unavailable

33

GEAR, SPEEDOMETER This part replaces 54611-11000.

54611-11001

Unavailable

34

RIM, WHEEL | 1.60x18

55311-11020

Unavailable

35

IN TUBE PROTECT This part replaces 55261-11010.

55261-26F10

$4.39

36

TUBE ASSY, WHEEL INNER | 1; 3.00-18 This part replaces 65200-18010.

65200-44AA0

$53.43

36

TUBE ASSY,WHEEL | 2,R,J; 3.00-18 This part replaces 55200-11601.

55200-26F01

$31.27

37

TIRE, FRONT | 1,2; 3.00-18

55100-18010

Unavailable

37

TIRE, FRONT | 2; 3.00-18 RED RIBON

55100-18510

Unavailable

37

NO DESCRIPTION AVAILABLE | R,J; 3.00-18 TO 55100-18600 This part replaces 55100-18012.

55100-18600

Unavailable

37

SPOKE SET,REAR | Includes Item(s) 38 - 40 This part replaces 65320-15818.

65320-15819

Unavailable

38

SPOKE, INNER | OD:3.2, L:150.5 A:95.5*, H:8.5

65321-15020

Unavailable

39

SPOKE, OUTER | OD:3.2, L:150 A:80*, H:10.5

65322-15020

Unavailable

40

NIPPLE, SPOKE

65325-03020

Unavailable

41

BALANCER WHEEL (15G) | (0~2) This part replaces 55411-11000.

55411-26G00

$7.73

42

BALANCER WHEEL (30G) | (0~2) This part replaces 55412-11000.

55413-41F00

$7.50

43

VALVE, INNER TUBE

55250-01000

Unavailable
