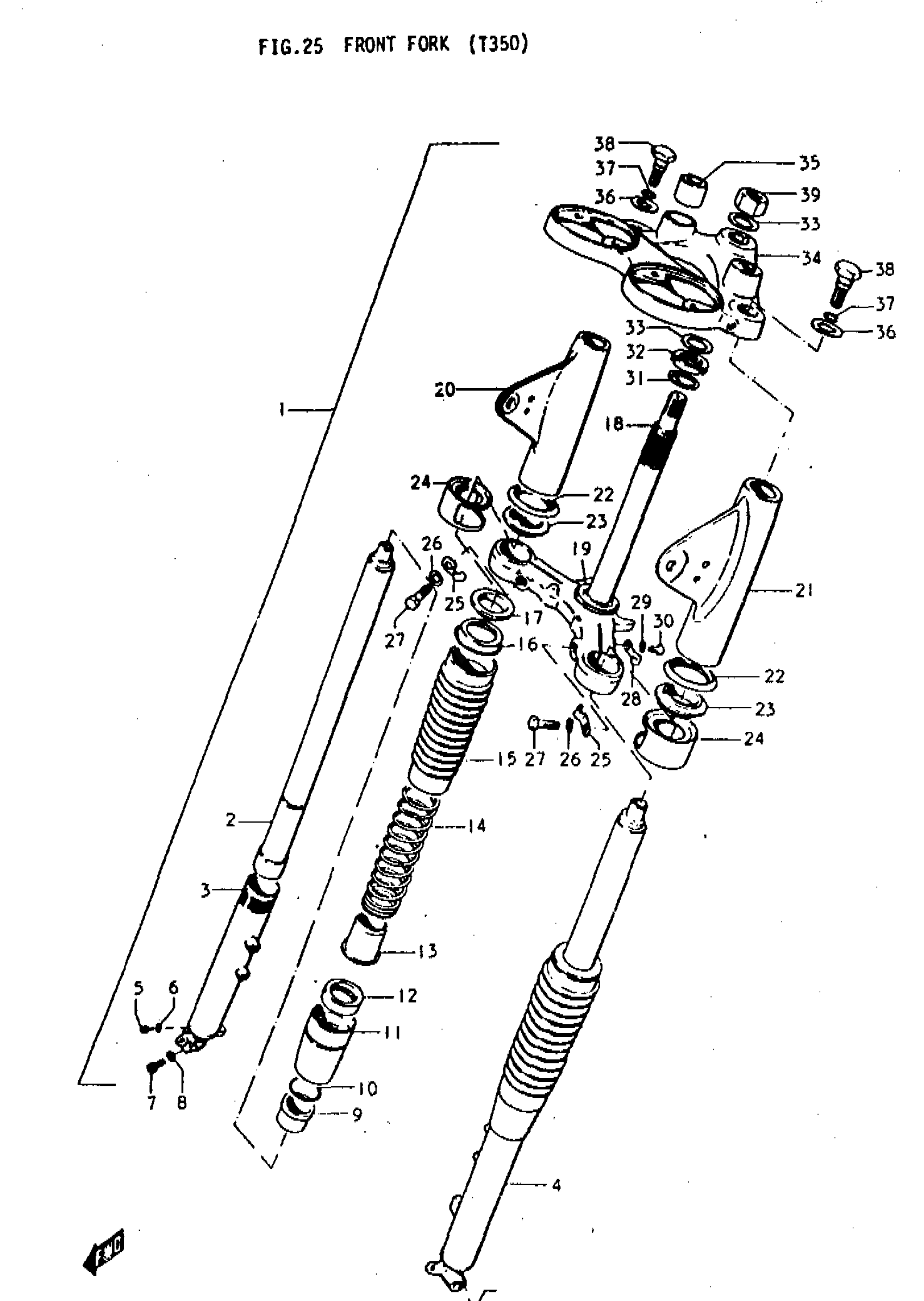

Suzuki T3501 (1972) FRONT FORK (T350) Diagram

#

Description
Price

1

FORK ASSY, FRONT | Includes Item(s) 2 - 39

51100-18600-019

Unavailable

2

INNER TUBE

51110-11010

Unavailable

3

OUTER TUBE, RH | CHROME-PLATED

51130-18010

Unavailable

4

OUTER TUBE, LH | CHROME-PLATED

51140-18010

Unavailable

5

PLUG, DRAIN

51182-03621

Unavailable

6

GASKET, DRAIN PLUG | 4.2x7.3x1.5

51183-03010

$2.07

7

BOLT

01121-08258

Unavailable

8

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

9

GUIDE, INNER TUBE

51152-11010

Unavailable

10

O RING, OUTER TUBE | 39.3x45x3

51154-11010

Unavailable

11

NUT, OUTER TUBE

51150-15010

Unavailable

12

OIL SEAL | 34x46x10 This part replaces 51153-11010.

51153-16511

Unavailable

13

DUST SEAL, FORK

51173-11010

Unavailable

14

SPRING, FORK | FROM 51171-11010

51171-11600

Unavailable

15

BOOT, SPRING COVER

51571-11010

Unavailable

16

GUIDE, SPRING A

51573-11010

Unavailable

17

GUIDE, SPRING B

51172-11010

Unavailable

18

STEM, STEERING

51410-18010

Unavailable

19

RACE, STEERING OUTER | TO 51621-08001

51621-08000

Unavailable

20

BRACKET, HEADLAMP RH

51530-18600-019

Unavailable

21

BRACKET, HEADLAMP LH

51540-18600-019

Unavailable

22

SEAT, BRACKET SEAT

51551-11010

Unavailable

23

CUSHION, BRACKET CHROME

51553-30010

Unavailable

24

COVER, BRACKET CABLE

51552-11010

Unavailable

25

CLIP, METER CABLE

51452-08010

Unavailable

26

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

27

BOLT, INNER TUBE

51451-18630

Unavailable

28

CLIP, BRAKE CABLE

51453-03010

$5.50

29

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

30

SCREW

02111-06108

Unavailable

31

LOCK WASHER, STEM

51641-08010

Unavailable

32

NUT, STEERING STEM | FROM, 51632-01000

51632-01600

Unavailable

33

WASHER, STEM HEAD | 18x30x2.3

51356-11010

Unavailable

34

HEAD, STEERING STEM

51310-15010

Unavailable

35

BUSHING

51330-15010

Unavailable

36

WASHER, FORK UPPER

51354-11010

Unavailable

37

O RING, FORK BOLT

51181-11010

Unavailable

38

BOLT, FORK UPPER

51351-11011

Unavailable

39

NUT This part replaces 08312-11188.

08310-0018A

$3.30
