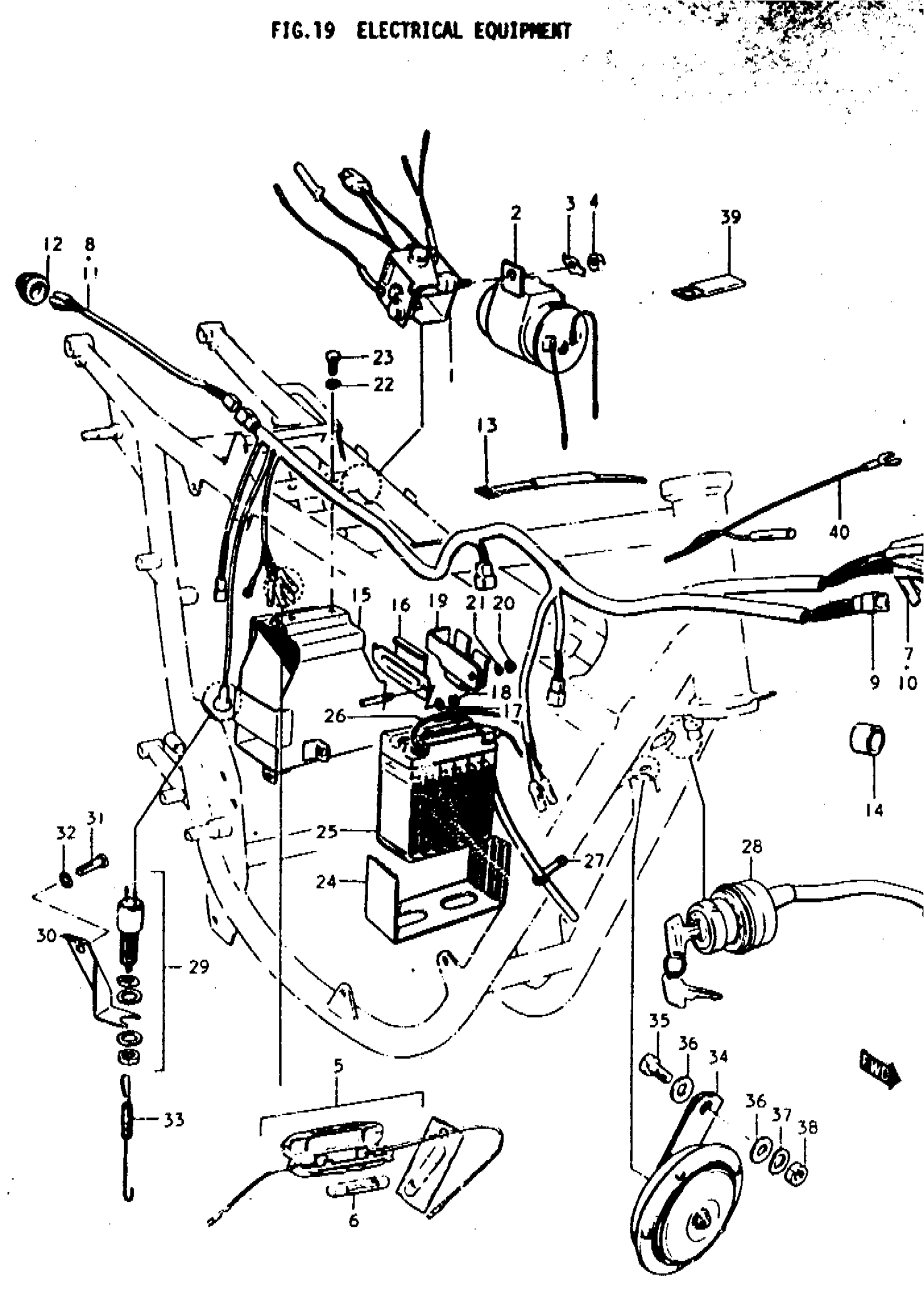

Suzuki T3501 (1972) ELECTRICAL EQUIPMENT Diagram

#

Description
Price

1

RECTIFIER ASSY | FROM 32800-18520

32800-18521

Unavailable

2

TURN SIGNAL REL | 12.8V, 23Wx2+1.7W FROM 38610-15611 This part replaces 38610-32210.

38610-322V0

Unavailable

3

LOCK WASHER, RECTIFLER

09169-05001

Unavailable

4

NUT This part replaces 08311-11058.

08310-00057

$1.84

5

FUSE CASE ASSY | Includes Item(s) 6 This part replaces 36740-15010.

36740-15011

$9.38

6

FUSE | 15A

09481-15001

$2.06

7

WIRING HARNESS A | 1

36610-15102

Unavailable

8

WIRING HARNESS B | 1

36620-18000

Unavailable

9

WIRING HARNESS A | 2

36610-18501

Unavailable

10

WIRING HARNESS A | R,J

36610-15103

Unavailable

11

WIRING HARNESS B | 2,R,J; FROM 36620-18501 TO 36620-15900

36620-15000

Unavailable

12

BUSHING, WIRING HARNESS | 1

09308-04001

Unavailable

13

CLAMP | 2; FROM 09410-00014 This part replaces 09407-18301.

09407-18302

$2.28

14

BAND, WIRING HARNESS | 2

33881-58001

Unavailable

15

HOLDER, BATTERY

41540-11002

Unavailable

16

PLATE, BATTERY HOLDER | 1,2

41560-11000

Unavailable

17

LOCK WASHER | 1,2 This part replaces 08321-21068.

08321-01067

$2.13

18

.NUT | 1,2 This part replaces 08311-11068.

08310-00067

$2.13

19

HOLDER, TOOL | R,J

41550-18600

Unavailable

20

NUT, LICENSE HOLDER | R,J This part replaces 08313-11068.

08313-10067

$1.84

21

LOCK WASHER | R,J This part replaces 08321-21068.

08321-01067

$2.13

22

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

23

PLUG, DRAIN This part replaces 01121-08168.

01500-0816B

$2.50

24

PROLECTOR, BATTERY

33651-11000

Unavailable

25

YB5LB BATTERY(Y | 12V, 5AH This part replaces 33610-18010.

33610-35400

$61.57

26

CABLE, BATTERY | TO 36860-32000

36860-18010

Unavailable

27

HOLDER, BATTERY PIPE | FROM 09401-00002

09404-07701

Unavailable

28

SWITCH ASSY, IGNITION | 1,2; FROM 37110-15010

37110-15011

Unavailable

28

SWITCH ASSY IGN | R,J; TO 37110-15111 This part replaces 37110-15110.

37110-31017

Unavailable

29

SWITCH ASSY, BRAKE LAMP | FROM 37610-53012

37610-53011

$30.75

30

BRACKET, BRAKE SWITCH

37752-18001

Unavailable

31

BOLT

01111-06128

Unavailable

32

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

33

SPRING, BRAKE SWITCH

09443-06005

$3.37

34

HORN ASSY | FROM 38500-15130 TO 38500-15640

38500-18410

Unavailable

35

PLUG, DRAIN This part replaces 01121-08168.

01500-0816B

$2.50

36

WASHER This part replaces 08322-21088.

08322-01087

$2.13

37

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

38

NUT This part replaces 08312-11088.

08310-00087

$2.13

39

CLAMP | J; FROM 09403-00045 This part replaces 09404-08404.

09404-08420

$3.16

40

CORD, HANDLEBAR EARTH | 1

36810-15000

Unavailable
