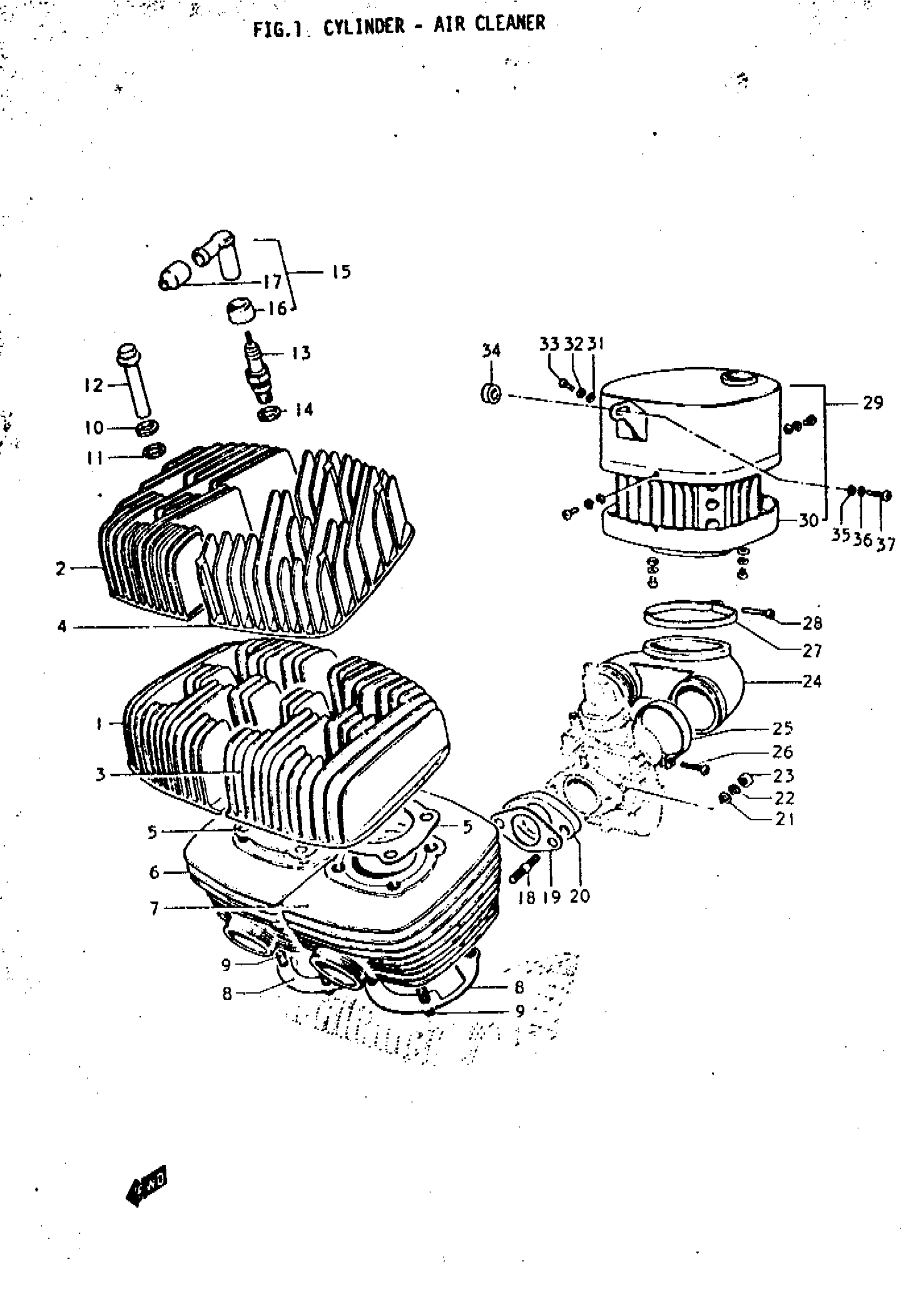

Suzuki T3501 (1972) CYLINDER - AIR CLEANER Diagram

#

Description
Price

1

CYLINDER HEAD, RH | 1,2

11111-18300

Unavailable

2

CYLINDER HEAD, RH | R,J

11111-18600

Unavailable

3

CYLINDER HEAD, LH | 1,2

11121-18300

Unavailable

4

CYLINDER HEAD, LH | R,J

11121-18600

Unavailable

5

GASKET, CYLINDER HEAD

11141-18000

Unavailable

6

CYLINDER, RH | 1

11210-18300

Unavailable

6

CYLINDER, RH | 2,R,J; TO 11210-18501

11210-18500

Unavailable

7

CYLINDER, LH | 1

11220-18300

Unavailable

7

CYLINDER, LH | 2,R,J; TO 11220-18501

11220-18500

Unavailable

8

GASKET,CYLINDER This part replaces 11241-18000.

11241-18001

Unavailable

9

BOLT,STUD This part replaces 01421-08908.

01421-0890A

$4.05

10

LOCK WASHER This part replaces 08321-21128.

08321-01127

$2.06

11

WASHER This part replaces 08322-11128.

08322-01127

$1.84

12

NUT, CYLINDER HEAD

09159-08004

Unavailable

13

SPARK PLUG | NGK, B-77HC This part replaces 09482-00003.

09482-00082

$2.98

13

SPARK PLUG | NGK, B-7HS, OPT TO 09482-00082 This part replaces 09482-00050.

09482-00082

$2.98

13

SPARK PLUG ASSY | NGK, B-9H, OPT; Includes Item(s) 14

09482-00016

Unavailable

14

GASKET | FROM 09168-14002

09168-14004

$1.83

15

CAP ASSY, SPARK PLUG | TO 33502-10801; Includes Item(s) 16 - 17

33501-10801

Unavailable

16

SEAL, PLUG CAP | TO 33541-22000

33541-11000

Unavailable

17

SEAL,HIGH TENSION CORD (SIDE) | FROM 33542-51000 This part replaces 33542-98000.

33542-38B00

$4.34

18

STUD BOLT This part replaces 01421-08358.

01421-0835A

$2.29

19

GASKET, CARBURETOR

13125-18000

Unavailable

20

INSULATOR, CARBURETOR

13129-18000

Unavailable

21

WASHER This part replaces 08322-11088.

08322-01087

$2.13

22

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

23

NUT This part replaces 08312-11088.

08310-00087

$2.13

24

HOSE, AIR CLEANER | FROM 13881-18000

13881-18001

Unavailable

25

CLAMP | TO 09402-54305 This part replaces 09402-00234.

09402-54303

$3.91

26

SCREW This part replaces 02111-04208.

02112-0420A

$1.49

27

CLAMP, INLET REAR | TO 09402-80306 This part replaces 09402-00202.

09402-80306

Unavailable

28

SCREW This part replaces 02111-04208.

02112-0420A

$1.49

29

CLEANER ASSY, AIR | FROM 13700-18510; Includes Item(s) 30 - 33

13700-18610

Unavailable

30

FILTER

13780-18410

Unavailable

31

WASHER This part replaces 08322-21048.

08322-01047

$1.86

32

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

33

SCREW

02111-04088

Unavailable

34

WASHER, AIR CLEANER | 8x22x3

09161-08002

Unavailable

35

WASHER

06322-21068

Unavailable

36

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

37

SCREW

02111-06168

Unavailable
