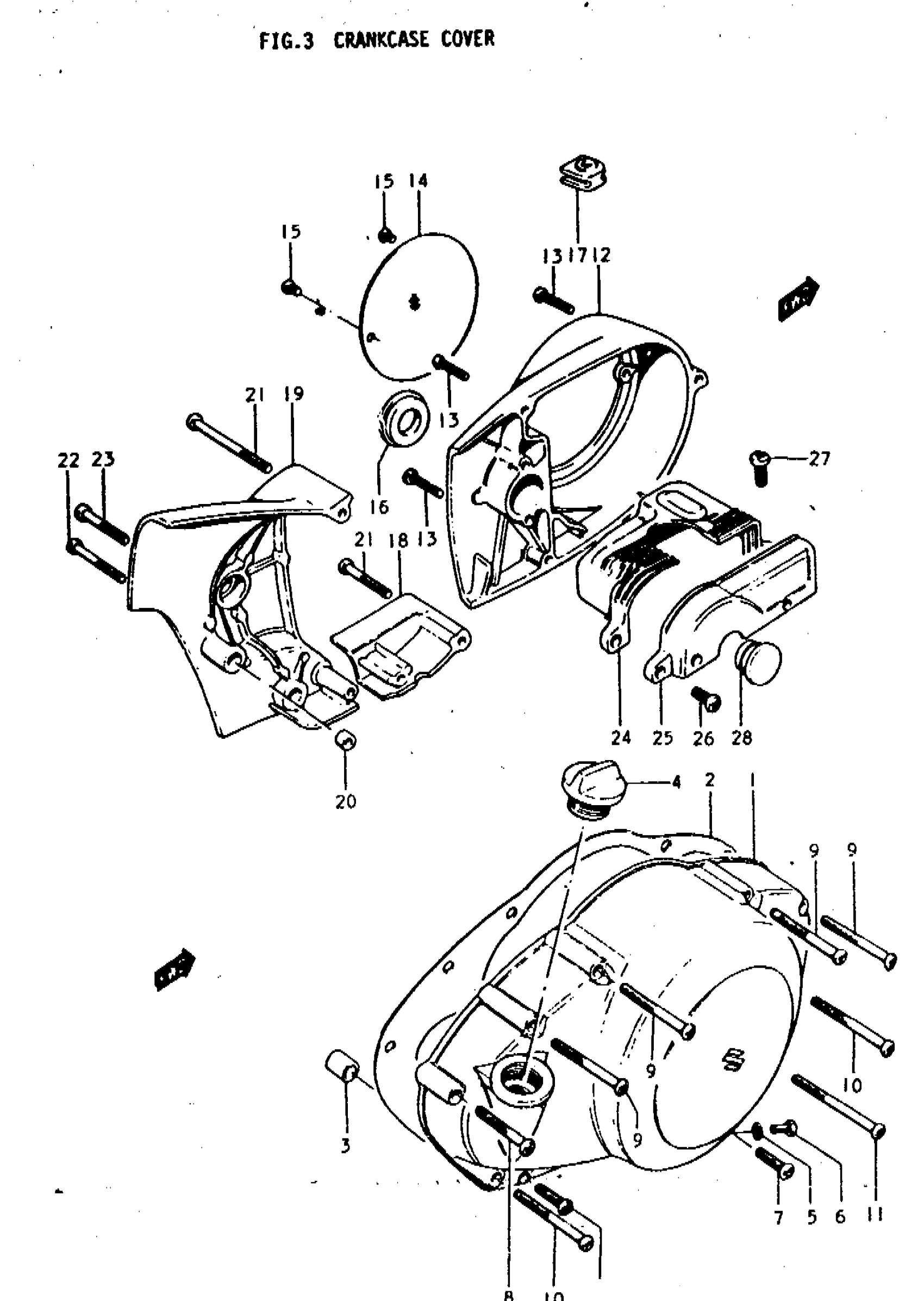

Suzuki T3501 (1972) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CRANKCASE RH

11341-18600

Unavailable

2

GASKET,CLUTCH C This part replaces 11482-18000.

11482-18001

Unavailable

3

DOWEL PIN

04211-09129

$1.65

4

PLUG SET | 20x10 This part replaces 09259-20003.

09200-20811

$4.02

5

GASKET, OIL LEVEL PLUG | 6.2x11x1

09168-06001

$1.49

6

SCREW (6X10) | 6x10 This part replaces 09128-06004.

09128-06044

$1.49

7

SCREW This part replaces 02112-06208.

02112-06207

$1.78

8

SCREW (6X40) This part replaces 02112-06408.

02112-06407

$1.78

9

6X50 CROSS SCRE This part replaces 02112-06508.

02112-06507

$1.99

10

SCREW This part replaces 02112-06558.

02112-06557

$2.53

11

SCREW This part replaces 02112-06658.

02112-06657

$2.62

12

COVER

11351-18600

Unavailable

13

SCREW

02111-06308

Unavailable

14

CAP, GENERATOR INSPECTION This part replaces 11381-10000.

11381-18100

Unavailable

15

SCREW

02111-05088

Unavailable

16

CAP, RELEASE SCREW

09250-30003

$3.89

17

HOLDER, CLUTCH CABLE ADJUSTER

11371-10000

Unavailable

18

COVER, GEAR SHIFTING SWITCH

11461-18000

Unavailable

19

COVER, ENGINE SPROCKET

11361-18600

Unavailable

20

DOWEL PIN

04211-09129

$1.65

21

SCREW

02111-06458

Unavailable

22

SCREW

02111-06558

Unavailable

23

SCREW

02111-06808

Unavailable

24

COVER, OIL PUMP A

11411-18000

Unavailable

25

COVER, OIL PUMP B

11412-18000

Unavailable

26

SCREW

02111-05128

Unavailable

27

SCREW This part replaces 02111-05168.

02112-05167

$1.97

28

CAP, OIL PUMP COVER

09250-30003

$3.89
