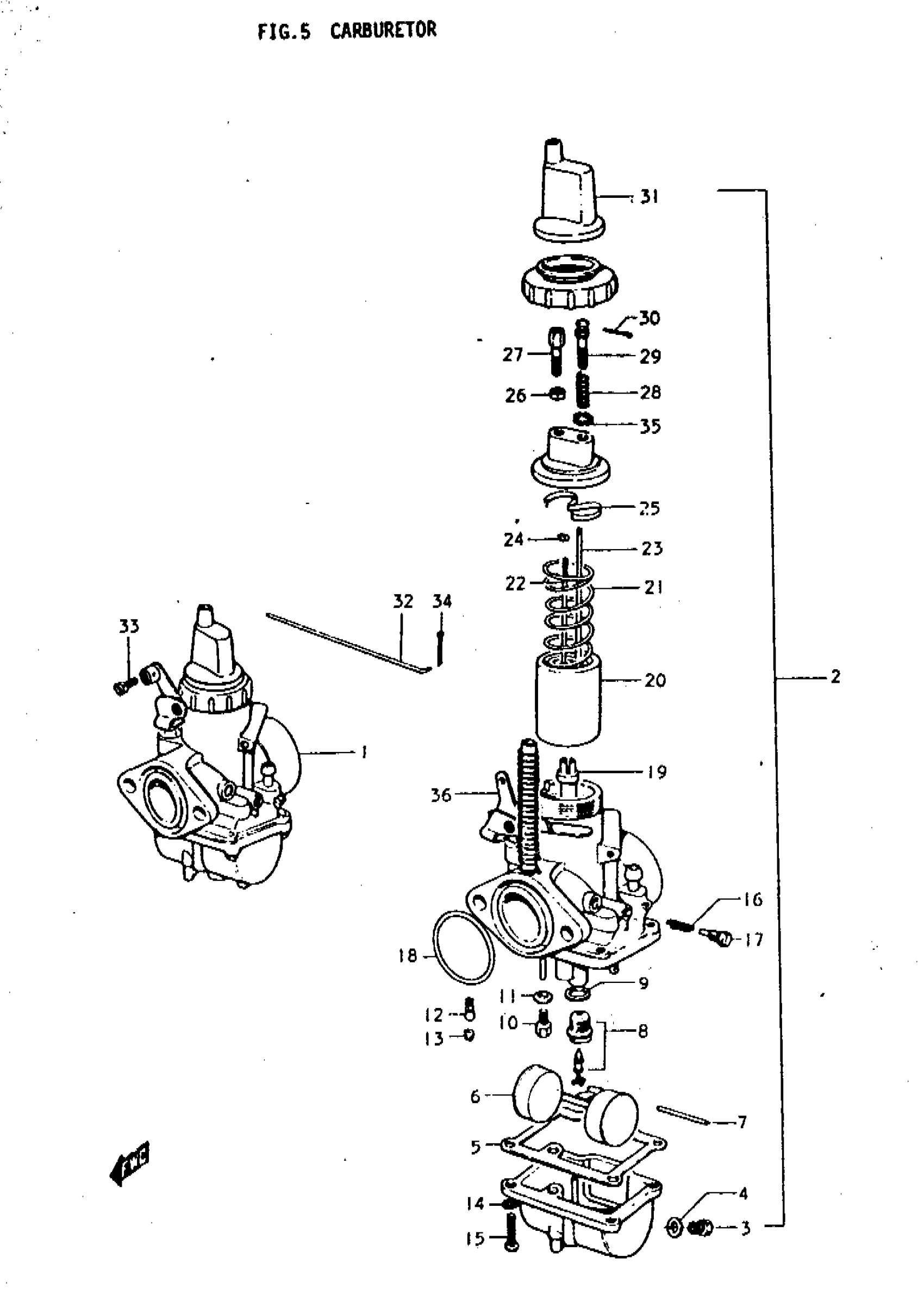

Suzuki T3501 (1972) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY, RH | 1

13201-18611

Unavailable

1

CARBURETOR ASSY, RH | 2,R,J

13201-18630

Unavailable

2

CARBURETOR ASSY, LH | 1

13202-18611

Unavailable

2

CARBURETOR ASSY, LH | 2,R,J; Includes Item(s) 3 - 17

13202-18630

Unavailable

3

PLUG, DRAIN

13247-05010

$5.11

4

GASKET, DRAIN PLUG

13249-05010

$1.98

5

GASKET, FLOAT CHAMBER | FROM 13251-18010

13251-33110

$9.03

6

FLOAT

13252-18010

Unavailable

7

.PIN, FLOAT

13254-01010

$3.62

8

VALVE,NEEDLE | FROM 13370-18010 This part replaces 13370-32210.

13370-41500

Unavailable

9

GASKET, VALVE SEAT This part replaces 13392-15010.

13392-16600

$1.94

10

JET, MAIN (112.5) | #112.5 This part replaces 09491-22005.

09491-22015

$9.69

10

JET, MAIN (110) | #110, OPT This part replaces 09491-22004.

09491-22016

$10.06

10

JET, MAIN (115) | #115, OPT This part replaces 09491-23002.

09491-23011

$9.63

10

JET, MAIN (125) | #125, OPT This part replaces 09491-25001.

09491-25010

$11.02

10

JET, MAIN (135) | #135, OPT This part replaces 09491-27002.

09491-27009

$11.92

11

WASHER, NEEDLE JET

13382-03110

$2.80

12

JET, PILOT (30) | 1; #30 This part replaces 09492-30003.

09492-30006

$9.55

12

JET, PILOT A | 2,R,J; #35

09492-35004

Unavailable

13

JET, PILOT B | 0.7@

09492-60003

Unavailable

14

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

15

SCREW This part replaces 02111-04168.

02112-0416A

$1.49

16

SPRING, PILOT AIR SCREW

13268-01010

$5.28

17

SCREW, PILOT AIR

13269-15010

Unavailable

18

O RING, INSULATOR | D. :3.0; Includes Item(s) 18 - 36

13295-18011

Unavailable

18

O RING | 1; D. :3.53 This part replaces 13295-18010.

09280-32001

$2.06

19

JET, NEEDLE | 1; Q-0

09494-00047

Unavailable

19

JET, NEEDLE | 2,R,J; P-6

09494-00065

Unavailable

20

VALVE, THROTTLE

13551-18010

Unavailable

21

SPRING, THROTTIE VELVE RETURN This part replaces 13573-15010.

13573-40010

Unavailable

22

NEEDLE, JET | 1; 5DP2

13383-15010

Unavailable

22

NEEDLE, JET | 2,R,J; 5DL13

13383-18630

Unavailable

23

ROD, THROTTLE VALVE

13296-15010

Unavailable

24

CLIP, NEEDLE

13394-10010

$5.45

25

SEAT, VALVE SPRING

13581-15010

Unavailable

26

NUT, CABLE ADJUSTING

13661-03010

$5.67

27

ADJUSTER This part replaces 13577-03010.

13577-48110

$8.30

28

SPRING, THROTTLE ADJUSTING

13268-03110

$5.45

29

SCREW, THROTTLE ADJUSTING

13267-09210

Unavailable

30

COTTER PIN

04111-12088

Unavailable

31

CAP, CABLE ADJUSTER

13681-11010

Unavailable

32

LINK, STARTER LEVER | E.NO. 12674~

13425-15010

Unavailable

32

LINK, STARTER LEVER | 1; ~E.NO. 12673 SEE NOTE This part replaces 13425-18010.

13425-15010

Unavailable

33

BOLT, STARTER LEVER | E.NO. 12674~

13429-15010

Unavailable

34

COTTER PIN

04111-12088

Unavailable

35

LOCK WASHER This part replaces 08323-21068.

08323-31068

Unavailable

36

LEVER, STARTER RH | E.NO. 12674~

13413-15110

Unavailable
