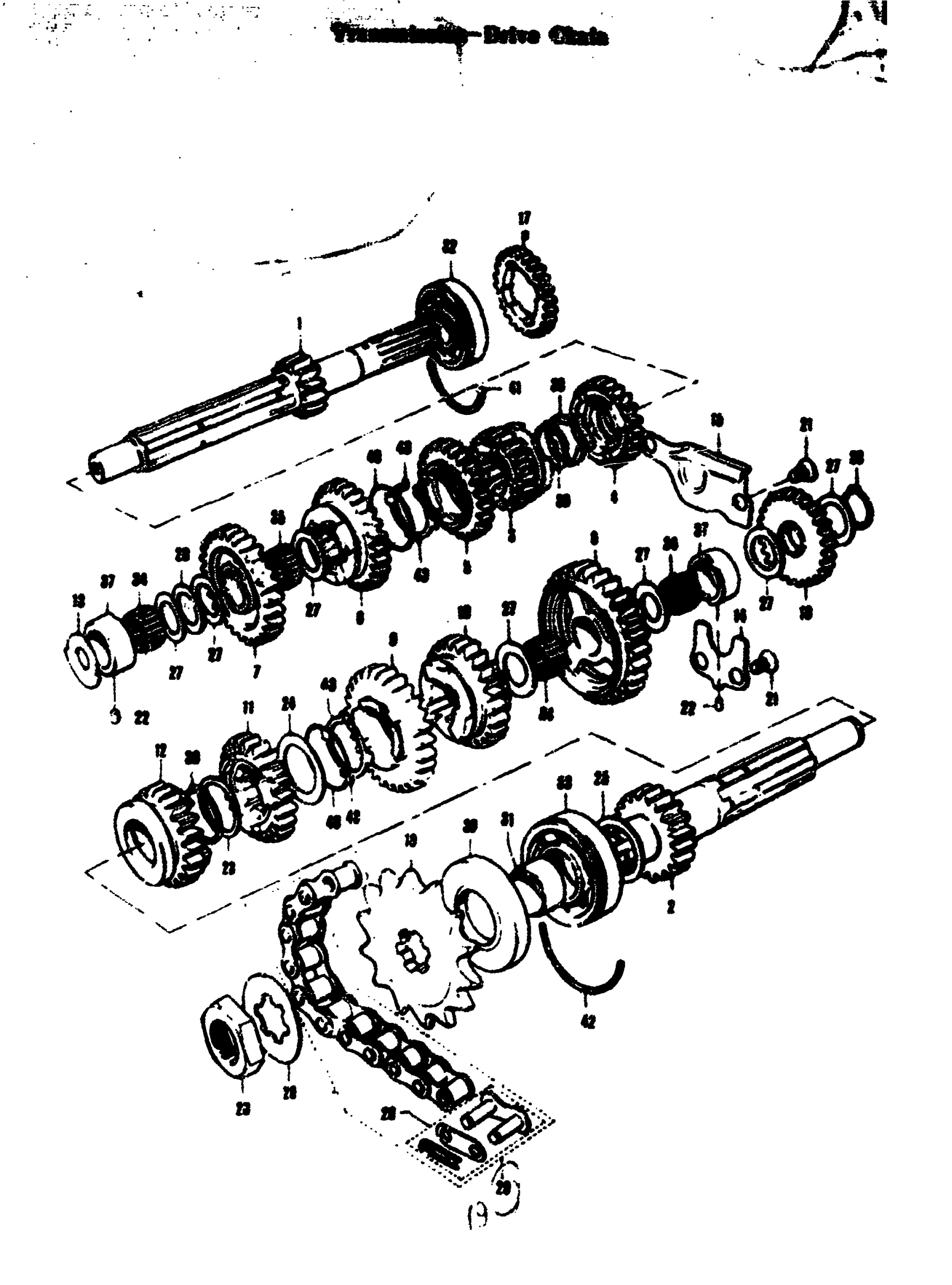

Suzuki T305 (1969) TRANSMISSION-DRIVE CHAIN Diagram

#

Description
Price

1

COUNTER SHAFT | TC305; N.T.=12

24121-18001

Unavailable

2

DRIVE SHAFT | TC305; N.T.=19

24131-18000

Unavailable

3

2ND DRIVE GEAR | TC305; N.T.=18

24221-18000

Unavailable

4

3RD DRIVE GEAR | TC305; N.T.=21

24231-18000

Unavailable

5

4TH DRIVE GEAR | TC305; N.T.=23

24241-18001

Unavailable

6

5TH DRIVE GEAR | TC305; N.T.=25

24251-18001

Unavailable

7

6TH DRIVE GEAR | TC305; N.T.=27

24261-18000

Unavailable

8

1ST DRIVEN GEAR | TC305; N.T.=28

24311-18000

Unavailable

9

2ND DRIVEN GEAR | TC305; N.T.=27

24320-18000

Unavailable

10

3RD DRIVEN GEAR | TC305; N.T.=24

24331-18000

Unavailable

11

4TH DRIVEN GEAR | TC305; N.T.=22

24341-18001

Unavailable

12

5TH DRIVEN GEAR | TC305; N.T.=20

24351-18001

Unavailable

13

COUNTER SHAFT BUSHING RETAINER | TC305

24741-10000

Unavailable

14

DRIVE SHAFT BUSHING RETAINER | TC305

24751-11000

Unavailable

15

OIL RESERVOIR CUP | TC305

24871-11001

Unavailable

16

KICK STARTER IDLE GEAR | TC305; N.T.=26

26260-11000

Unavailable

17

KICK STARTER DRIVEN GEAR | TC305; N.T.=24

26281-11000

Unavailable

18

ENGINE SPROCKET | TC305; #525,N.T.=11. OPT

27511-18000

Unavailable

18

ENGINE SPROCKET | TC305; #525,N.T.=15.OPT

27511-18700

Unavailable

18

ENGINE SPROCKET | TC305; #525,N.T.=15.OPT

27511-18710

Unavailable

19

DRIVE CHAIN ASS'Y | TC305; #525Tx96L,INCLUDES REF.NO.20

27600-18610

Unavailable

20

JOINT, CHAIN | TC305 This part replaces 27620-18610.

27620-30110

Unavailable

21

CROSS HEAD SCREW

02121-06128

Unavailable

22

DOWEL PIN

04221-04069

$2.12

23

THRUST WASHER

08211-25321

$3.27

24

WASHER, RR FINAL DRIVE This part replaces 08211-25381.

09181-25223

$3.21

25

THRUST WASHER

08211-22341

$3.85

26

ENGINE SPROCKET NUT | TC305; 22SCREW

09140-22003

Unavailable

27

WASHER, 2ND DRIVE GEAR | TC305; ID=17(0.67) OD=29(1.14) T=1.0(0.04) This part replaces 09160-17001.

09181-17223

$2.96

27

WASHER | TC305; ID=17(0.67) OD=29(1.14) T=1.5(0.06) This part replaces 09160-17003.

08211-17282

$2.70

27

6TH DRIVE GEAR OUTER THRUST WA | TC305; ID=17(0.67) OD=29(1.14) T=1.2(0.06)

09160-17007

Unavailable

28

WASHER | TC305; ID=17(0.67) OD=29(1.14) T=1.0(0.04) This part replaces 09160-17005.

09160-17022

$3.23

29

WASHER | TC305; OD=38(0.15) T=1.2(0.05) This part replaces 09167-22004.

09167-22005

$2.11

30

3RD DRIVE GEAR THRUST WASHER | TC305; OD=32(1.32) T=1.0(0.04)

09167-25004

Unavailable

31

ENGINE SPROCKET SPACER | TC305; ID=22(0.87) OD=27(1.06) W=13.4(0.53)

09180-22003

Unavailable

32

COUNTER SHAFT BEARING | TC305; ID=20(0.79) OD=52(2.01) W=15(0.59)

09262-20025

Unavailable

33

DRIVE SHAFT BEARING | TC305; ID=22(0.87) OD=56(2.20) W=16(0.63)

09262-22005

Unavailable

34

TRANSMISSION SHAFT NEEDLE BEAR | TC305; ID=17(0.67) OD=21(0.83) W=12.8(0.50)

09263-17001

$21.82

35

6TH DRIVE GEAR NEEDLE BEARING | TC305; ID=17(0.67) OD=21(0.83) W=9.8(0.39)

09263-17004

$12.03

36

DRIVE SHAFT OIL SEAL | TC305; OD=56(2.20)

09283-27003

Unavailable

37

TRANSMISSION SHAFT BUSHING | TC305; ID=21(0.83) OD=30(1.18) W=13(0.51)

09300-21001

Unavailable

38

TRANSMISSION GEAR CIRCLIP (A) | TC305

09380-17001

$1.98

39

SNAP RING | TC305

09380-25003

$3.04

40

TRANSMISSION GEAR CIRCLIP (C) | TC305

09380-38001

Unavailable

41

COUNTER SHAFT BEARING POSITION | TC305

09390-52001

Unavailable

42

DRIVE SHAFT BEARING POSITIONIN | TC305

09390-54001

Unavailable

43

TRANSMISSION GEAR KNOCK RING | TC305

09399-22002

Unavailable
