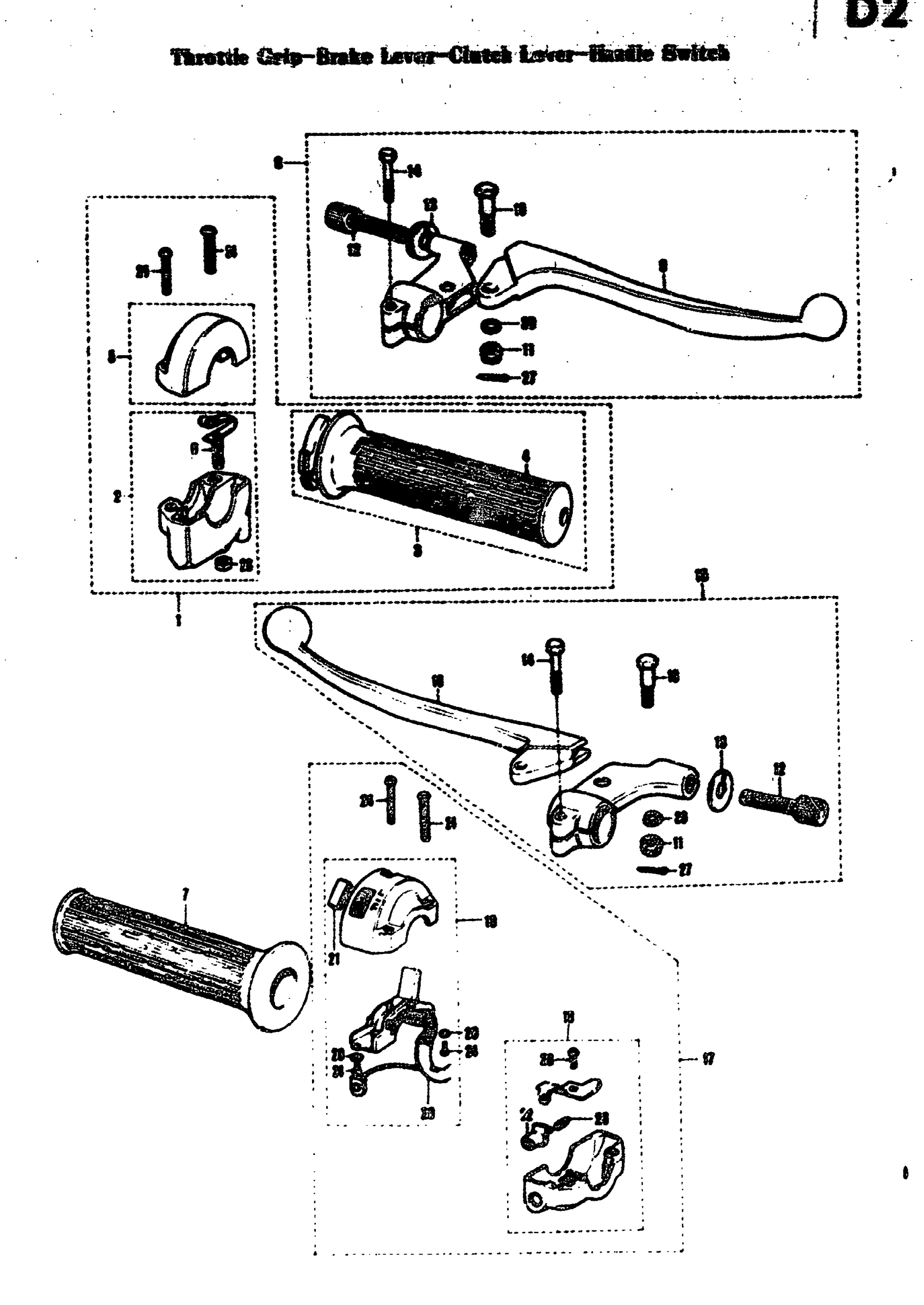

Suzuki T305 (1969) THROTTLE GRIP-BRAKE LEVER-CLUTCH LEVER-HANDLE SWITCH Diagram

#

Description
Price

1

THROTTLE GRIP ASS'Y | TC305

57100-11012

Unavailable

2

THROTTLE GRIP LOWER HOLDER ASS | TC305TC305

57101-11830

Unavailable

3

THROTTLE GRIP | TC305

57110-11011

Unavailable

4

THROTTLE GRIP RUBBER | TC305

57111-11012

Unavailable

5

THROTTLE GRIP UPPER HOLDER | TC305

57121-11010

Unavailable

6

THROTTLE GRIP ADJUSTER | TC305; 5SCREW

57170-11011

Unavailable

7

GRIP, LH | TC305 This part replaces 57211-11011.

57211-15110

Unavailable

8

BRAKE LEVER ASS'Y | TC305

57300-11010

Unavailable

9

BRAKE LEVER | TC305

57420-11010

Unavailable

10

BOLT | TC305; 6SCREW This part replaces 57431-11010.

57431-11013

$6.31

11

LEVER NUT | TC305; 6SCREW

57433-11010

$5.64

12

CABLE ADJUSTER | TC305

57441-11010

$5.62

13

CABLE ADJUSTER NUT | TC305

57442-11010

$2.79

14

BOLT | TC305; 6SCREW,L.=20(0.79) This part replaces 57451-11010.

01500-06207

$2.28

15

CLUTCH LEVER ASS'Y | TC305

57500-11010

Unavailable

16

CLUTCH LEVER | TC305

57620-11010

Unavailable

17

HANDLE SWITCH ASS'Y | TC305

57700-11601

Unavailable

18

HANDLE SWITCH UPPER COVER ASS' | TC305TC305

57701-11601

Unavailable

19

HANDLE SWITCH LOWER COVER ASS' | TC305TC305

57702-11011

Unavailable

20

HANDLE SWITCH WIRING HARNESS | TC305

57720-11600

Unavailable

21

HANDLE SWITCH UPPER COVER CAP | TC305

57733-09600

Unavailable

22

HORN BUTTON | TC305

57750-11010

Unavailable

23

HORN BUTTON SPRING | TC305

57761-11010

Unavailable

24

CROSS HEAD SCREW

02111-03068

Unavailable

25

CROSS HEAD SCREW

02111-05208

Unavailable

26

SCREW This part replaces 02121-03088.

02122-0308A

Unavailable

27

PIN This part replaces 04111-16158.

04111-1620A

$1.49

28

NUT This part replaces 08311-11058.

08310-00057

$1.84

29

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

30

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
