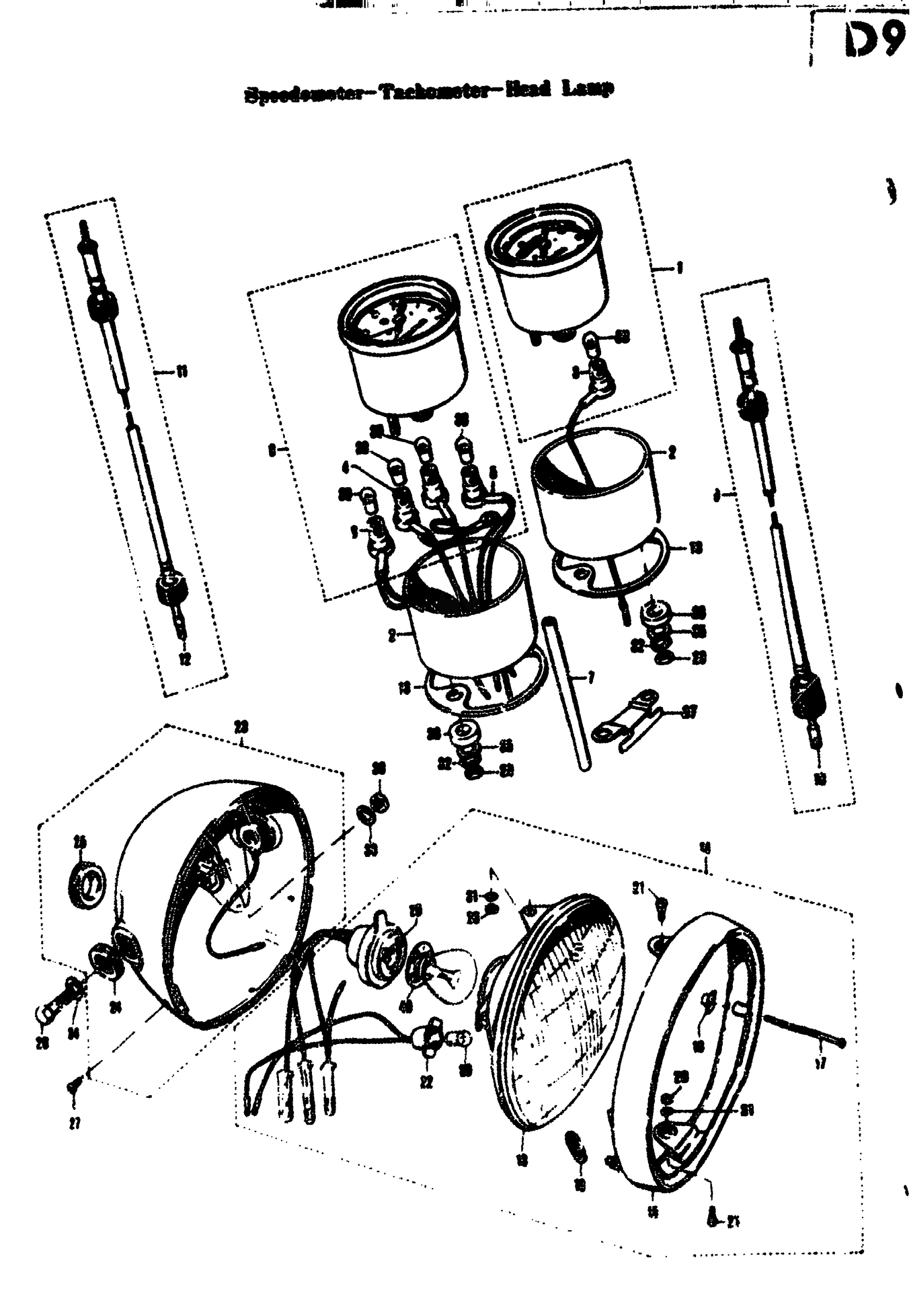

Suzuki T305 (1969) SPEEDOMETER-TACHOMETER-HEAD LAMP Diagram

#

Description
Price

1

SPEEDOMETER ASS'Y | TC305

34100-15603

Unavailable

2

MOTOR COVER | TC305; PRIMARY PAINTED

34155-15001

Unavailable

3

SPEEDOMETER LAMP BULB SOCKET | TC305

34173-15020

Unavailable

4

HIGH BEAMINDICATOR/TACHOMETER | TC305TC305

34173-15610

Unavailable

5

TECHOMETER MENTRAL BULB SOCKET | TC305

34174-15020

Unavailable

6

TECHOMETER TURN SIGNAL BULB SO | TC305TC305

34175-15020

Unavailable

7

METER CABLE TUBE | TC305

34182-15000

Unavailable

8

TECHOMETER ASS'Y | TC305

34200-18700

Unavailable

9

SPEEDOMETER CABLE ASS'Y | TC305

34910-18030

Unavailable

10

SPEEDOMETER INNER CABLE | TC305; L.=880(33.86)

34911-18030

Unavailable

11

CABLE ASSY,TACH | TC305 This part replaces 34940-18030.

34940-36032

Unavailable

12

TECHOMETER INNER CABLE | TC305; L.=1010(38.76)

34941-18030

Unavailable

13

METER BASE CUSHION | TC305

34955-15000

Unavailable

14

HEAD LAMP ASS'Y | TC305

35100-15613

Unavailable

15

HEAD LAMP LIM | TC305

35111-15613

Unavailable

16

HEAD LAMP LENS UNIT | TC305

35121-15610

Unavailable

17

HEAD LAMP BEAM SCREW | TC305; 4 SCREW.L.=65(7.56)

35151-15611

Unavailable

18

HEAD LAMP BEAM NUT | TC305

35152-15611

$3.25

19

HEAD LAMP UNIT HOUSING SPRING | TC305

35154-11610

Unavailable

20

HEAD LAMP BULB SOCKET | TC305

35171-15610

Unavailable

21

HEAD LAMP LENS UNIT SCREW | TC305

35181-15611

$3.37

22

PARKING LAMP SO | TC305 This part replaces 36118-15610.

36118-04A00

$12.53

23

HEAD LAMP HOUSING ASS'Y | TC305; PRIMARY PAINTED

51810-15031

Unavailable

24

HEAD LAMP HOUSING HOLDING CASH | TC305; O.D.-25(2.17), W-7.1(0.28)TC305;

51827-15030

Unavailable

25

HEAD LAMP HOUSING GRONNET | TC305; I.D.-20.(0.79), O.D.-35(1.38)W-8.0(0.31)

51845-15030

Unavailable

26

BOLT This part replaces 01221-08257.

01204-08257

$1.96

27

CROSS HEAD SCREW

02131-05108

Unavailable

28

NUT This part replaces 08311-11048.

08310-00047

$2.23

29

NUT This part replaces 08311-11058.

08310-00057

$1.84

30

NUT This part replaces 08312-11088.

08310-00087

$2.13

31

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

32

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

33

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

34

WASHER This part replaces 08322-11088.

08322-01087

$2.13

35

WASHER,5.5X18X1 | TC305 This part replaces 09160-05006.

09160-05006-XC0

Unavailable

36

CUSHION | TC305; LD-8.0(0.31). O.D.=17(0.67)T.-5.0(0.20) This part replaces 09320-08004.

09320-08010

$1.99

37

CABLE CLIP | TC305

09403-00030

Unavailable

38

BULB | TC305; 12V, 3W

09471-12001

$1.65

39

BULB | TC305; 12V, 14W

09471-12004

$2.69

40

BULB | TC305; 12V, 35/35W

09471-12022

Unavailable
