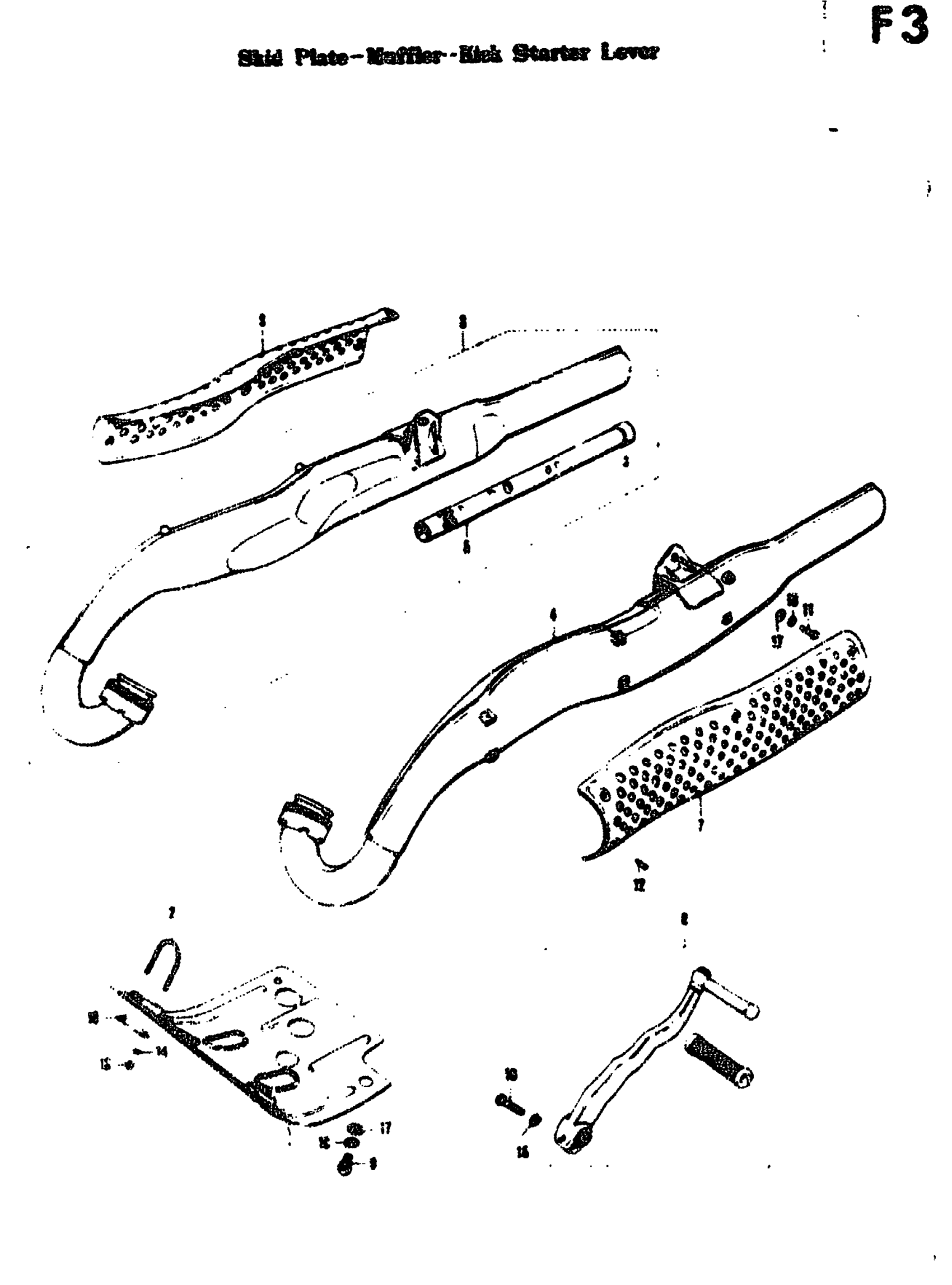

Suzuki T305 (1969) SKID PLATE - MUFFLER - KICK STARTER LEVER Diagram

#

Description
Price

1

SKID PLATE

11910-18200

Unavailable

2

STAND PLATE BOLT | 6 SCREW

11921-11200

Unavailable

3

RIGHT MUFFLER ASS'Y

14301-18200

Unavailable

4

LEFT MUFFLER ASS'Y

14302-18200

Unavailable

5

MUFFLER BAFFLE PIPE

14510-18200

Unavailable

6

RIGHT MUFFLER COVER

14781-18200

Unavailable

7

LEFT MUFFLER COVER

14791-18200

Unavailable

8

KICK STARTER LEVER ASS'Y

26300-18200

Unavailable

9

BOLT This part replaces 01111-10168.

01500-10167

$3.85

10

BOLT This part replaces 01122-08258.

01500-08257

$2.50

11

BOLT 10X16 This part replaces 01221-10167.

01204-10167

$3.20

12

CROSS HEAD SCREW

02111-06067

Unavailable

13

NUT, LICENSE HOLDER This part replaces 08313-11068.

08313-10067

$1.84

14

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

15

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

16

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

17

WASHER This part replaces 08322-21108.

08322-01107

$2.15

18

STUD PLATE WASHER

09169-06001

Unavailable
