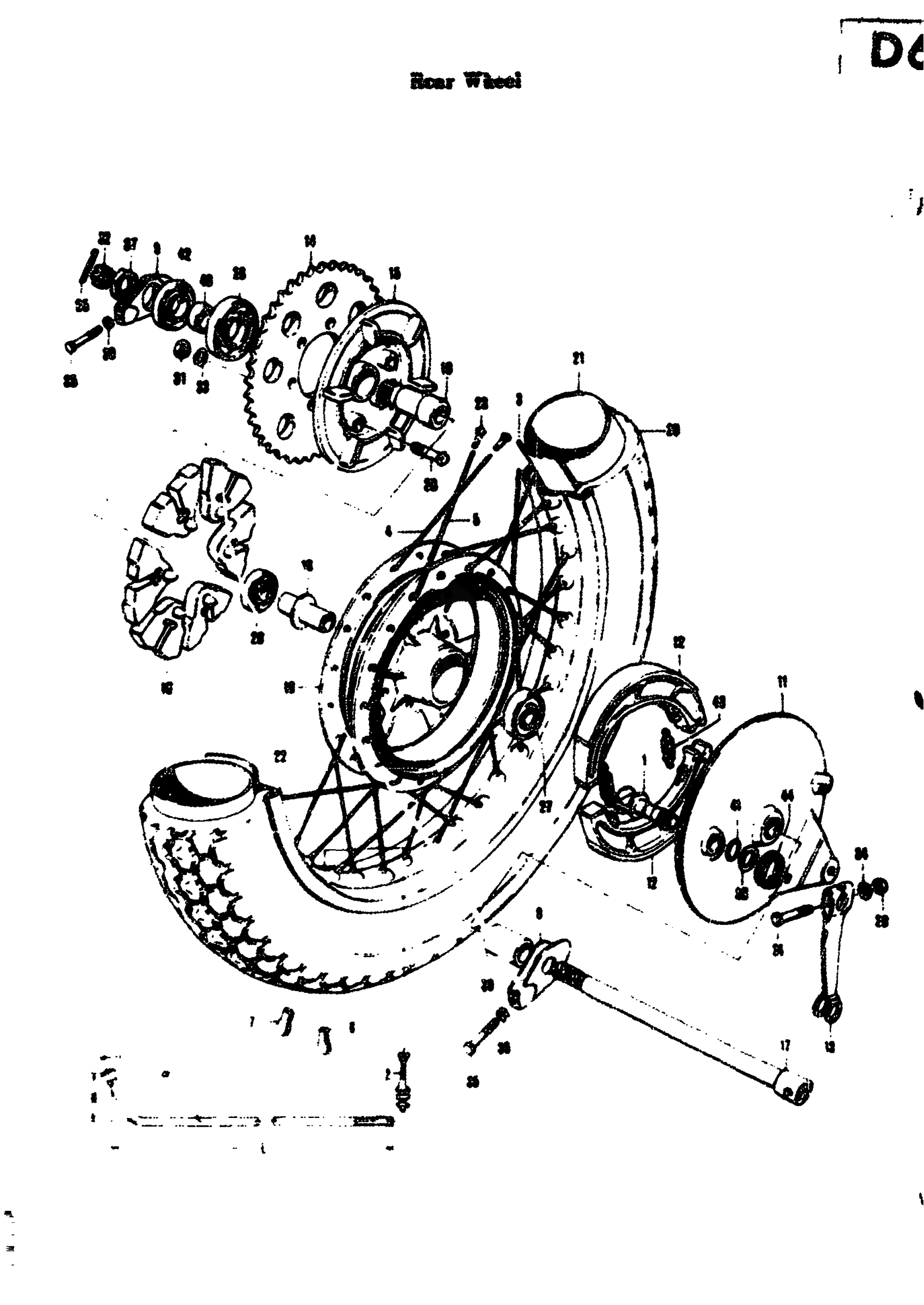

Suzuki T305 (1969) REAR WHEEL Diagram

#

Description
Price

0

REAR HUB ASS'Y | TC305; INCLUDERS REF. NOS. 1,4,5,10-13 15-9.24-29.32-35.37-44

64100-15808

Unavailable

1

REAR BRAKE CAM | TC305

54440-11002

Unavailable

2

INNER TUBE VALVE | TC306

55250-01000

Unavailable

3

IN TUBE PROTECT | TC306 This part replaces 55261-11010.

55261-26F10

$4.39

3

SPOKE SET | TC305; INCLUDES REF. NOS. 4,5&23

55320-11819

Unavailable

4

INNER SPOKE | TC306; 0.0=3.30.13,L.=152 3.98-95.5,5.8&5x2.33

55321-11020

Unavailable

5

OUTER SPOKE | TC306; 0.0=3.2,L-151,5.96 L-80H-10.5

55322-11020

Unavailable

6

BALANCER WHEEL (15G) | TC306 This part replaces 55411-11000.

55411-26G00

$7.73

7

BALANCER WHEEL (30G) | TC306 This part replaces 55412-11000.

55413-41F00

$7.50

8

RIGHT CHAIN ADJUSTER | TC306

61410-15001

Unavailable

9

LEFT CHAIN ADJUSTER | TC306

61420-15001

Unavailable

10

REAR HUB DRUM | TC305

64110-11000

Unavailable

11

REAR HUB PANEL | TC306

64210-11000

Unavailable

12

SHOE SET,BRAKE( | TC306 This part replaces 64410-11000.

64400-11870

Unavailable

13

REAR BRAKE CAM LEVER | TC306

64451-11000

Unavailable

14

REAR SPROCKET | TC306; N.T.-38 #525

64511-11700

Unavailable

14

REAR SPROCKET | TC306; N.T.-41 #525,OPT

65411-11000

Unavailable

14

REAR SPROCKET | TC306; N.T.-39 #525,OPT

64511-11710

Unavailable

14

REAR SPROCKET | TC306; N.T.-40 #525,OPT

64511-11720

Unavailable

14

REAR SPROCKET | TC306; N.T.-42 #525,OPT

64511-11730

Unavailable

15

SPROCKET MOUNTING DRUM | TC306

64611-10000

Unavailable

16

SHOCK ABSURBER, REAR DRUM | TC306 This part replaces 64651-11000.

64651-11002

Unavailable

17

REAR AXLE | TC306; O.D.-16(0.63), L-252(9.92)

64710-11000

Unavailable

18

REAR HUB BEARING SPACER | TC306; L-57(2.24)

64730-11000

Unavailable

19

SPROCKET MOUNTING DRUM SHAFT | TC306

64761-11000

Unavailable

20

REAR TIRE | TC306; SIZE-3.25'-18'

65100-18010

Unavailable

21

TUBE ASSY, WHEEL INNER | TC306; SIZE-3.25'-18' This part replaces 65200-18010.

65200-44AA0

$53.43

22

REAR WHEEL RIM | TC306; SIZE-1.85'-18'

65311-11220

Unavailable

23

SPOKE NIPPLE | TC306

65325-03020

Unavailable

24

BOLT This part replaces 01111-08408.

01500-0840A

$2.60

25

COTTER PIN

04111-40358

Unavailable

26

BEARING, DRUM This part replaces 08113-63050.

09262-25073

$25.92

27

BEARING, FRONT HUB RH This part replaces 08143-62030.

08143-62037

$18.47

28

BEARING, LH This part replaces 08143-63030.

08143-63037

$22.58

29

.NUT This part replaces 08311-11068.

08310-00067

$2.13

30

NUT This part replaces 08312-11088.

08310-00087

$2.13

31

NUT This part replaces 08312-31108.

08310-00107

$2.19

32

CASTLE NUT

08314-31167

Unavailable

33

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

34

WASHER This part replaces 08322-21068.

08322-01067

$2.13

35

CHAIN ADJUSTER BOLT | TC306; 8 SCREW, L-48(1.57)

09104-08004

Unavailable

36

BOLT | TC306; 10 SCREW, L-35(1.38) This part replaces 09119-10002.

09105-10001

$2.87

37

NUT | TC306 This part replaces 09140-24002.

09140-24010

Unavailable

38

WASHER | TC306; L.D.-15(0.58) O.D.-24(0.94) T-TC306; L.D.-15(0.58) O.D.-24(0.94) T-1.6(0.05) This part replaces 09160-15001.

09160-15048

$2.56

39

REAR AXLE RIGHT SPACER | TC306; L.D.-17.5(0.69) O.D.-28(1.10)L-36.8(1.45)

09180-17024

Unavailable

40

SPROCKET MOUNTING DRUM SHAFT S | TC306; L.D.-25(0.98) O.D.-30.5(1.20)TC306; L.D.-25(0.98) O.D.-30.5(1.20)L-11.3(0.44)

09180-25011

Unavailable

41

O RING (ID:14.8,D:2.40) | TC306; L.D.-14.8(0.58), O.D.-19.6(0)T-2.4(0.09) This part replaces 09280-15001.

09280-15003

$1.76

42

SEAL,OIL(30.5X5 | TC306; I.D.-30.5(1.20), O.D.-52(2.04) W-8TC306; I.D.-30.5(1.20), O.D.-52(2.04) W-8(0.31) This part replaces 09283-30001.

09285-30003

$23.97

43

BRAKE SHOE SPRING | TC306

09443-10001

Unavailable

44

SPRING | TC306 This part replaces 09448-30001.

09448-30001-XC0

Unavailable
