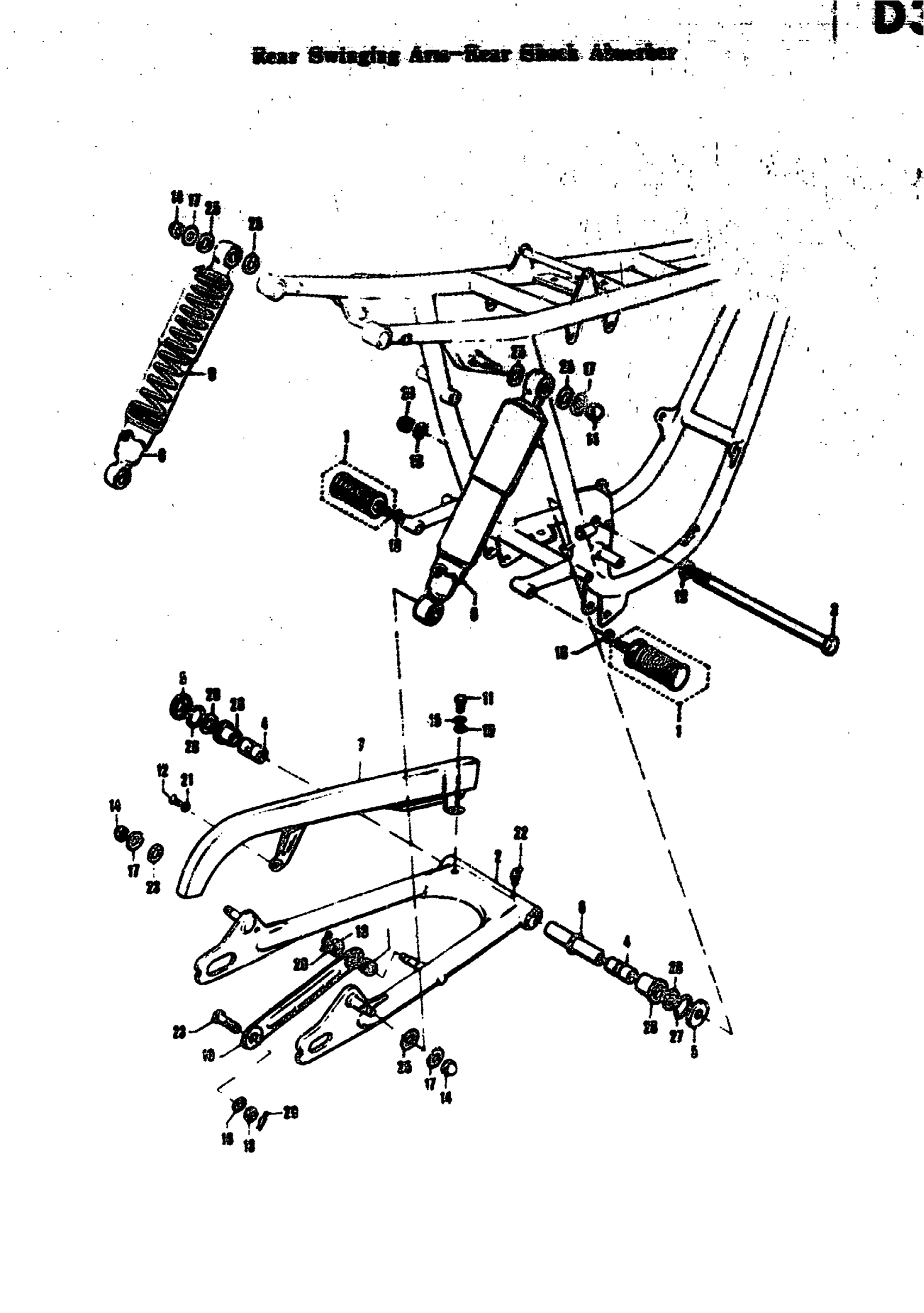

Suzuki T305 (1969) REAR SWINGING ARM-REAR SHOCK ABSORBER Diagram

#

Description
Price

1

FOOTREST SET,PI This part replaces 43600-10808.

43600-10809

Unavailable

2

REAR SWINGING ARM | TC305; INCLUDES REF.NOS. 6,22 & 28COLOR: BLACK

61101-18806-019

Unavailable

3

REAR SWINGING ARM PIVOT SHAFT | TC305; 14SCREW,L=225(8.86)

61211-15001

Unavailable

4

SPACER | TC305; ID=14(0.55) OD=22(0.87) L=41.5(1.71) This part replaces 61251-15000.

61251-15001

Unavailable

5

REAR SWINGING ARM DUST SEAL CO | TC305TC305

61262-15000

$93.03

6

REAR SWINGING ARM PIVOT SHAFT | TC305; ID=15.3(0.60) L=99.2(3.90)

61280-15000

Unavailable

7

CASE, CHAIN | CHROME-PLATED This part replaces 61310-11601.

61310-18600

Unavailable

8

REAR SHOCK ABSORBER ASS'Y | TC305

62100-11010

Unavailable

9

REAR SHOCK ABSORBER SPRING | TC305; ID=31.5(1.24) OD=44.5(1.75)L=204(8.03)

62211-09210

Unavailable

10

REAR TORQUE LINK | TC305

64310-11000

Unavailable

11

HEXAGON BOLT

01111-06128

Unavailable

12

CROSS HEAD SCREW

02121-05128

Unavailable

13

NUT This part replaces 08311-11108.

08310-00107

$2.19

14

NUT This part replaces 08313-11107.

08313-10107

$2.50

15

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

16

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

17

WASHER This part replaces 08322-11128.

08322-01127

$1.84

18

WASHER This part replaces 08322-11148.

08322-01147

$1.91

19

WASHER This part replaces 08322-21068.

08322-01067

$2.13

20

WASHER This part replaces 08322-21108.

08322-01107

$2.15

21

WASHER,LOCK This part replaces 08323-31058.

08323-3105A

$1.49

22

NIPPLE, GREASE This part replaces 08351-31008.

08351-3100A

$4.45

23

REAR TORQUE LINK BOLT | TC305; OD=10(0.39) L=28(1.10)

09101-10003

Unavailable

24

NUT | TC305; 14SCREW This part replaces 09159-14002.

09159-14003

Unavailable

25

WASHER, LOWER (10.5X24X2.3) | TC305; ID=10.5(0.41) OD=24(0.95) T=2.3(0.09) This part replaces 09160-10001.

09160-10093

$2.35

26

REAR SWINGING ARM PIVOT THRUST | TC305; ID=14.5(0.57) OD=29(1.14) T=2.3(0.09)

09160-14009

$2.82

27

.O RING (D:3,ID:29.5) | TC305; ID=29.5(1.16) OD=35.5(1.39)W=3.0(0.12)

09280-30001

$1.72

28

REAR SWINGING ARM BUSHING | TC305; ID=22(0.82) L=40(1.57)

09301-22001

Unavailable

29

CLIP | TC305 This part replaces 09385-10001.

09385-10005

$1.56

30

REAR TORQUE LINK SPRING | TC305

09440-18002

$1.49
