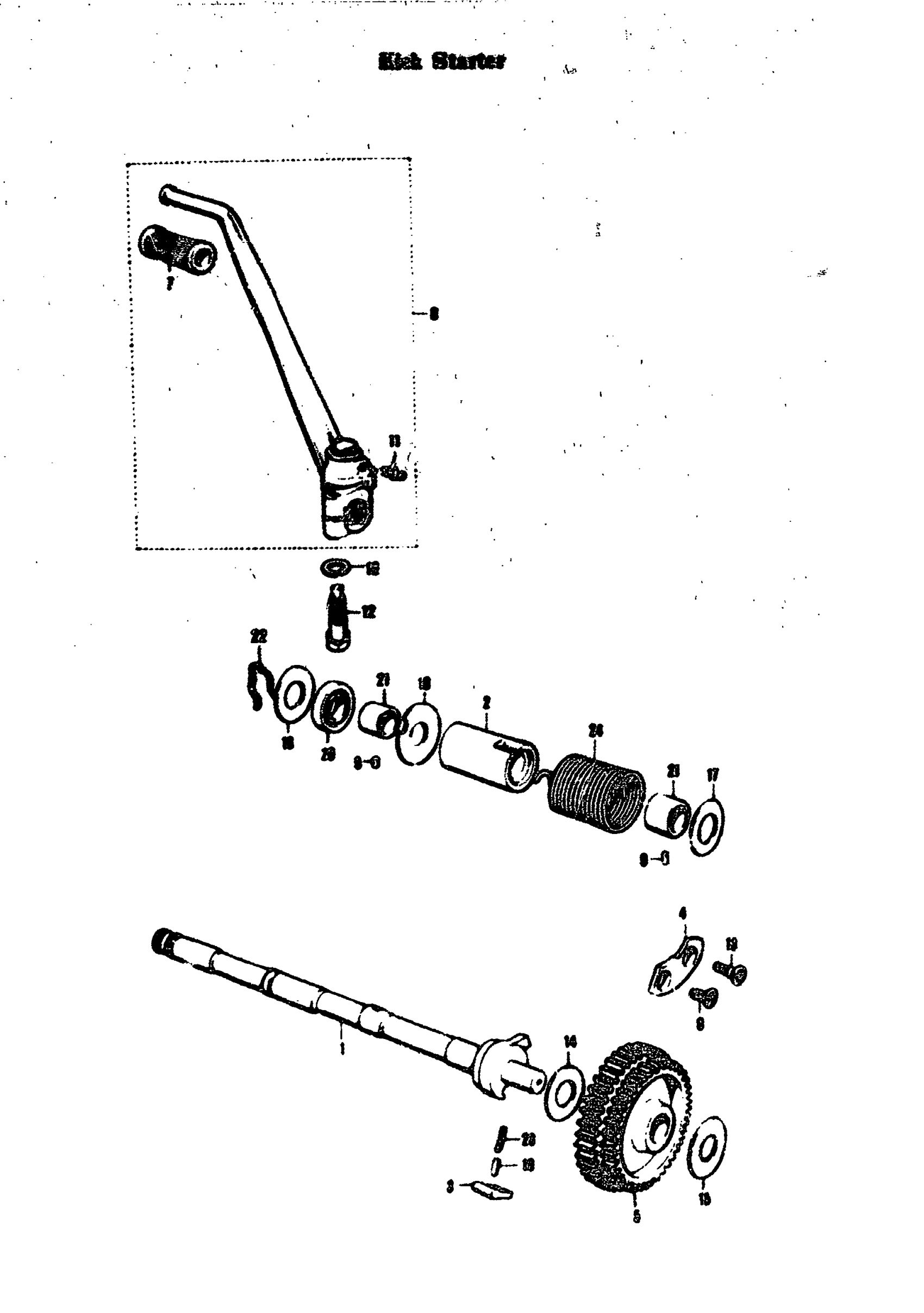

Suzuki T305 (1969) KICK STARTER Diagram

#

Description
Price

1

KICK STARTER SHAFT | TC305

26211-18000

Unavailable

2

KICK STRTER SHAFT RESOURCE SPR | TC305

26281-11000

Unavailable

3

KICK STARTER PAUL | TC305

26231-08001

Unavailable

4

KICK STARTER STOPPER | TC305

26232-11000

Unavailable

5

GEAR, KICK STARTER DRIVE | TC305 This part replaces 26240-18001.

26240-18002

Unavailable

6

KICK STARTER LEVER ASS'Y

26300-15000

Unavailable

7

RUBBER,KICK STA | TC305 This part replaces 26352-01000.

26352-01020

$3.25

8

SCREW This part replaces 02121-06168.

02122-06167

$1.49

9

DOWEL PIN

04221-04069

$2.12

10

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

11

GREASE NIPPLE

08351-11009

$7.51

12

KICK STARTER LEVER BOLT | O.D.=10(0.39) L=37.5(1.48)

09135-10002

Unavailable

13

KICK STARTER STOPPER SCREW | TC305

09139-06002

$2.38

14

KICK STARTER DRIVE GEAR INNER | TC305; ID=13(0.51) OD=31.5(1.24) T=1.5(0.06)

09160-13002

Unavailable

15

WASHER, DRIVE GEAR | TC305; ID=13(0.51) OD=31.5(1.24) T=1.3(0.05) This part replaces 09160-13005.

09160-13002

Unavailable

16

KICK STARTER SHAFT LEFT THRUST | TC305; ID=16(0.63) OD=33(1.30) T=1.6(0.06)

09160-16002

Unavailable

17

KICK STARTER SHAFT RIGHT THRUS | TC305; ID=16(0.63) OD=30.5(1.12) T=1.0(0.04)

09160-16003

$2.92

18

KICK STARTER SHAFT RETURN SPRI | TC305; ID=16(0.63) OD=38(1.50) T=1.2(0.05)

09166-16001

Unavailable

19

KICK STARTER PAUL ROLLER | TC305; O.D.=5.0(0.20)

09209-05011

$2.20

20

KICK STARTER SHAFT OIL SEAL | TC305; ID=16(0.63) OD=30(1.18) T=8.0(0.31)

09285-18001

Unavailable

21

KICK STARTER SHAFT BUSHING | TC305; ID=16(0.63) OD=22(0.87) T=17.5(0.69)

09300-16002

Unavailable

22

KICK STARTER SHAFT CIRCLIP | TC305

09384-16001

Unavailable

23

KICK STARTER PAWL SPRING | TC305

09440-04002

Unavailable

24

KICK STARTER SHAFT RETURN SPRI | TC305TC305

09448-37001

Unavailable
