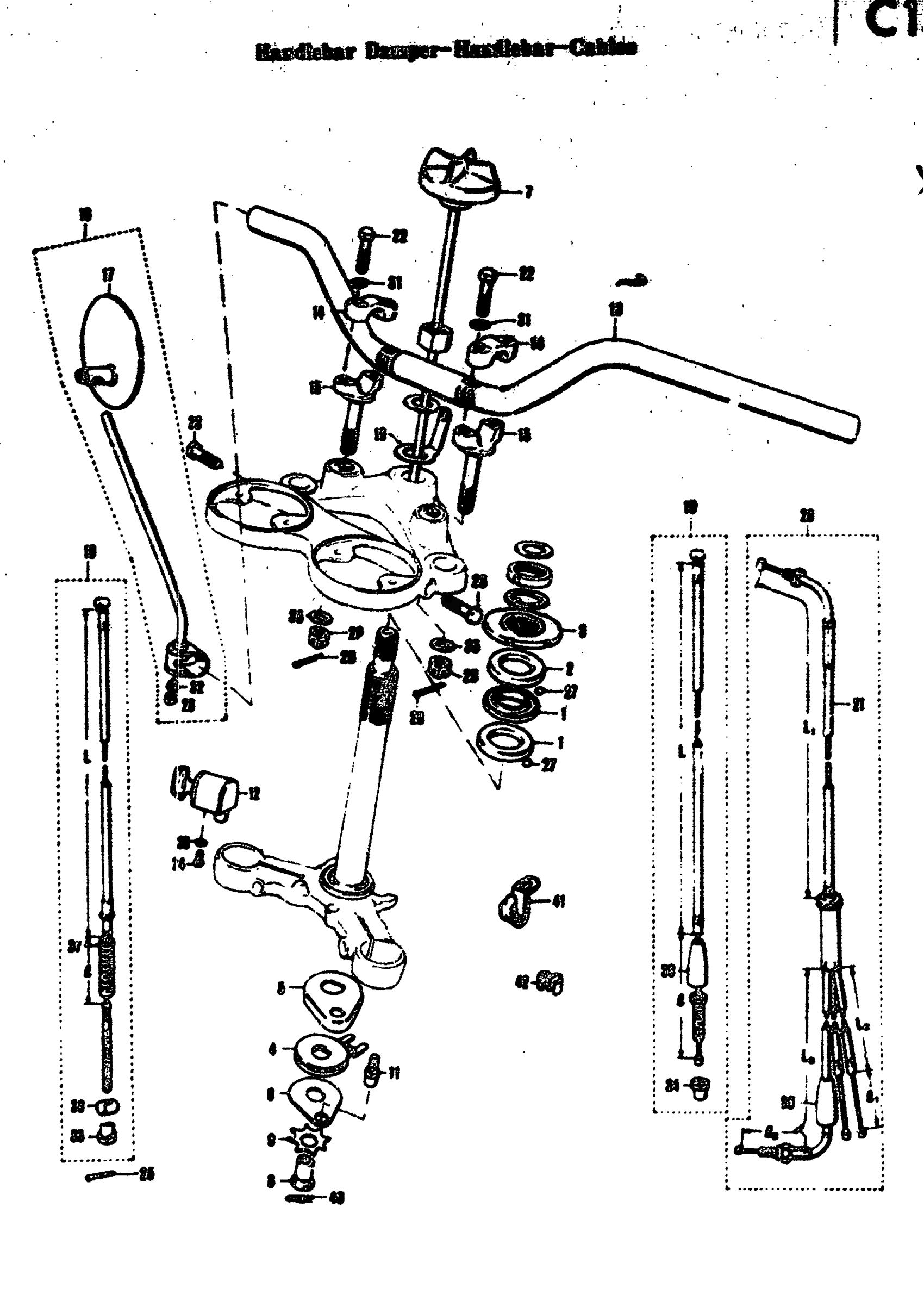

Suzuki T305 (1969) HANDLEBAR DAMPER-HANDLEBAR-CABLES Diagram

#

Description
Price

1

STEERING INNER RACE | TC305

51611-08000

Unavailable

2

STEERING OUTER RACE | TC305

51621-08000

Unavailable

3

NUT, STEERING STEM | TC305 This part replaces 51631-08010.

51631-08000

Unavailable

4

HANDLEBAR DAMPER CORK PLATE | TC305

51710-08100

Unavailable

5

HANDLEBAR DAMPER UPPER PLATE | TC305

51721-08100

Unavailable

6

HANDLEBER DAMPER LOWER PLATE | TC305

51722-08100

Unavailable

7

HANDLEBER DAMPER KNOB | TC305

51730-08100

Unavailable

8

HANDLEBER DAMPER SLEEVE HUB | TC305

51741-08100

Unavailable

9

HANDLEBER DAMPER SPRING | TC305

51742-08100

Unavailable

10

HANDLEBER DAMPER KNOB STOPPER | TC305

51744-08100

Unavailable

11

HANDLEBER DAMPER UPPER PLATE B | TC305TC305

51781-08100

Unavailable

12

STEERING LOCK ASS'Y | TC305

51900-03012

Unavailable

13

HANDLEBAR

56110-15002

Unavailable

14

CLAMP, HANDLEBAR UPPER | TC305 This part replaces 56211-15000.

56211-33000

Unavailable

15

CLAMP, HANDLEBAR LOWER | TC305 This part replaces 56221-15000.

56221-33000

Unavailable

16

REAR VIEW MIRROR ASS'Y | TC305

56500-08610

Unavailable

17

REAR VIEW MIRROR

56510-08610

Unavailable

18

FRONT BRAKE CABLE ASS'Y | TC305; L.=1160(45.67) l.=200(7.87)

58100-18000

Unavailable

19

CABLE,CLUTCH | TC305; L.-1050(41.34) l.=114(4.49) This part replaces 58200-15001.

58200-33601

Unavailable

20

CABLE ASSY, THROTTLE | L1=650(25.59) L2=280(11.02) L3=400(15.65) l1=87(3.43) l2=136(5.35) This part replaces 58300-18000.

58300-18600

Unavailable

21

HANDLEBAR SIDE THROTTLE CABLE

58310-15000

Unavailable

22

BOLT This part replaces 01221-08307.

01204-08307

$1.99

23

BOLT 10X16 This part replaces 01221-10167.

01204-10167

$3.20

24

SCREW This part replaces 02111-05108.

02112-05107

$1.49

25

COTTER PIN

04111-20128

Unavailable

26

COTTER PIN

04111-20258

Unavailable

27

STEEL BALL This part replaces 06111-08004.

06111-08003

$1.49

28

NUT This part replaces 08312-11088.

08310-00087

$2.13

29

NUT This part replaces 08314-11108.

08314-3110A

$1.99

30

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

31

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

32

WASHER This part replaces 08322-11088.

08322-01087

$2.13

33

.NUT | TC305 This part replaces 09150-06001.

09150-06010

$3.10

34

NUT | TC305 This part replaces 09159-08007.

08310-00087

$2.13

35

WASHER, UPPER, OUTER | TC305; ID.=10.5(0.41),O.D.=30(1.18) T.=2.3(0.09) This part replaces 09160-10006.

09160-10501

$2.33

36

.PIN (13X18) | TC305; O.D.=13(0.51) This part replaces 09209-13003.

09209-13018

$3.42

37

BRAKE CABLE BOOT | TC305

09287-05001

Unavailable

38

CLUTCH CABLE BOOT | TC305

09287-10001

Unavailable

39

THROTTLE CABLE BOOT | TC305

09287-10003

Unavailable

40

HANDLEBAR DAMPER CLIP | TC305

09385-06001

$3.10

41

CABLE CLIP BAND | TC305

09403-00031

Unavailable

42

CABLE CLIP | TC305

09408-00002

$2.30
