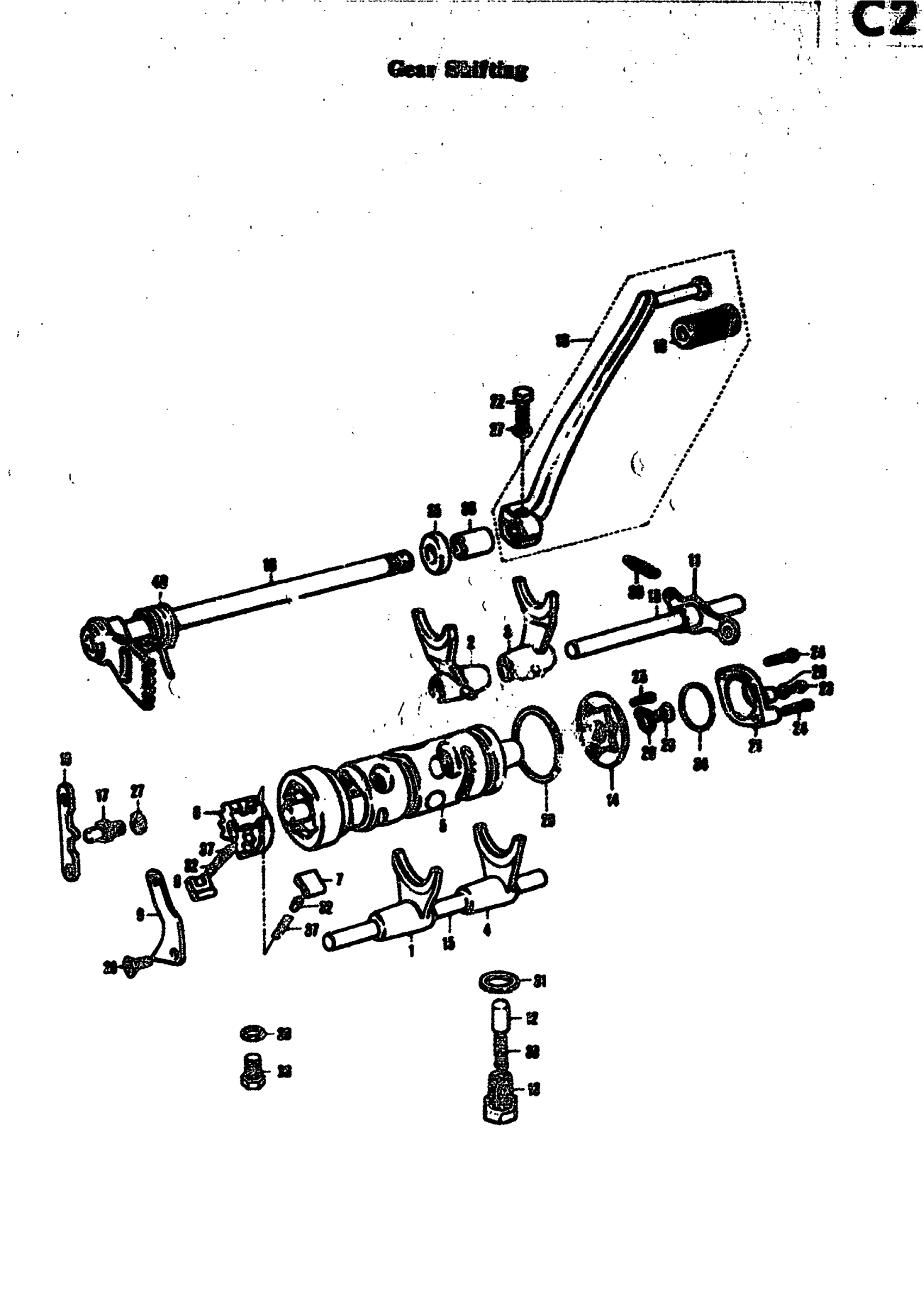

Suzuki T305 (1969) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, 5TH DRIVE GEAR SHIFTING | TC305 This part replaces 25211-18000.

25241-18000

Unavailable

2

3RD DRIVEN GEAR SHIFTING FORK | TC305

25221-18000

Unavailable

3

5TH DRIVEN GEAR SHIFTING FORK | TC305

25231-18000

Unavailable

4

5TH DRIVE GEAR SHIFTING FORK | TC305

25241-18000

Unavailable

5

CAM, GEAR SHIFTING | TC305 This part replaces 25310-18001.

25310-18004

Unavailable

6

GEAR, GEAR SHIFT CAM DRIVEN | TC305 This part replaces 25322-11000.

25322-31310

$26.93

7

PAWL, GEAR SHIFT NO.1 | TC305 This part replaces 25323-11000.

25323-34201

$7.22

8

PAWL, GEAR SHIFT NO.2 | TC305 This part replaces 25324-11000.

25324-34201

$7.22

9

GEAR SHIFTING CAM SIDE PLATE | TC305

25331-11001

$6.38

10

GEAR SHIFTING CAM GUIDE | TC305

25341-18000

Unavailable

11

GEAR SHIFTING CAM STOPPER | TC305

25350-18000

Unavailable

12

GEAR SHIFTING CAM STOPPER PIN | TC305

25351-18001

Unavailable

13

HOLDER, STOPPER | TC305 This part replaces 25352-11000.

25352-11010

$7.22

14

PLATE, CAM STOPPER | TC305 This part replaces 25381-20000.

25381-20001

Unavailable

15

GEAR SHIFTING FORK SHAFT | TC305

25411-18000

Unavailable

16

NO DESCRIPTION AVAILABLE | TC305 This part replaces 25510-18000.

25510-18X00

Unavailable

17

STOPPER, ARM | TC305 This part replaces 25671-01000.

25671-01011

$4.48

18

LEVER ASSY, GEAR SHIFTING | TC305 This part replaces 25600-18000.

25600-18001

Unavailable

19

.RUBBER,GEAR SHIFT PEDAL | TC305 This part replaces 25652-03201.

25652-16510

$3.74

20

CONTACT, SWITCH | TC305 This part replaces 37711-01000.

37711-05101

$4.21

21

NEUTRAL INDICATOR SWITCH | TC305

37721-15002

Unavailable

22

BOLT, REAR This part replaces 01121-08208.

01500-08207

$2.53

23

SCREW This part replaces 02111-03048.

02112-03047

$2.15

24

CROSS HEAD SCREW

02111-05208

Unavailable

25

CROSS HEAD SCREW

02121-04128

Unavailable

26

CROSS HEAD SCREW

02121-06128

Unavailable

27

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

28

WASHER This part replaces 08322-21038.

08322-01037

$1.93

29

GEAR SHIFTING CAM THRUST WASHE | TC305; ID.=45(1.77).O.D.=40(1.57) T.=1.0(0.04)

09160-40001

Unavailable

30

HOLE PLUG GASKET | TC305

09168-10002

$2.13

31

GEAR SHIFTING CAM STOPPER BOLT | TC305

09168-14004

$1.83

32

GEAR SHIFTING PAWL ROLLER | TC305; O.D.=5.0(0.20),L.=8.0(0.31)

09261-05003

$1.54

33

HOLE PLUG | TC305

09247-10001

$2.20

34

NEUTRAL INDICATION SWITCH O RI | TC305; ID=27.7(1.10) D=1.9(0.08)

09280-28002

$2.08

34

NEUTRAL INDICATOR SWITCH GASKE | TC305; UP TO E.NO.T305=12378

37712-15000

Unavailable

35

OIL SEAL (12X22X9) | TC305; ID=12(0.47) OD=22(0.87) W=7(0.28) This part replaces 09285-12001.

09285-12006

$6.32

36

GEAR SHIFTING SHAFT BUFFER | TC305

09320-13001

Unavailable

37

GEAR SHIFTING PAWL ROLLER SPRI | TC305

09440-04003

$1.54

38

GEAR SHIFTING CAM STOPPER SPRI | TC305

09440-03010

$2.86

39

NEUTRAL STOPPER SPRING | TC305

09443-09001

Unavailable

40

GEAR SHIFTING SHAFT RETURN SPR | TC305

09444-26001

$5.88
