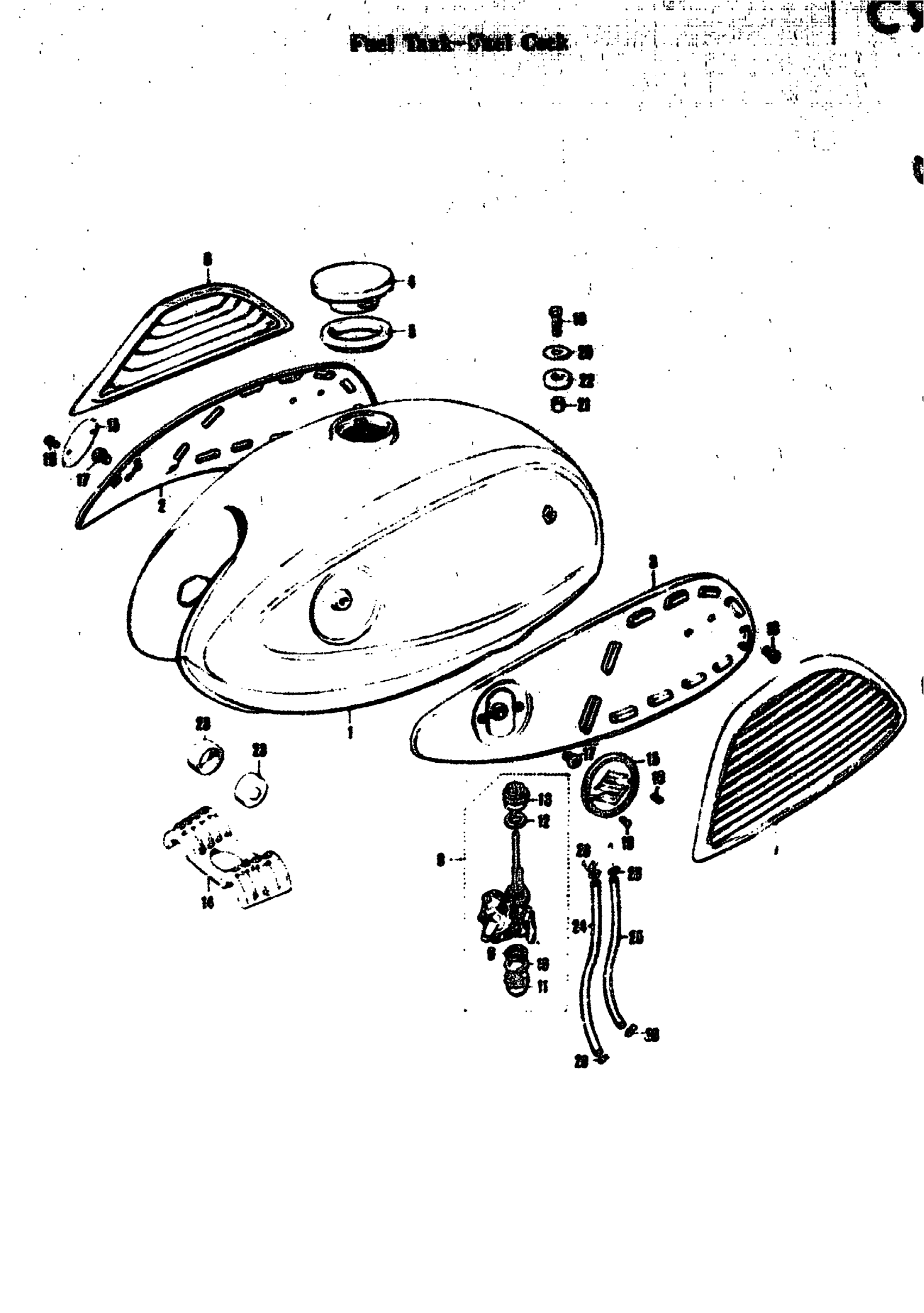

Suzuki T305 (1969) FUEL TANK-FUEL COCK Diagram

FUEL TANK | COLOR: SILVER METALLIC

44110-18000-046

Unavailable

FUEL TANK RIGHT SIDE COVER

44170-18000

Unavailable

FUEL TANK LEFT SIDE COVER

44180-18000

Unavailable

CAP, FUEL TANK | TC305 This part replaces 44210-11000.

44210-36200

Unavailable

FUEL TANK CAP GASKET | TC305

44248-11000

Unavailable

RIGHT KNEE GRIP

44251-18000

Unavailable

LEFT KNEE GRIP

44252-18000

Unavailable

COOK ASSY, FUEL | TC305 This part replaces 44300-15051.

44300-18450

Unavailable

FUEL COCK FILTER NET | TC305

44344-15050

Unavailable

FUEL COCK FILTER CUP GASKET | TC305; I.D.=19.5(0.77), O.D.=25.5(1.00) T.=2.0(0.08)

44346-10050

Unavailable

FUEL COCK FILTER CUP | TC305

44347-10050

Unavailable

FUEL COCK GASKET | TC305; I.D.=14(0.55),O.D.=22(0.87)T.=2.0(0.08)

44348-10050

Unavailable

FUEL COCK JOINT NUT | TC305

44349-15050

Unavailable

FUEL TANK REAR CUSHION NO.1 | TC305

44541-18000

Unavailable

FUEL TANK EMBLENS

68110-18000

Unavailable

SMALL HEXAGON BOLT

01121-08258

Unavailable

CROSS HEAD SCREW

02111-06088

Unavailable

SCREW This part replaces 02141-05068.

09125-05117

$2.72

SCREW | TC305; 3 SCREW, L=8.0(0.31) This part replaces 09125-03106.

09125-03104

Unavailable

WASHER, EXHAUST SUPPORT | TC305; I.D.=8.5(0.38),O.D.=29(1.14)T.=1.5(0.06) This part replaces 09160-08002.

09160-08135

$2.35

SPACER (8.5X12X11) | TC305; I.D.=9.0(0.39),O.D.=12(0.47)L.=11(0.43) This part replaces 09180-08001.

09180-08189

$2.58

FUEL TANK REAR CUSHION NO.2 | TC305; I.D.=12(0.47),O.D.=30(1.18)T.=7.5(0.29)

09320-12002

Unavailable

FUEL TANK FRONT CUSHION | TC305; I.D.=9.5(0.37),O.D.=27(1.06)W.=13(0.51)

09329-10002

Unavailable

.HOSE | TC305; L.=180(7.09) This part replaces 09343-05018.

09352-50006-600

$7.48

.HOSE | TC305; L.=135(5.31) This part replaces 09343-05025.

09352-50006-600

$7.48

FUEL HOSE CLIP | TC305

09385-08001

Unavailable
