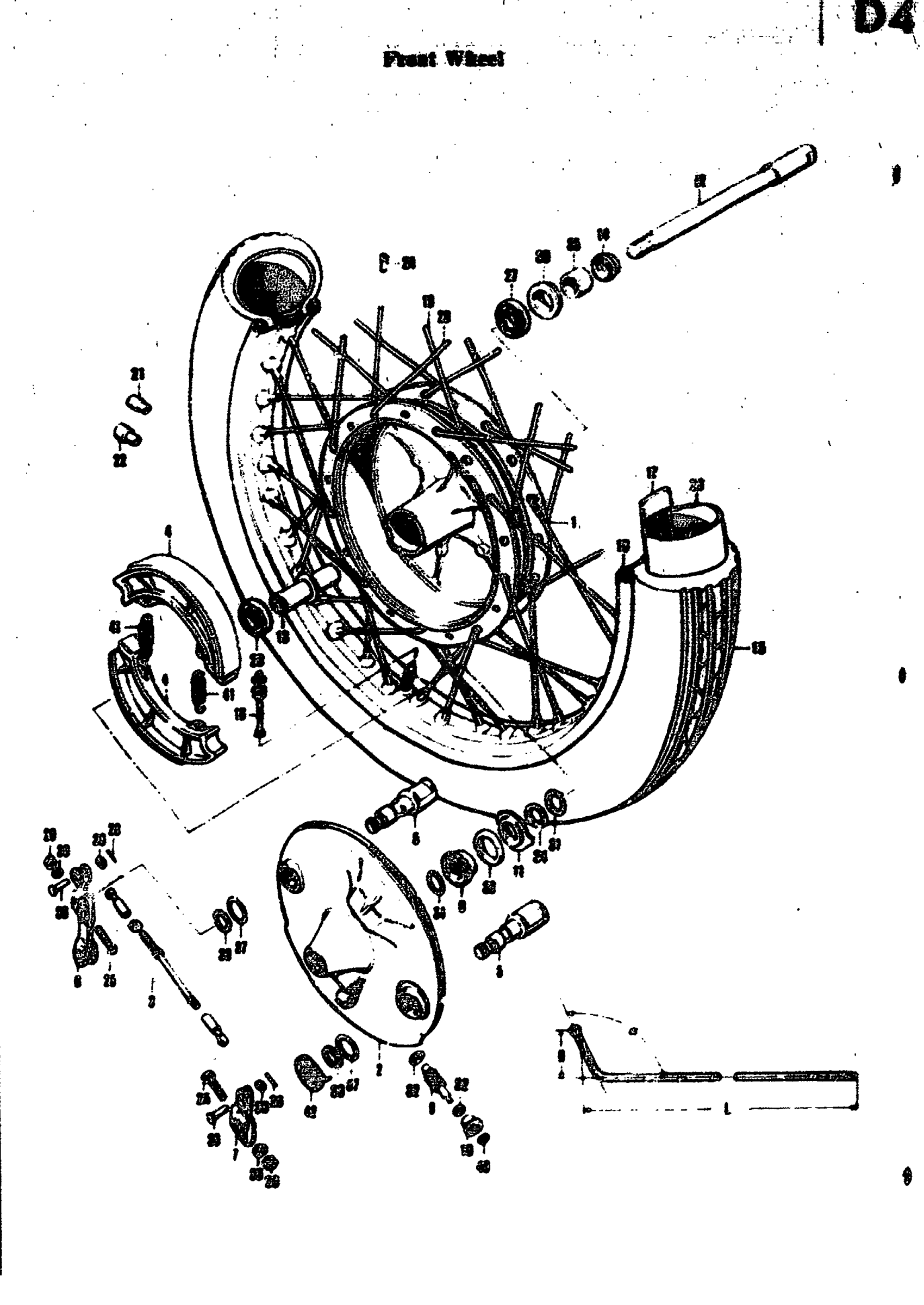

Suzuki T305 (1969) FRONT WHEEL Diagram

#

Description
Price

1

FRONT HUB ASS'Y | TC305; INCLUDES REF.NON. 1-14 25-42

54100-18000

Unavailable

1

FRONT HUB DRUM | TC305

54110-11600

Unavailable

2

FRONT HUB PANEL | TC305

54210-11000

Unavailable

3

BRAKE LEVER ROD SET | TC305TC305 This part replaces 54400-11835.

54400-18840

Unavailable

4

BRAKE SHOE | TC305

54410-11000

Unavailable

5

BRAKE CAM SHAFT | TC305

54400-11002

Unavailable

6

FRONT BRAKE CAM SHAFT FIRST LE | TC305TC305

54450-11000

Unavailable

7

FRONT BRAKE CAM SHAFT SECOND L | TC305TC305

54461-11000

Unavailable

8

GEAR, SPEEDOMETER | TC305 This part replaces 54611-11000.

54611-11001

Unavailable

9

SPEEDOMETER DRIVE GEAR | TC305

54621-11000

Unavailable

10

BUSH | TC305 This part replaces 54632-11020.

54632-49200

Unavailable

11

DRIVER | TC305 This part replaces 54660-11030.

54660-11031

$12.67

12

FRONT AXLE | TC305; 14 SCREW,L=229(8.62)

54711-15000

Unavailable

13

FRONT HUB BEARING SPACER | TC305

54730-11000

Unavailable

14

FRONT HUB DUST SEAL | TC305; LD=22(0.87) OD=33(1.30) W=6.0(0.24)

54892-11000

Unavailable

15

FRONT TIRE | SIZE=3.00"-18"

55100-18010

Unavailable

16

INNER TUBE VALVE | TC305

55250-01000

Unavailable

17

IN TUBE PROTECT | TC305; SIZE=2.75"-18" This part replaces 55261-11010.

55261-26F10

$4.39

18

WHEEL RIM | SIZE=1.60Ax18"

55311-11020

Unavailable

18

SPOKE SET | TC305; INCLUDES REF.NO.19,20 & 36

55320-11819

Unavailable

19

INNER SPOKE | TC305; OD=3.2(0.13) L=152(5.98) a=95.5 H=8.5(0.33)

55321-11020

Unavailable

20

OUTER SPOKE | TC305; OD=3.2(0.13) L=151.2(5.96)a=80 H=10.5(0.4)

55322-11020

Unavailable

21

BALANCER WHEEL (15G) | TC305 This part replaces 55411-11000.

55411-26G00

$7.73

22

BALANCER WHEEL (30G) | TC305 This part replaces 55412-11000.

55413-41F00

$7.50

23

INNER TUBE | TC305; INCLUDES REF.NO.16 SIZE=3.00"-18"

65200-11600

Unavailable

24

SPOKE NIPPLE | TC305

65325-03020

Unavailable

25

HEXAVON BOLT | .04

01111-06308

Unavailable

26

PIN | .02 This part replaces 04111-12108.

04111-1210A

$1.50

27

BALL BEARING | 1.73

08113-60020

$16.01

28

BEARING, LH | 1.85 This part replaces 08143-62020.

08143-62027

$16.01

29

.NUT | .03 This part replaces 08311-11068.

08310-00067

$2.13

30

WASHER | .02 This part replaces 08322-21068.

08322-01067

$2.13

31

CIRCLIP | .11 This part replaces 08331-11229.

08331-31229

$2.48

32

WASHER,5.1X9X0. | TC305; ID=5.1(0.02) OD=9.0(0.35 T=0.4(0.02) This part replaces 09160-05001.

09160-05001-A05

$1.87

33

WASHER | TC305; ID=15(0.59) OD=24(0.94) T=1.6(0.06) This part replaces 09160-15001.

09160-15048

$2.56

34

SPEEDOMETER DRIVEN GEAR THRUST | TC305; ID=22.5(0.89) OD=27(1.06) T=1.0(0.04)

09160-22001

$2.47

35

FRONT AXLE SPACER | TC305; ID=15(0.59) OD=22(0.87) W=25.4(1.00)

09180-15001

Unavailable

36

BRAKE CAM LEVER POINT PIN

09200-06001

Unavailable

37

O RING (ID:14.8,D:2.40) | TC305; ID=14.8(0.58) OD=19.6(0.77)T=2.4(0.09) This part replaces 09280-15001.

09280-15003

$1.76

38

FRONT HUB DRUM OIL SEAL | TC305; ID=22(0.87) OD=33(1.30) W=6.0(0.24)

09284-22001

Unavailable

39

SEAL,OIL(26X38X | TC305; ID=26(1.02) OD=38(1.50) W=4.0(0.16) This part replaces 09285-26001.

09285-26005

Unavailable

40

SPEEDOMETER DRIVE GEAR OIL SEA | TC305; ID=4.8(0.19) OD=10(0.39) W=3.0(0.12)

09289-06001

$4.58

41

BRAKE SHOE SPRING | TC305

09443-10001

Unavailable

42

SPRING | TC305 This part replaces 09448-30001.

09448-30001-XC0

Unavailable
