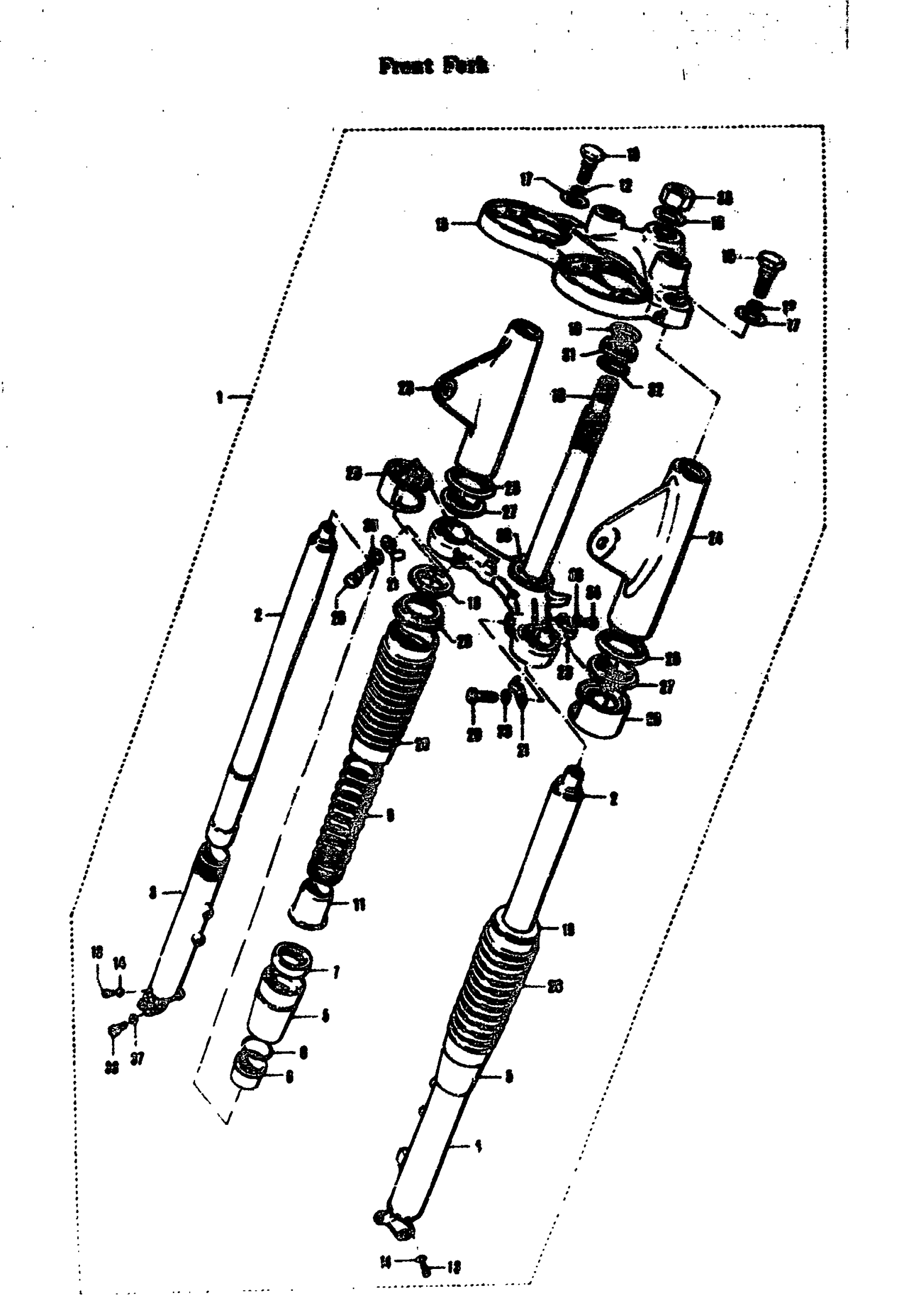

Suzuki T305 (1969) FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASS'Y | TC305; PRIMARY PAINTED

51100-18010

Unavailable

2

FORK INNER TUBE | TC305

51110-11010

Unavailable

3

FORK RIGHT OUTER TUBE | TC305

51130-18010

Unavailable

4

FORK LEFT OUTER TUBE | TC305

51140-18010

Unavailable

5

FORK OUTER TUBE NUT | TC305

51150-15010

Unavailable

6

FORK INNER TUBE GUIDE | TC305

51152-11010

Unavailable

7

OIL SEAL | TC305; I.D.=34(1.34), O.D.=46(1.81)W=10(0.39) This part replaces 51153-11010.

51153-16511

Unavailable

8

OIL SEAL "O" RING | TC305; I.D.=39.3(1.55),O.D.=46.3(1.78) T.=3.0(0.12)

51154-11010

Unavailable

9

FRONT FORK SPRING | TC305

51171-11010

Unavailable

10

FORK SPRING SPACER | TC305

51172-11010

Unavailable

11

FORK DUST SEAL | TC305

51173-11010

Unavailable

12

FORK FITTING BOLT "O" RING | TC305; I.D.=8.8(0.35),O.D.=13.6(0.54) T.=2.4(0.09)

51181-11010

Unavailable

13

FORK OIL DRAIN PLUG | TC305

51182-03621

Unavailable

14

FORK OIL DRAIN PLUG GASKET | TC305; I.D.=4.2(0.17),O.D.=7.3(0.29) T.=1.5(0.06)

51183-03010

$2.07

15

STEERING STEM HEAD | TC305

51310-15010

Unavailable

16

FORK FITTING BOLT | TC305

51351-11011

Unavailable

17

FORK FITTING WASHER | TC305

51354-11010

Unavailable

18

STEERING STEM LOWER WASHER | TC305; I.D.=18(0.71),O.D.=30(1.18)T.=2.3(0.09)

51356-11010

Unavailable

19

STEERING STEM | TC305; INCLUDES REF.NO.30

51410-18010

Unavailable

20

FORK INNER TUBE FITTING BOLT | TC305; 10SCREW,L.=45(1.77)

51451-15010

Unavailable

21

SPEEDOMETER CABLE CLIP | TC305

51452-08010

Unavailable

22

BRAKE CABLE CLIP | TC305

51453-03010

$5.50

23

HEAD LAMP RIGHT BRACKET | TC305; PRIMARY PAINTED

51530-18010

Unavailable

24

HEAD LAMP LEFT BRACKET | TC305; PRIMARY PAINTED

51540-18010

Unavailable

25

HEAD LAMP BRACKET SEAT | TC305

51551-11010

Unavailable

26

HEAD LAMP BRACKET CHROME BAND | TC305

51552-11010

Unavailable

27

HEAD LAMP BRACKET SHOCK DAMPER | TC305

51553-15010

Unavailable

28

FORK SPRING COVER BOOT | TC305

51571-11010

Unavailable

29

FORK SPRING GUIDE | TC305

51573-11010

Unavailable

30

STEERING OUTER RACE | TC305

51621-08000

Unavailable

31

NUT, STEERING STEM | TC305 This part replaces 51631-08010.

51631-08000

Unavailable

32

STEERING STEM LOCK WASHER | TC305

51641-08010

Unavailable

33

SMALL HEXAGON BOLT

01121-08258

Unavailable

34

CROSS HEAD SCREW

02111-06108

Unavailable

35

NUT This part replaces 08312-11188.

08310-0018A

$3.30

36

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

37

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

38

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84
