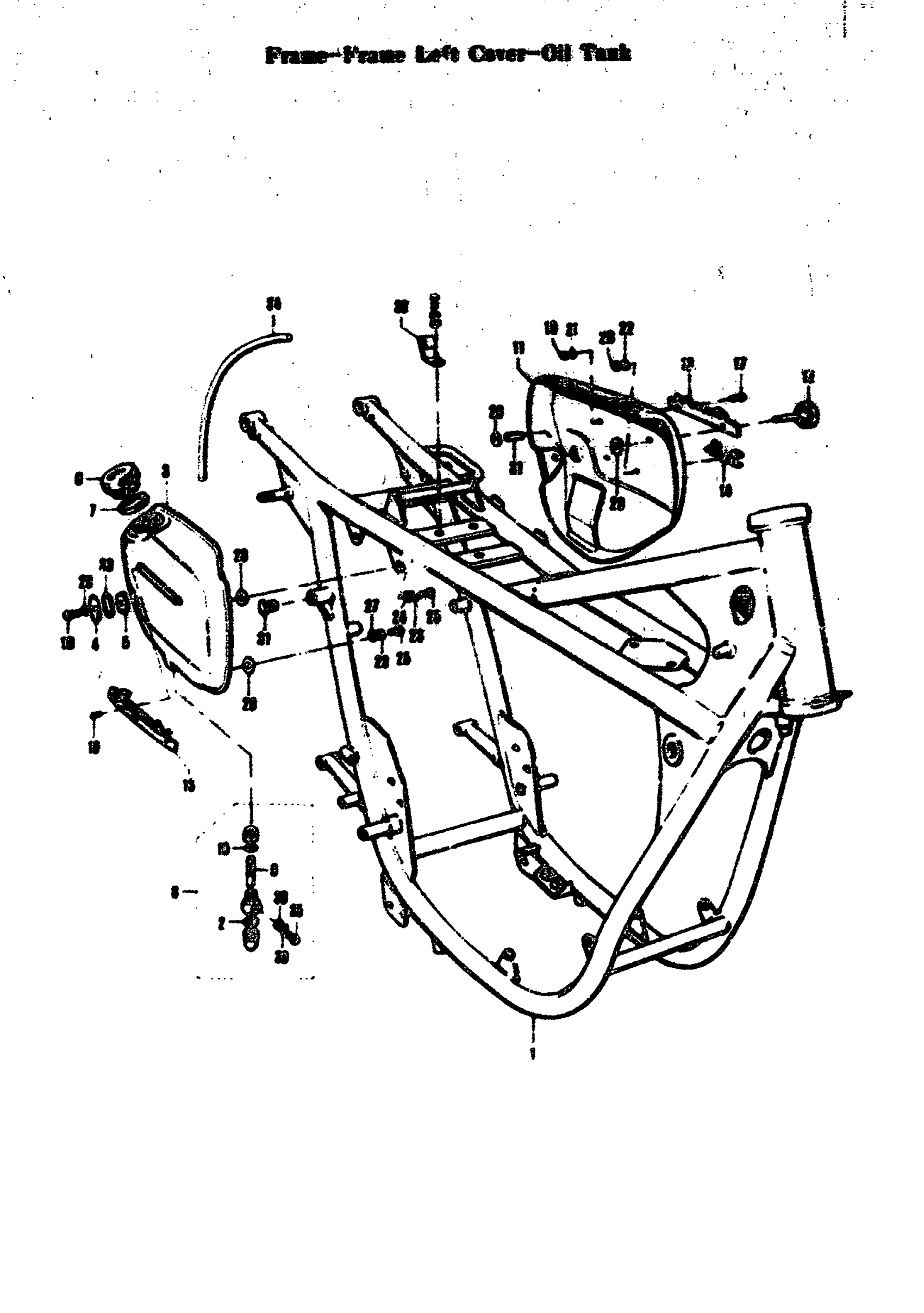

Suzuki T305 (1969) FRAME-FRAME LEFT COVER-OIL TANK Diagram

#

Description
Price

1

FRAME | TC305; COLOR:BLACK

41100-18300-019

Unavailable

2

STRAINER CAP GASKET | TC305; LD=13.5(0.53) OD=19(0.75) T=1.5(0.06)

44346-02030

Unavailable

3

OIL TANK | TC305; PRIMARY PAINTED

44610-18000

Unavailable

4

OIL LEVEL INSPECTION LENS | TC305

44641-11000

Unavailable

5

LENS SET, OIL INSPECTION | TC305 This part replaces 44642-11000.

44640-11843

Unavailable

6

OIL TANK CAP | TC305

44651-11040

$15.05

7

GASKET,OIL TANK | TC305; ID=35 (1.38) OD=46(0.82)T=3.5(0.14) This part replaces 44661-11000.

44661-11001

$3.66

8

OIL TANK OUTLET ASS'Y | TC305

44700-11827

Unavailable

9

OIL TANK OUTLET STRAINER NET | TC305

44720-11030

$5.38

10

OIL TANK OUTLET GASKET | TC305; ID=8.2(0.33) OD=13.5(0.53) T=2.5

44733-11030

$2.28

11

FRAME LEFT COVER | TC305; PRIMARY PAINTED

47210-18000

Unavailable

12

FRAME COVER KNOB | TC305

47230-18000

Unavailable

13

FRAME COVER EMBLEM | TC305; "SUZUKI"

68131-11001

Unavailable

14

FRAME COVER EMBLEM | TC305; "305"

68140-18000

Unavailable

15

HEXAGON BOLT

01111-06168

Unavailable

16

SCREW This part replaces 02111-03048.

02112-03047

$2.15

17

CROSS HEAD SCREW

02111-03088

Unavailable

18

SCREW This part replaces 02111-05158.

02112-05167

$1.97

19

NUT This part replaces 08311-11038.

08310-0003B

$2.83

20

NUT This part replaces 08311-11048.

08310-00047

$2.23

21

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

22

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

23

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

24

WASHER This part replaces 08322-21068.

08322-01067

$2.13

25

BOLT | TC305; 6SCREW, L=14(0,55) This part replaces 09100-06026.

09100-06067

Unavailable

26

FRAME COVER KNOB STOPPER | TC305; OD=18(0.01) T=1.6(0.06)

09152-06001

$1.75

27

WASHER | TC305; ID=6.5(0.26) OD=18(0.71) T=1.6(0.06) This part replaces 09160-06006.

09160-06084

$1.78

28

OIL TANK CUSHION | TC305; ID=8.0(0.31) OD=22(0.87) T=3.0(0.12)

09161-06002

Unavailable

29

OIL LEVEL INSPECTION GASKET | TC305; ID=5.0(0.20) OD=9.5(0.37) T=1.0(0.04)

09168-05001

$1.98

30

GASKET | TC305; ID=6.2(0.24) OD=12(0.47) T=1.5(0.06) This part replaces 09168-06002.

09168-06004

$1.49

31

FRAME COVER KNOB SPACER | L=23(0.91)

09180-08024

Unavailable

32

CAP This part replaces 09250-09001.

09250-09008

$1.54

33

OIL LEVEL INSPECTION LENS "O" | TC305; ID=23(0.91) OD=29(1.14) T=3.0(0.12)

09280-23001

Unavailable

34

OIL BREATHER HOSE | TC305; ID=5(0.20) OD=8.0(0.31) T=450(17.72)

09344-05010

Unavailable

35

OIL TANK OUTLET UNION BOLT | TC305; 6SCREW L=16(0.63)

09360-06003

$3.76

36

OIL BREATHER HOSE CLIP | TC305

09403-00004

Unavailable
