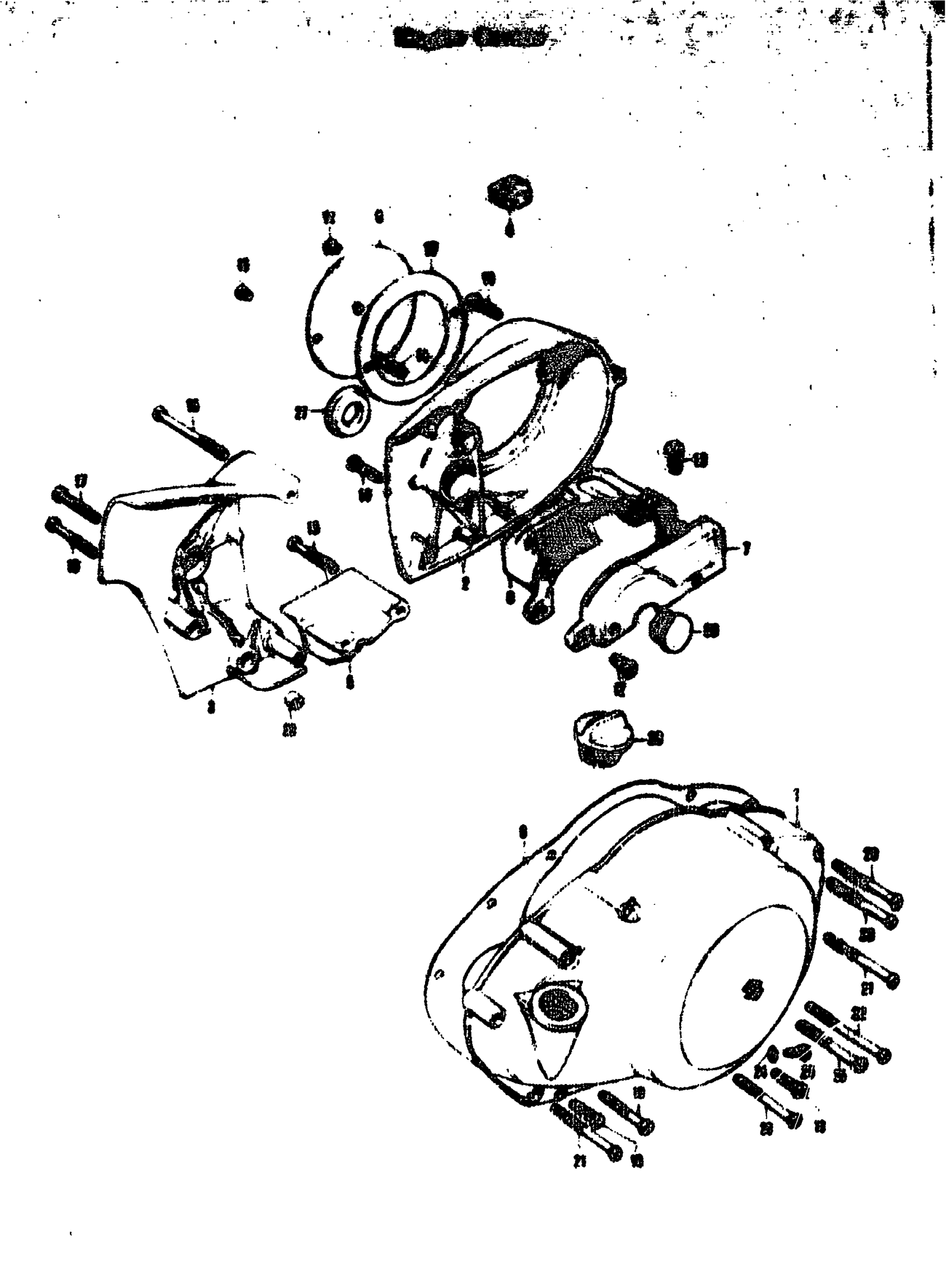

Suzuki T305 (1969) ENGINE COVERS Diagram

#

Description
Price

1

CRANKCASE RIGHT COVER | TC305

11341-18020

Unavailable

2

CRANKCASE LEFT COVER | TC305

11351-12900

Unavailable

3

ENGINE SPROCKET COVER | TC305

11361-18680

Unavailable

4

CLUTCH CABLE ADJUSTING HOLDER | TC305

11371-10000

Unavailable

5

CAP, GENERATOR INSPECTION | TC305 This part replaces 11381-10000.

11381-18100

Unavailable

6

OIL PUMP COMP NO.1 | TC305

11411-18000

Unavailable

7

OIL PUMP COMP NO.2 | TC305

11412-18000

Unavailable

8

NEUTRAL INDICATOR SWITCH COVER | TC305

11461-18000

Unavailable

9

GASKET,CLUTCH C | TC305 This part replaces 11482-18000.

11482-18001

Unavailable

10

DYNAMO INSPECTION CAP GASKET | TC305

11491-10000

Unavailable

11

CROSS HEAD SCREW

02111-05128

Unavailable

12

CROSS HEAD SCREW

02111-05128

Unavailable

13

SCREW This part replaces 02111-05168.

02112-05167

$1.97

14

CROSS HEAD SCREW

02111-05308

Unavailable

15

SCREW This part replaces 02111-05458.

02112-05457

$1.86

16

CROSS HEAD SCREW

02111-06558

Unavailable

17

CROSS HEAD SCREW

02111-06808

Unavailable

18

SCREW This part replaces 02112-06208.

02112-06207

$1.78

19

SCREW (6X40) This part replaces 02112-06408.

02112-06407

$1.78

20

6X50 CROSS SCRE This part replaces 02112-06508.

02112-06507

$1.99

21

SCREW This part replaces 02112-06558.

02112-06557

$2.53

22

SCREW This part replaces 02112-06658.

02112-06657

$2.62

23

DOWEL PIN

04211-09129

$1.65

24

OIL LEVEL PUG GASKET | ID=6.2(0.24) OD=11(0.43) T=1.0(0.04)

09168-06001

$1.49

25

OIL LEVEL PLUG | TC305; 6SCREW, L=12(0.47)

09247-06001

Unavailable

26

OIL PUMP INSPECTION CAP | TC305

09250-20003

$2.02

27

CLUTCH RELEASE SCREW CAP | TC306

09250-30003

$3.89

28

PLUG SET This part replaces 09259-20003.

09200-20811

$4.02
