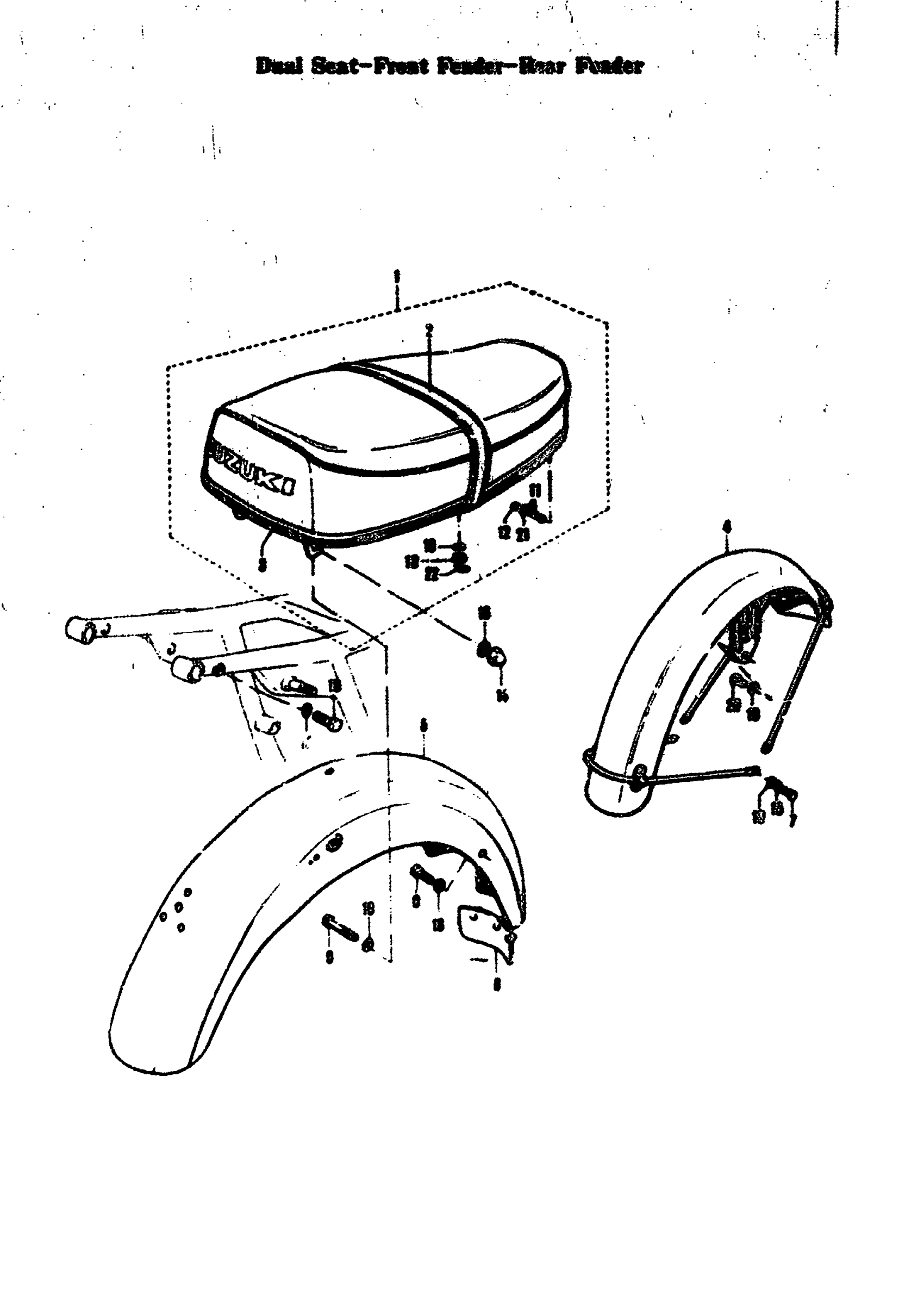

Suzuki T305 (1969) DUAL SEAT-FRONT FENDER-REAR FENDER Diagram

#

Description
Price

1

DUAL SEAT ASS'Y

45100-18000

Unavailable

2

DUAL SEAT PASSENGER STRAP | TC305

45180-18200

Unavailable

3

DUAL SEAT RIM

45191-18000

Unavailable

4

FRONT FENDER | CHROME-PLATED

53110-18000

Unavailable

5

REAR FENDER | CHROME-PLATED

63110-18000

Unavailable

6

REAR FENDER MUD GUARD | TC305

63411-11000

Unavailable

7

HEXAGON BOLT

01111-06128

Unavailable

8

SMALL HEXAGON BOLT

01121-08128

Unavailable

9

BOLT This part replaces 01121-08458.

01500-08453

$2.50

10

BOLT 10X16 This part replaces 01221-10167.

01204-10167

$3.20

11

NO DESCRIPTION AVAILABLE This part replaces 02141-03208.

02142-03208

Unavailable

12

NUT This part replaces 08311-11038.

08310-0003B

$2.83

13

NUT This part replaces 08311-31088.

08310-00087

$2.13

14

NUT This part replaces 08313-11087.

08313-10087

$2.28

15

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

16

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

17

LOCK WASHER This part replaces 08321-21106.

08321-0110A

$1.84

18

WASHER This part replaces 08322-11088.

08322-01087

$2.13

19

WASHER This part replaces 08322-21068.

08322-01067

$2.13

20

BOLT | TC305; 8 SCREW, L=10(0.39) This part replaces 09100-08055.

01500-0812A

$2.28

21

DUAL SEAT RIM WASHER

09160-03001

Unavailable

22

DUAL SEAT PASSENGER STRAP CLIP | TC305

09385-06001

$3.10
