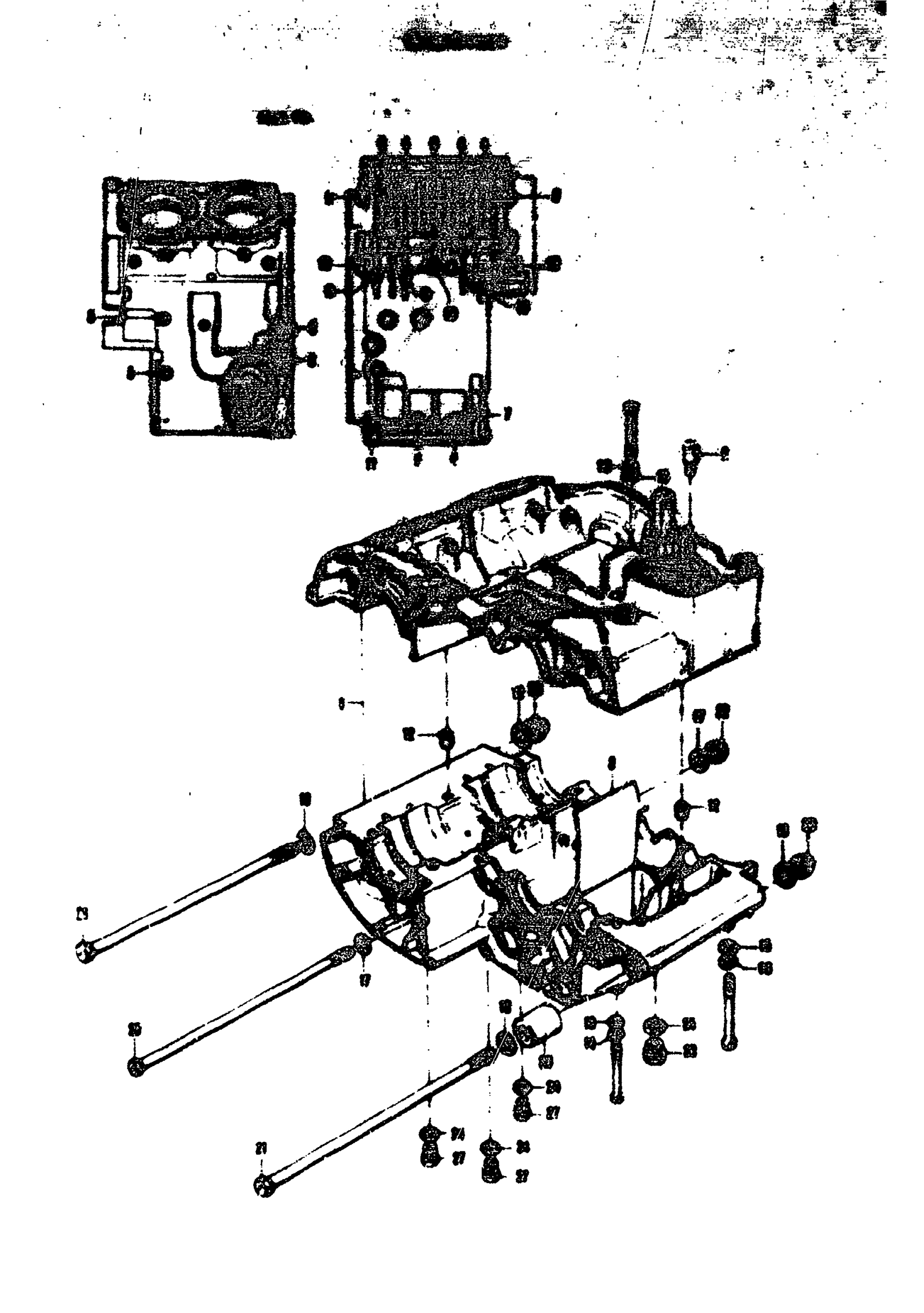

Suzuki T305 (1969) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY | TC305; INCLUDES REF NOS 4~16,19

11333-18001

Unavailable

2

BREATHER PLUG | TC305

24821-04300

Unavailable

3

TRANSMISSION OIL DEFLECTOR | TC305

24629-18000

Unavailable

4

BOLT This part replaces 01112-06558.

01500-0655B

$2.92

5

STRONG HEXAGON BOLT

01112-06008

Unavailable

6

STRONG HEXAGON BOLT

01112-08858

Unavailable

7

BOLT This part replaces 01112-06808.

01500-0685B

$3.85

8

STRONG HEXAGON BOLT

01112-06058

Unavailable

9

BOLT This part replaces 01122-08658.

01500-0865B

$3.49

10

BOLT This part replaces 01122-08708.

01500-0870B

$3.49

11

BOLT This part replaces 01122-08758.

01500-0875B

$4.10

12

DOWEL PIN

04211-11129

$1.76

13

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

14

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

15

WASHER This part replaces 08322-21068.

08322-01067

$2.13

16

WASHER This part replaces 08322-11088.

08322-01087

$2.13

17

WASHER This part replaces 08322-11108.

08322-01107

$2.15

18

WASHER This part replaces 08322-11128.

08322-01127

$1.84

19

CRASHCASE BOLT | TC305

09100-08023

Unavailable

20

BOLT (10x220) | TC305; 10SCREW, L=220(8.66) This part replaces 09100-10036.

09100-10170

Unavailable

21

ENGINE MOUNTING BOLT 'B' | TC305; 12SCREW, L=222(8.74)

09104-12105

Unavailable

22

SAFETY LOCK NUT | TC305

09159-10001

Unavailable

23

SAFETY LOCK NUT | TC305

09159-12102

$3.23

24

CRANK DRAIN PLUG GASKET | TC305; ID=10.1(0.04) OD=14.0(0.56)

09168-10002

$2.13

25

OIL DRAIN PLUG GASKET | TC305

09168-14002

$2.26

26

ENGINE REAR MOUNTING SPACER | TC305; L=30.4(1.20)

09180-12028

Unavailable

27

CRANK DRAIN PLUG | TC305; 10SCREW, L=12(0.47)

09247-10001

$2.20

28

OIL DRAIN PLUG | TC305; 14SCREW, L=12(0.47)

09247-14006

Unavailable
