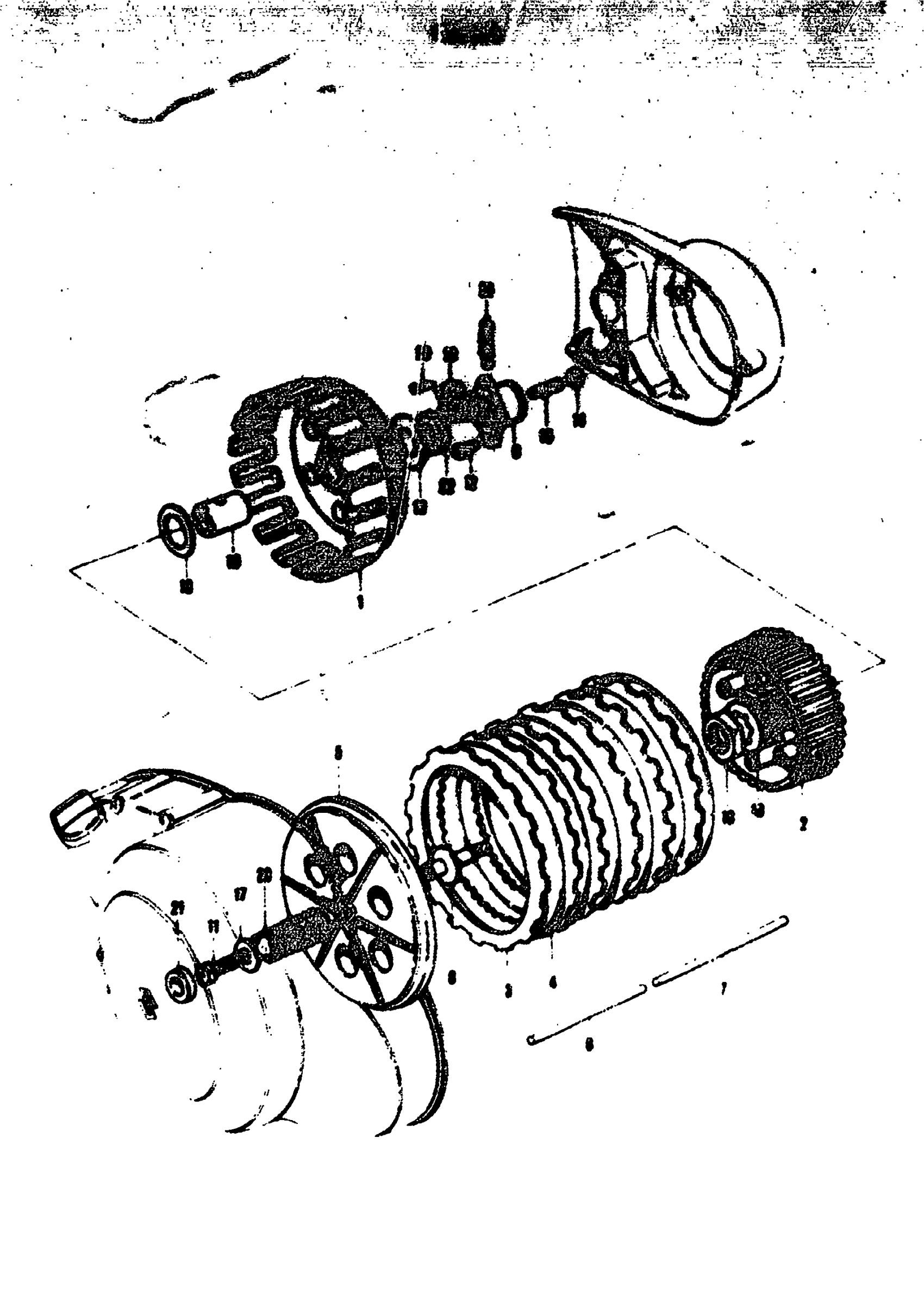

Suzuki T305 (1969) CLUTCH Diagram

#

Description
Price

1

PRIMARY DRIVEN GEAR ASS'Y | TC305

21200-18000

Unavailable

2

CLUTCH SLEEVE HUB | TC305

21411-15600

Unavailable

3

CLUTCH CREEK PLATE | TC305; LD.=116(4.57)

21441-15000

Unavailable

4

PLATE, CLUTCH DRIVEN | TC305; O.D.=140(5.51) This part replaces 21451-15000.

21451-31000

$10.40

5

CLUTCH PRESSURE PLATE | TC305

21462-15000

Unavailable

6

CLUTCH PUSH ROD (A) | TC305; O.D.=6.0(0.24).L.=123(4.84)

23111-10000

Unavailable

7

CLUTCH PUSH ROD (B) | TC305; O.D.=6.0(0.24).L.=163.5(6.44)

23111-18000

Unavailable

8

CLUTCH RELEASE ROD | TC305

23121-15000

Unavailable

9

CLUTCH RELEASE SCREW ASS'Y | TC305

23200-18000

Unavailable

10

CLUTCH RELEASE SCREW ARM HOOK | TC305

23221-01000

Unavailable

11

HAXAGON BOLT

01111-06168

Unavailable

12

SCREW This part replaces 02111-06128.

02112-06127

$1.84

13

WASHER This part replaces 08211-20383.

09160-20028

Unavailable

14

.NUT This part replaces 08311-31068.

08310-00067

$2.13

15

SCREW | TC305 This part replaces 09134-06001.

09134-06010

$3.12

16

NUT | TC305 This part replaces 09140-20002.

09140-20001

$3.37

17

WASHER (6.5X20X1.6) | TC305; I.D.=6.5(0.26),O.D.=20.(0.79) T=1.6(0.06) This part replaces 09160-06020.

09160-06066

$1.89

18

LOCK WASHER | TC305; OD=38(1.5) T=0.8(0.03) This part replaces 09167-20006.

09167-20009

$2.03

19

SPACER, PRIMARY DRIVEN | TC305; ID=20(0.79) OD=25(0.98) L=3(1.22) This part replaces 09180-20010.

21251-13E00

$23.38

20

CLUTCH RELEASE SCREW ARM HOOK | TC305

09209-04004

Unavailable

21

RELEASE ROD OIL SEAL | TC305; ID=10(0.39) OD=17(0.67) W=5.0(0.20)

09284-10002

$2.90

22

SEAL,OIL(6X30X7 | TC305; O.D.=30(1.18) This part replaces 09285-06005.

09285-06009

$3.89

23

CLUTCH SPRING | TC305

09440-19004

$2.50

24

RELEASE ARM RETURN SPRING | TC305

09443-08001

$2.92
