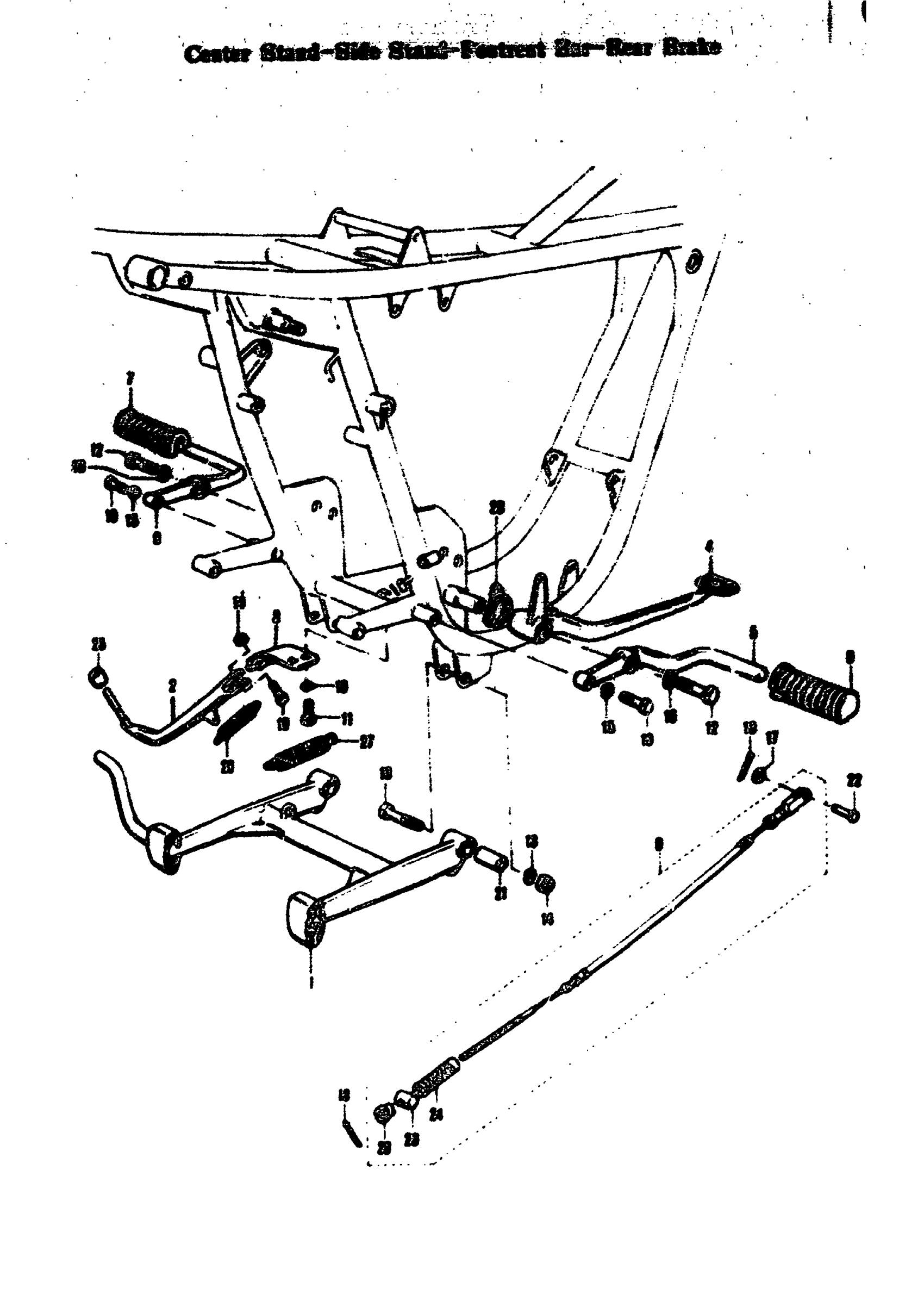

Suzuki T305 (1969) CENTER STAND-SIDE STAND-FOOTREST BAR-REAR BRAKE Diagram

#

Description
Price

1

CENTER STAND

42100-10000

Unavailable

2

SIDE STAND | TC305

42310-08002

Unavailable

3

SIDE STAND BRACKET | TC305

42330-10001

Unavailable

4

BRAKE PEDAL | TC305

43110-18100

Unavailable

5

RIGHT FRONT FOOTRESS BAR

43511-10000

Unavailable

6

LEFT FRONT FOOTRESS BAR

43515-10000

Unavailable

7

LEFT FRONT FOOTREST RUBBER

43551-09000

Unavailable

8

RIGHT FRONT FOOTREST RUBBER

43551-10000

$22.40

9

REAR BRAKE CABLE ASS'Y | TC305

58500-11000

Unavailable

10

HEXAGON BOLT

01111-08358

Unavailable

11

BOLT This part replaces 01111-10258.

01500-10257

$3.85

12

BOLT, HANDLE HOLDER This part replaces 01122-10358.

01500-1035B

$3.72

13

COTTER PIN

04111-20128

Unavailable

14

NUT This part replaces 08312-11108.

08310-00107

$2.19

15

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

16

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

17

WASHER This part replaces 08322-21068.

08322-01067

$2.13

18

CENTER STAND BOLT | TC305; 10 SCREW, L=48(1.89)

09100-10006

Unavailable

19

BOLT | TC305; 10 SCREW, L=27(1.06) This part replaces 09100-10007.

09100-10287

$3.48

20

.NUT | TC305 This part replaces 09150-06001.

09150-06010

$3.10

21

CENTER STAND SPACER | TC305; ID=10.4(0.41) OD=16(0.63) W=30(1.18)

09180-10001

$3.58

22

REAR BRAKE CABLE CONNECTOR PIN | TC305

09200-05001

$1.65

23

.PIN (13X18) | TC305; OD=13(0.51), L=18(0.71) This part replaces 09209-13001.

09209-13018

$3.42

24

REAR BRAKE CABLE BOOT | TC305

09287-05001

Unavailable

25

SIDE STAND BUFFER | TC305

09320-07001

$2.92

26

SPRING | TC305 This part replaces 09443-14005.

09443-14017

$3.04

27

SPRING | TC305 This part replaces 09443-16005.

09443-16005-XC0

Unavailable

28

BRAKE PEDAL RETURN SPRING | TC305

09448-37008

Unavailable
