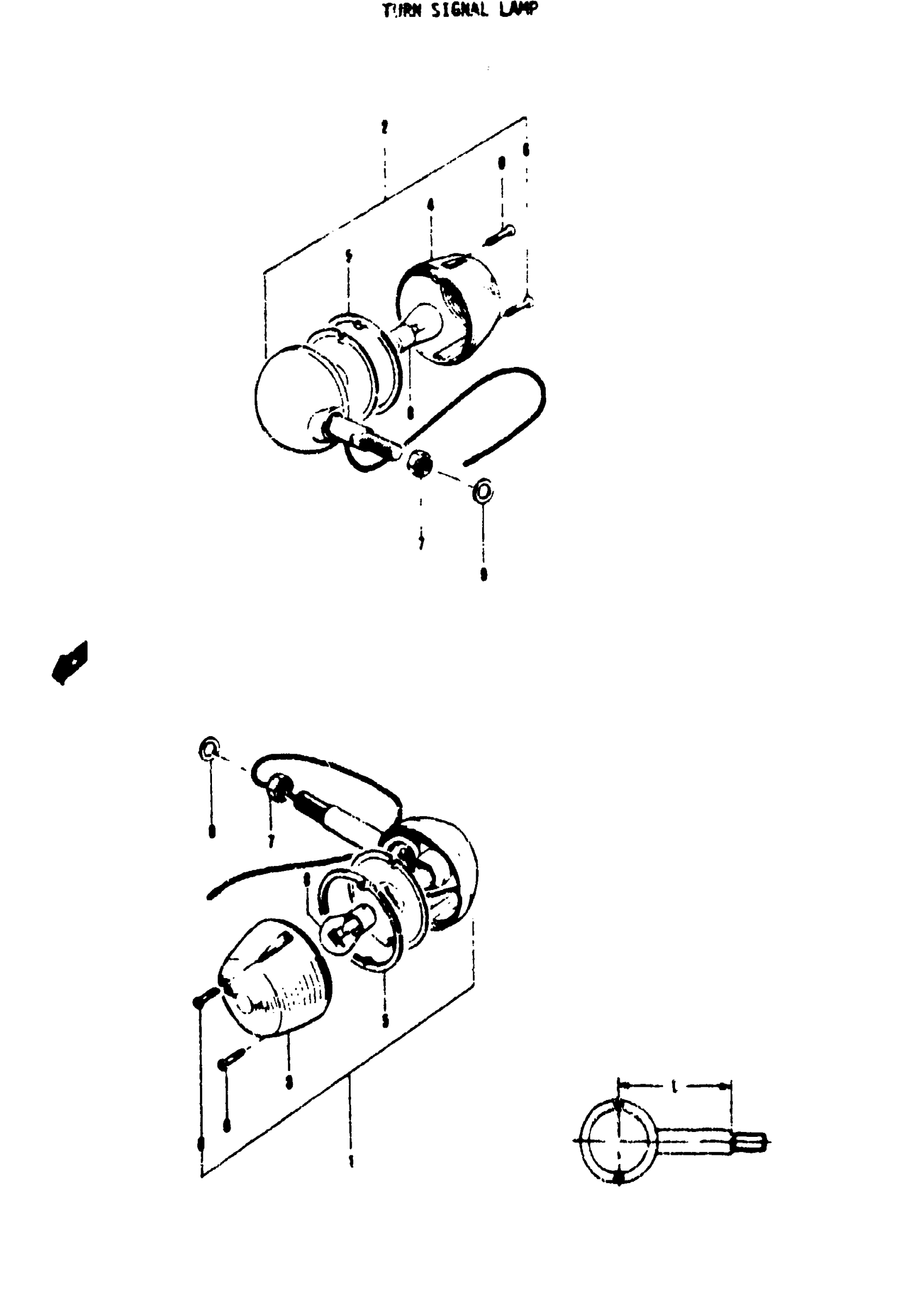

Suzuki T250II (1972) TURN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURN SIGNAL | T250; L:60

35601-15610-999

Unavailable

1

LAMP ASSY, FRONT TURN SIGNAL | T250II,T250R,T250J; L:102

35601-18511-999

Unavailable

2

LAMP ASSY, REAR TURN SIGNAL | T250

35603-16411-999

Unavailable

2

LAMP ASSY,RR TR | T250II,T250R,T250J; Includes Item(s) 3 - 7 This part replaces 35603-18610-999.

35603-27670-999

Unavailable

3

LENS | T250; ORANGET250II,T250R,T250J; ORANGE

35612-12611

$11.96

4

LENS, REAR TURN SIGNAL | T250II,T250R,T250J; RED

35652-18700

Unavailable

5

GASKET

35613-03610

Unavailable

6

SCREW This part replaces 02131-03167.

02132-03167

$1.36

7

NUT This part replaces 08312-31107.

08310-00107

$2.25

8

BULB | 12V, 32CP

09471-12006

$3.76

9

WASHER | T250T250II,T250R,T250J This part replaces 08322-11108.

08322-01107

$1.95
