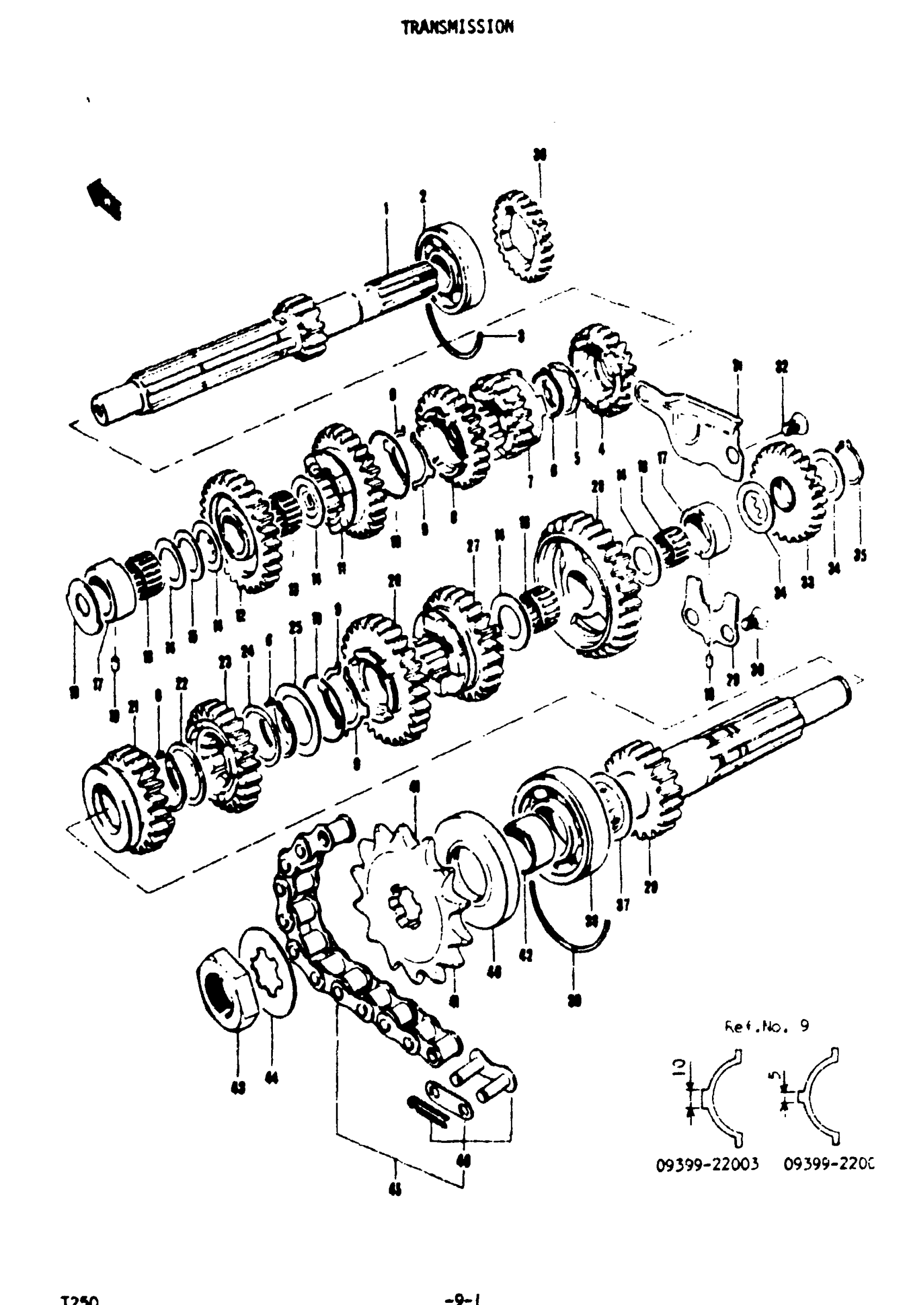

Suzuki T250II (1972) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT | NT:12

24121-18001

Unavailable

2

BEARING | 20x52x15

09262-20025

Unavailable

3

C RING

09390-52001

Unavailable

4

GEAR, 3RD DRIVE | NT:19

24231-18001

Unavailable

5

WASHER | OD:32, T:1

09167-25004

Unavailable

6

SNAP RING

09380-25003

$3.04

7

GEAR, 2ND DRIVE | NT:16

24221-18001

Unavailable

8

GEAR, 4TH DRIVE | NT:21

24241-18003

Unavailable

9

KNOCK RING

09399-22003

Unavailable

9

KNOCK RING | T250

09399-22002

Unavailable

10

CIRCLIP

09380-38001

Unavailable

11

GEAR, 5TH DRIVE | NT:23

24251-18002

Unavailable

12

GEAR, 6TH DRIVE | NT:24

24261-18001

Unavailable

13

BEARING | 17x21x9.8

09263-17004

$12.03

14

WASHER, 2ND DRIVE GEAR | (3~5); 17x29x1 This part replaces 09160-17001.

09181-17223

$2.96

14

WASHER | (0~1); 17x29x1.5 This part replaces 09160-17003.

08211-17282

$2.70

14

WASHER C | (0~2); 17x29x1.2

09160-17007

Unavailable

15

WASHER | 17x29x1 This part replaces 09160-17005.

09160-17022

$3.23

16

NEEDLE BEARING | 17x21x12.8

09263-17001

$21.82

17

BUSHING | 21x30x13

09300-21001

Unavailable

18

DOWEL PIN

04221-04069

$2.12

19

HOLDER, COUNTERSHAFT BEARING

24741-10000

Unavailable

20

DRIVESHAFT | NT:17 This part replaces 24131-18001.

24131-18002

Unavailable

21

GEAR, 5TH DRIVEN | NT:18, ~F.NO.29439:TO BE USED WITH24341-18003

24351-18003

Unavailable

22

WASHER

08211-25321

$3.27

23

GEAR, 4TH DRIVEN | NT:19,~F.NO.29439:TO BE USED WITH 24351-18003

24341-18003

Unavailable

24

WASHER | 25x35x1.5

09160-25007

Unavailable

25

WASHER, RR FINAL DRIVE This part replaces 08211-25381.

09181-25223

$3.21

26

GEAR, 2ND DRIVEN | NT:24

24320-18002

Unavailable

27

GEAR, 3RD DRIVEN | NT:22

24331-18001

Unavailable

28

GEAR, 1ST DRIVEN | NT:28

24311-18000

Unavailable

29

HOLDER, DRIVESHAFT BUSHING

24751-11000

Unavailable

30

SCREW

02121-06128

Unavailable

31

CUP, OIL RESERVOIR

24871-11001

Unavailable

32

SCREW

02121-06128

Unavailable

33

GEAR, KICK STARTER IDLE | NT:26

26260-11000

Unavailable

34

WASHER, 2ND DRIVE GEAR | 17x29x1 This part replaces 09160-17001.

09181-17223

$2.96

35

CIRCLIP

09380-17001

$1.98

36

GEAR, KICK STARTER DRIVEN | NT:24

26281-11000

Unavailable

37

WASHER

08211-22341

$3.85

38

BEARING | 22x56x16

09262-22005

Unavailable

39

O RING

09390-54001

Unavailable

40

OIL SEAL | 27x56x7

09283-27003

Unavailable

41

SPROCKET, ENGINE | NT:14

27511-18000

Unavailable

41

SPROCKET, ENGINE | NT:13, OPT

27511-18700

Unavailable

41

SPROCKET, ENGINE | NT:15, OPT

27511-18710

Unavailable

42

SPACER | 22x27x13.4

09180-22003

Unavailable

43

NUT

09140-22003

Unavailable

44

WASHER | OD:38, T:1.2 This part replaces 09167-22004.

09167-22005

$2.11

45

CHAIN ASSY, DRIVE | AVAILABLE #525Tx98l; Includes Item(s) 46 This part replaces 27600-11210.

27600-16410

Unavailable

46

JOINT, CHAIN This part replaces 27620-18610.

27620-30110

Unavailable
