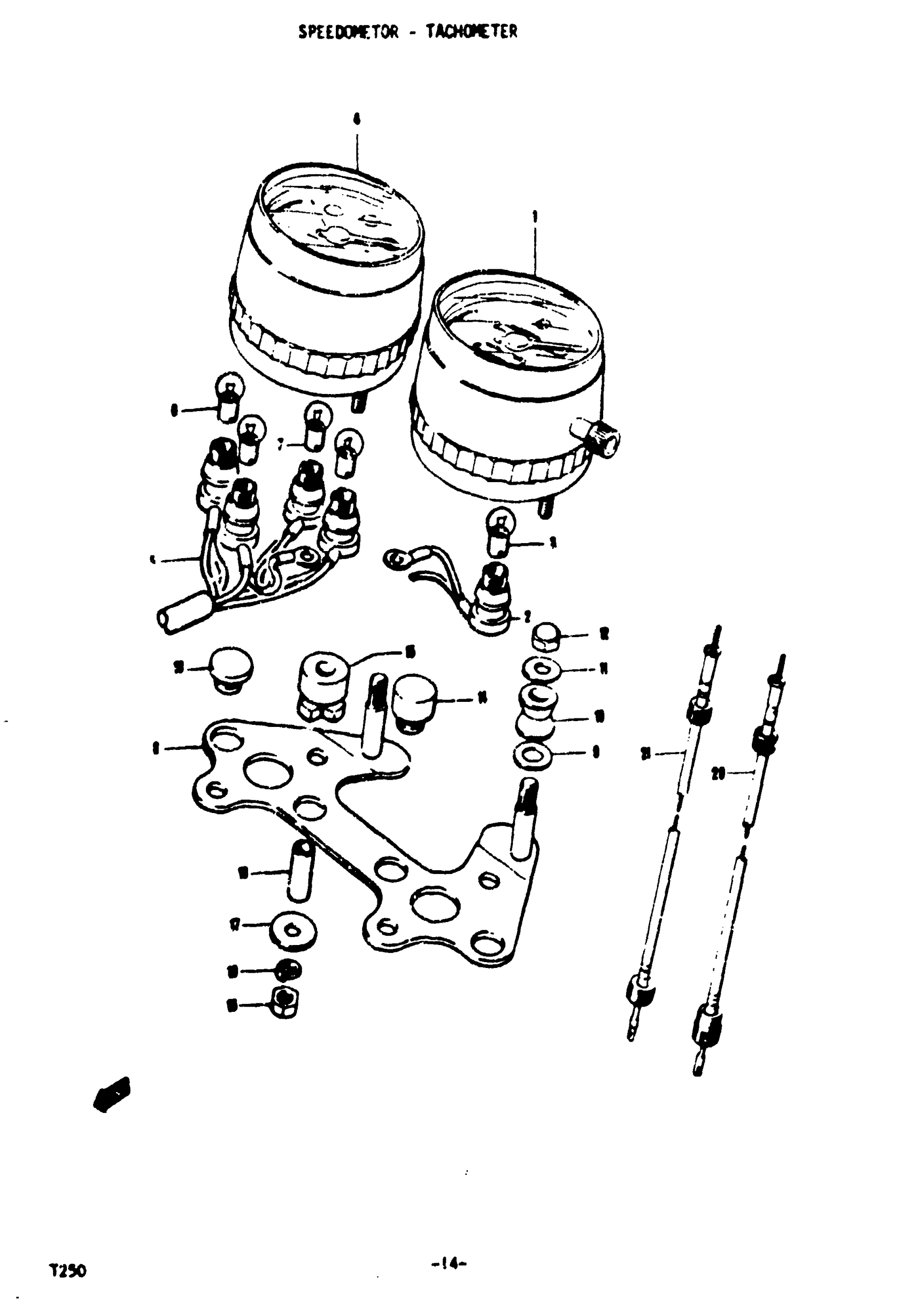

Suzuki T250II (1972) SPEEDOMETER - TACHOMETER Diagram

#

Description
Price

1

SPEEDOMETER ASSY | T250II,T250R

34100-18610-999

Unavailable

1

SPEEDOMETER ASSY | T250J; Includes Item(s) 2 - 2

34100-18611-999

Unavailable

2

SOCKET | T250II

34173-16600

Unavailable

2

SOCKET | T250R,T250J

34173-18620

Unavailable

3

BULB | T250II,T250R,T250J; 12V, 3.4M

09471-12001

$1.65

4

TACHOMETER ASSY | T250II

34200-18520-999

Unavailable

4

TACHOMETER ASSY | T250R

34200-18610-999

Unavailable

4

TACHOMETER ASSY | T250J; Includes Item(s) 5 - 5

34200-18621-999

Unavailable

5

SOCKET | T250II

34270-16420

Unavailable

5

SOCKET | T250R,T250J

34270-18620

Unavailable

6

BULB | T250II,T250R,T250J; 12V, 3.4W

09471-12001

$1.65

7

BULB | T250II,T250R,T250J; 12V, 1.7W

09471-12004

$2.69

8

BRACKET, MATER | T250II,T250R

34950-18520

Unavailable

8

BRACKET, METER | T250J

34950-18611

Unavailable

9

WASHER | T250II,T250R,T250J; 6.5x18x1.6 This part replaces 09160-06006.

09160-06084

$1.78

10

CUSHION, METER BRACKET | T250II,T250R,T250J

34956-15100

$3.71

11

WASHER | T250II,T250R,T250J This part replaces 08322-21088.

08322-01087

$2.13

12

NUT, LICENSE HOLDER | T250II,T250R,T250J This part replaces 08313-11068.

08313-10067

$1.84

13

CUSHION, METER A | T250II,T250R,T250J

34955-16420

$4.43

14

CUSHION, METER B | T250II,T250R,T250J

34956-16420

Unavailable

15

CUSHION, METER C | T250II,T250R,T250J

34957-16420

Unavailable

16

SPACER, METER CUSHION | T250II,T250R

34972-16420

Unavailable

17

WASHER | T250II,T250R,T250J; 6.5x18x1.6 This part replaces 09160-06006.

09160-06084

$1.78

18

.NUT | T250II,T250R,T250J This part replaces 08311-11068.

08310-00067

$2.13

19

LOCK WASHER | T250II,T250R,T250J This part replaces 08321-21068.

08321-01067

$2.13

20

CABLE,SPEEDOMET | T250II; L:860 This part replaces 34910-18230.

34910-18991

$31.50

20

CABLE, SPEEDOMETER | T250R; L:900

34910-18430

Unavailable

20

CABLE, SPEEDOMETER | T250J; L:810

34910-18431

Unavailable

21

CABLE ASSY,TACH | T250R,T250J; L:1050 This part replaces 34940-18430.

34940-36032

Unavailable
