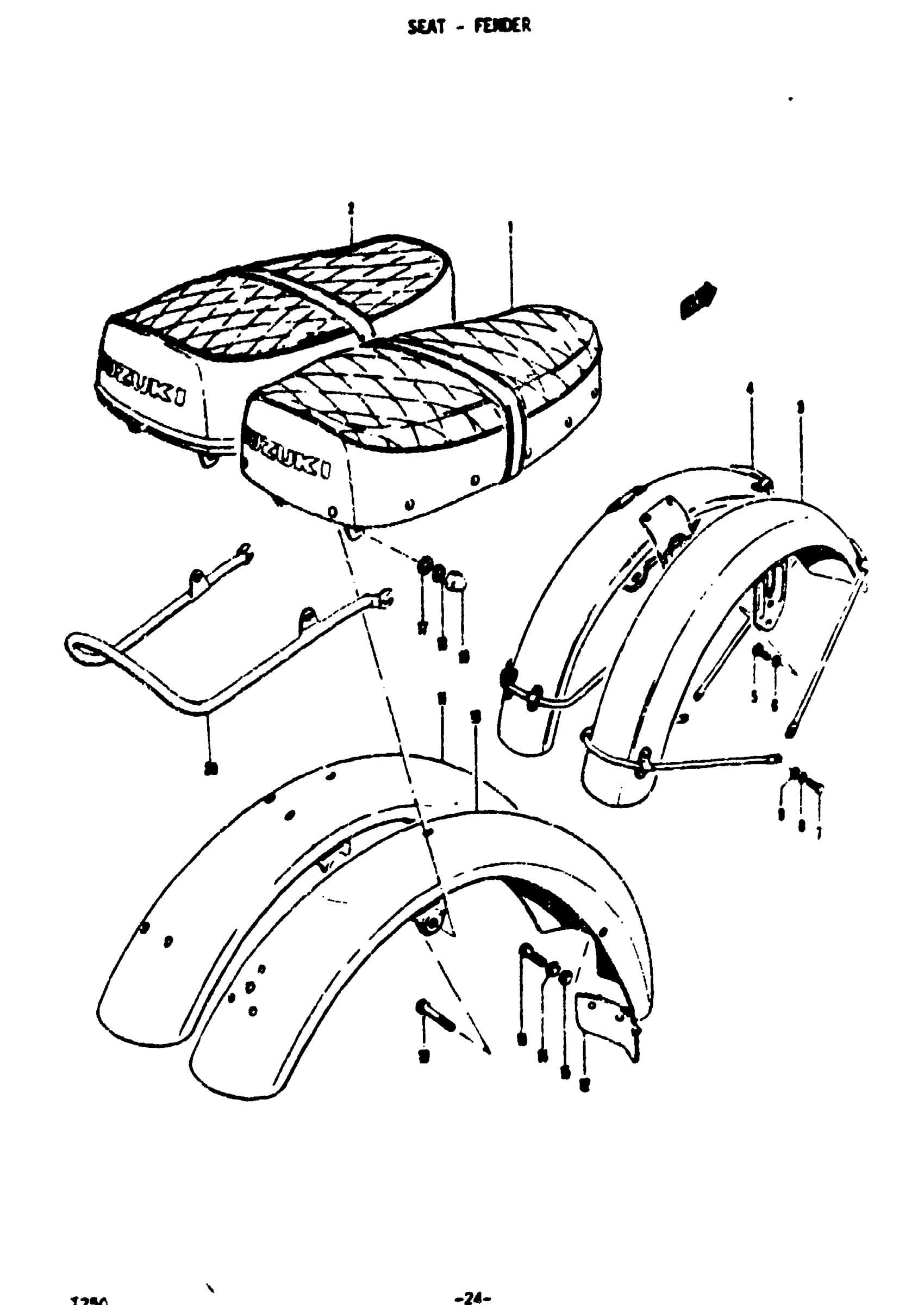

Suzuki T250II (1972) SEAT - FENDER Diagram

#

Description
Price

1

SEAT, DUEL | T250

45100-18200

Unavailable

2

SEAT ASSY | T250II,T250R,T250J This part replaces 45100-18401-403.

45100-18401-865

Unavailable

3

FENDER, FRONT | T250; CHROME-PLATED

53110-18000

Unavailable

4

FENDER, FRONT | T250II,T250R,T250J; CHROME-PLATED

53110-18200

Unavailable

5

BOLT | T250,T250II,T250RT250J This part replaces 09100-08055.

01500-0812A

$2.28

6

.LOCK WASHER | T250,T250II,T250RT250J This part replaces 08321-21088.

08321-01087

$2.13

7

BOLT | T250

01111-06128

Unavailable

8

LOCK WASHER | T250 This part replaces 08321-21068.

08321-01067

$2.13

9

WASHER | T250 This part replaces 08322-21068.

08322-01067

$2.13

10

FENDER, REAR | T250; CHROME-PLATED

63110-18200

Unavailable

11

FENDER, REAR | T250II,T250R,T250J; CHROME-PLATED

63110-18500

Unavailable

12

GUARD, MUD

63411-11000

Unavailable

13

BOLT, LH This part replaces 09100-08067.

09100-08143

$2.29

14

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

15

WASHER This part replaces 08322-11088.

08322-01087

$2.13

16

NO DESCRIPTION AVAILABLE This part replaces 09100-08002.

09100-08290

Unavailable

17

WASHER This part replaces 08322-11088.

08322-01087

$2.13

18

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

19

NUT This part replaces 08313-11087.

08313-10087

$2.28

20

BUMPER, REAR | T250R,T250J

94710-18500

Unavailable
