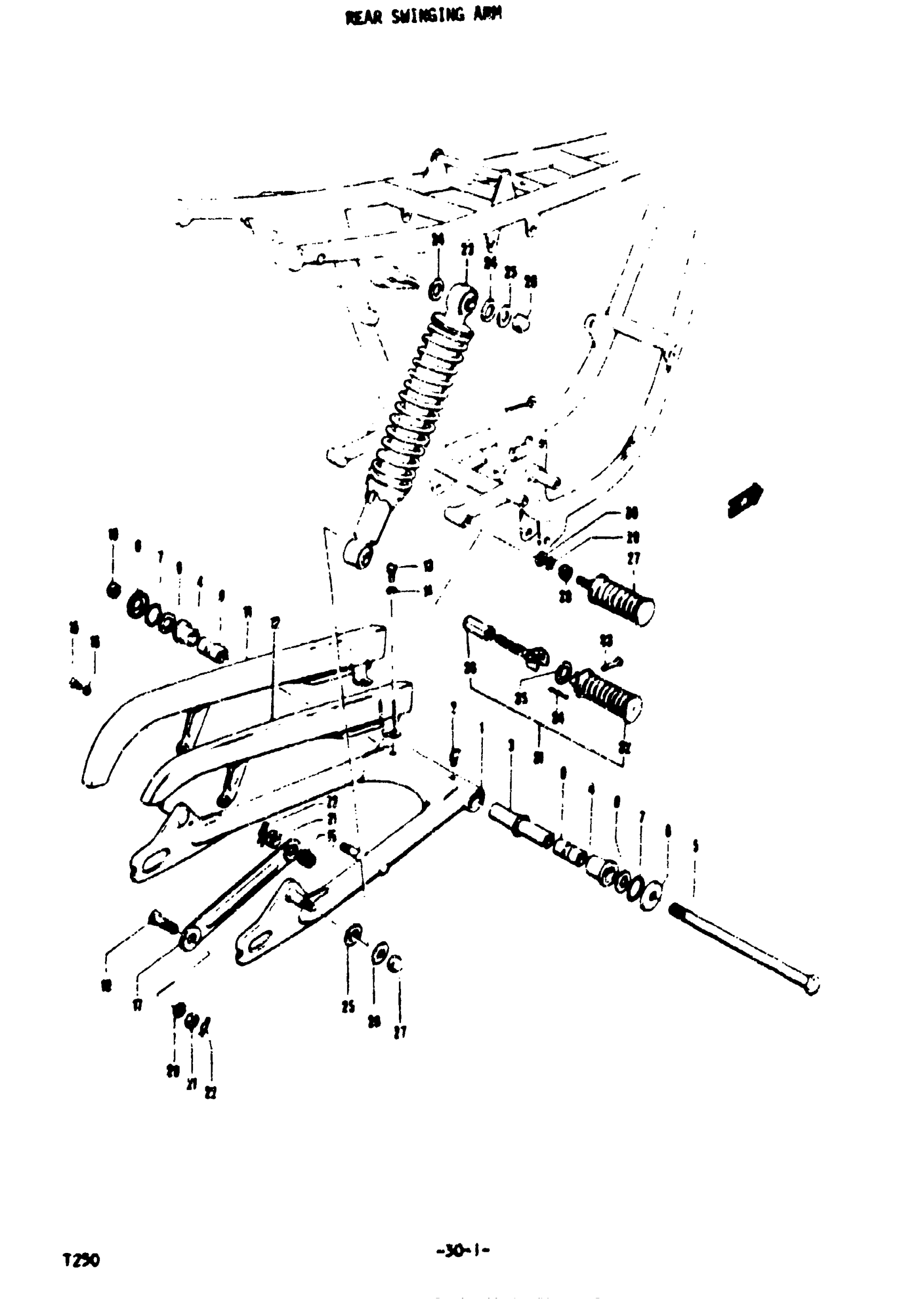

Suzuki T250II (1972) REAR SWINGING ARM Diagram

#

Description
Price

1

ARM ASSY, REAR SWINGING | Includes Item(s) 2 - 4

61102-18806-019

Unavailable

2

NIPPLE, GREASE This part replaces 08351-31008.

08351-3100A

$4.45

3

SPACER, SWINGING ARM CENTER

61280-15000

Unavailable

4

BUSHING

09301-22001

Unavailable

5

SHAFT, SWINGING ARM PIVOT | 14SCREW, L:225

61211-15001

Unavailable

6

COVER, SWINGING ARM DUST SEAL

61262-15000

$93.03

7

.O RING (D:3,ID:29.5) | ID:29.5, D.:3

09280-30001

$1.72

8

WASHER | 14.5x29x2.3

09160-14009

$2.82

9

SPACER This part replaces 61251-15000.

61251-15001

Unavailable

10

NUT This part replaces 09159-14002.

09159-14003

Unavailable

11

CASE, CHAIN | T250; CHROME PLATED This part replaces 61310-11601.

61310-18600

Unavailable

12

CASE, CHAIN | T250II,T250R,T250J; CHROME PLATED

61310-18600

Unavailable

13

BOLT

01111-06128

Unavailable

14

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

15

SCREW

02121-05128

Unavailable

16

WASHER,LOCK This part replaces 08323-31058.

08323-3105A

$1.49

17

TORQUE LINK, REAR BRAKE

64310-11000

Unavailable

18

SPRING

09440-18002

$1.49

19

BOLT | 10SCREW, L:25

09101-10003

Unavailable

20

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

21

NUT This part replaces 08311-11108.

08310-00107

$2.19

22

CLIP This part replaces 09385-10001.

09385-10005

$1.56

23

SHOCK ABSORBER ASSY, REAR | T250,T250II

62100-18310

Unavailable

23

SHOCK ABSORBER ASSY, REAR | T250R,T250J

62100-15110

Unavailable

24

WASHER, LOWER (10.5X24X2.3) | 10.5x24x2.3 This part replaces 09160-10001.

09160-10093

$2.35

25

WASHER This part replaces 08322-11128.

08322-01127

$1.84

26

NUT This part replaces 08313-11107.

08313-10107

$2.50

27

FOOTREST SET,PI | T250,T250R,T250J; Includes Item(s) 28 This part replaces 43600-10808.

43600-10809

Unavailable

28

NUT | T250,T250R,T250J This part replaces 08312-11108.

08310-00107

$2.19

29

LOCK WASHER | T250,T250R,T250J This part replaces 08321-21108.

08321-01107

$1.84

30

WASHER | T250,T250R,T250J This part replaces 08322-11108.

08322-01107

$2.15

31

FOOTREST ASSY, PILLION | T250II; Includes Item(s) 32 - 36

43600-11200

Unavailable

32

COVER | T250II

43610-03000

Unavailable

33

PIN | T250II

09200-06010

$1.72

34

COTTER PIN | T250II

04111-20188

Unavailable

35

WASHER | T250II; 19.5x30x2.3 This part replaces 09160-19004.

09160-19024

$2.65

36

NUT | T250II; 10SCREW, L:25

09159-10003

Unavailable
