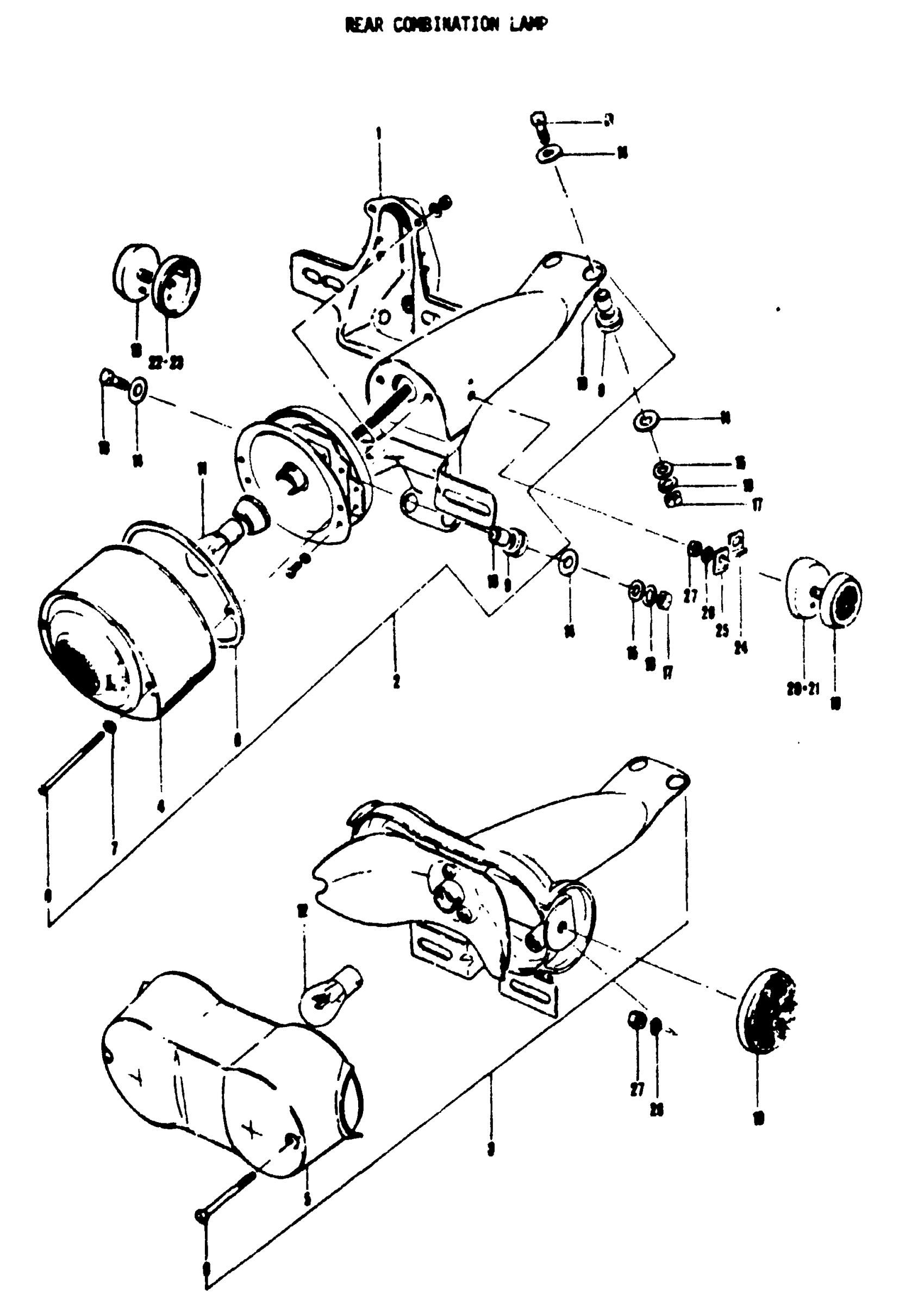

Suzuki T250II (1972) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION | T250

35710-05610-999

Unavailable

2

LAMP ASSY, REAR COMBINATION | T250II,T250R

35710-15601-999

Unavailable

3

LAMP ASSY, REAR COMBINATION | T250J; Includes Item(s) 4 - 10

35710-15602-999

Unavailable

4

LENS, RR COMB L | T250,T250II,T250R This part replaces 35712-15011.

35712-06112

$35.16

5

TAIL LAMP LENS | T250J This part replaces 35712-27690.

35712-27671

Unavailable

6

SCREW 4X55 | T250,T250II,T250R This part replaces 02111-04558.

02112-04558

$1.65

6

SCREW | T250J This part replaces 02111-04508.

02112-0450A

$1.51

7

WASHER | T250,T250II,T250R

35727-03010

Unavailable

8

GASKET | T250,T250II,T250R

35713-15010

Unavailable

9

CUSHION | T250T250II,T250R,T250J

35765-15010

Unavailable

10

SPACER | T250T250II,T250R,T250J This part replaces 35766-15010.

35766-37110

$5.28

11

BULB (12V,23W/8W) | T250,T250II,T250R; 12V, 32/4CP This part replaces 09471-12002.

09471-12035

$4.49

12

BULB | T250J; 12V, 23/8W

09471-12035

$4.49

13

BOLT | T250T250II,T250R,T250J This part replaces 01111-06208.

01500-06207

$2.28

14

WASHER (6.5X20X1.6) | T250; 6.5x20x1.6T250II,T250R,T250J; 6.5x20x1.6 This part replaces 09160-06020.

09160-06066

$1.89

15

WASHER | T250T250II,T250R,T250J This part replaces 08322-21068.

08322-01067

$2.13

16

LOCK WASHER | T250T250II,T250R,T250J This part replaces 08321-21068.

08321-01067

$2.13

17

.NUT | T250T250II,T250R,T250J This part replaces 08311-11068.

08310-00067

$2.13

18

REFLEX REFLECTOR, REAR | T250,T250II,T250R

35970-18602

Unavailable

19

REFLEX REFLECTOR, REAR | T250J

35970-31610

Unavailable

20

SPACER, REFLEX REFLECTOR RH | T250

35995-18600

Unavailable

21

SPACER, REFLEX REFLECTOR RH | T250II,T250R

35995-15600

Unavailable

22

SPACER, REFLEX REFLECTOR LH | T250

35996-18600

Unavailable

23

SPACER, REFLEX REFLECTOR LH | T250II,T250R

35996-15600

Unavailable

24

WASHER, REFLEX REFLECTOR | T250

35997-18600

Unavailable

25

WASHER, REFLEX REFLECTOR | T250II,T250R

35997-15600

Unavailable

26

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

27

NUT This part replaces 08311-11058.

08310-00057

$1.84
