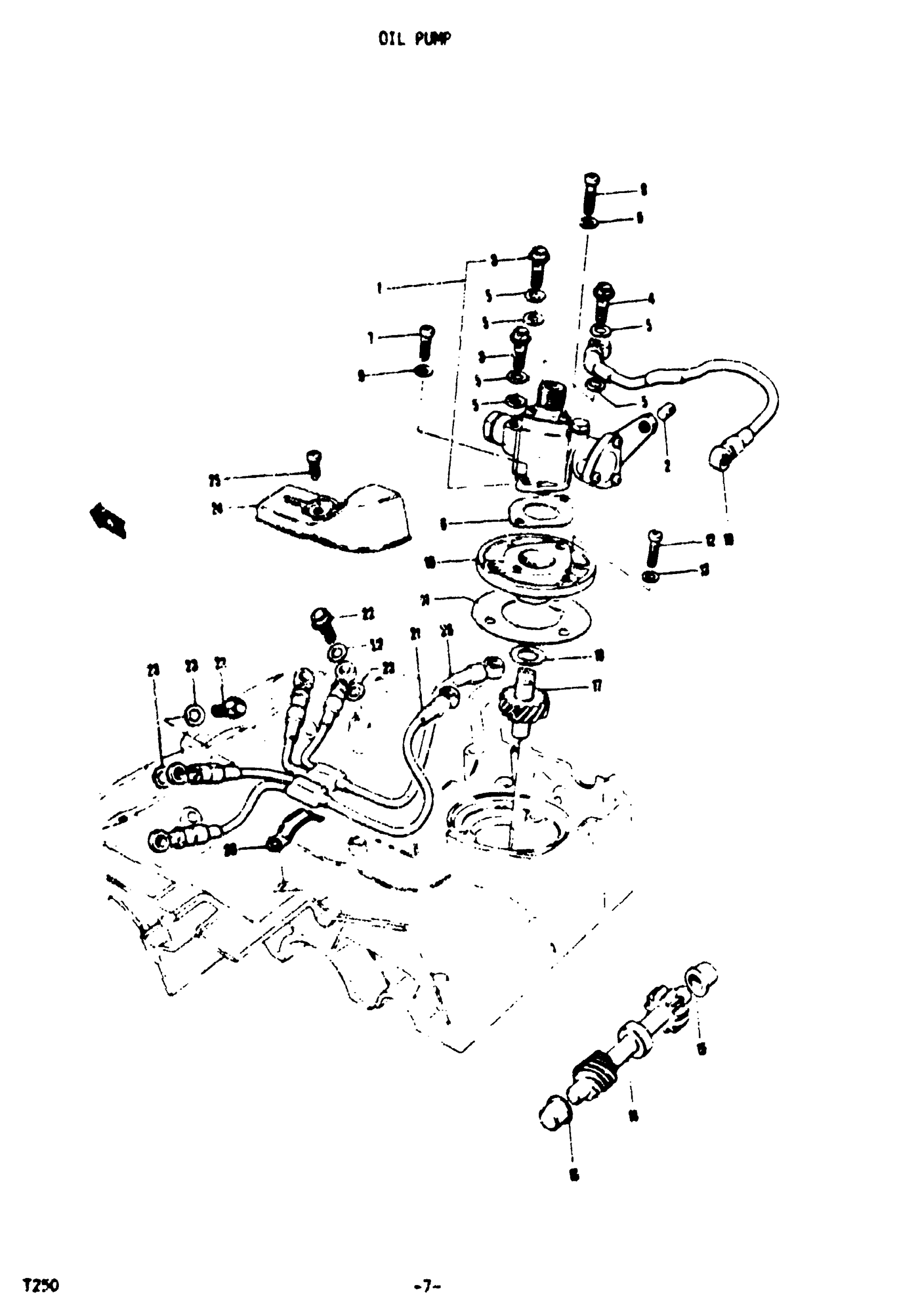

Suzuki T250II (1972) OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY, OIL | T250; ~F.NO.24216:TO BE USED WITH 09380-06001 (2PC)

16001-18809

Unavailable

1

PUMP ASSY, OIL | T250II,T250R,T250J; Includes Item(s) 2 - 5

16002-18814

Unavailable

2

TERMINAL, CABLE

13683-51010

Unavailable

3

UNION BOLT | L:13.5

09360-06005

Unavailable

3

UNION BOLT | T250, T250II; L:16. ~F.NO.24716

09360-06003

$3.76

4

UNION BOLT | L:16

09360-06003

$3.76

5

GASKET This part replaces 09168-06002.

09168-06004

$1.49

6

GASKET, OIL PUMP

16731-11000

Unavailable

7

SCREW This part replaces 02111-06128.

02112-06127

$1.84

8

SCREW

02111-06208

Unavailable

9

WASHER This part replaces 08322-21068.

08322-01067

$2.13

10

CASE, OIL PUMP GEAR

16341-18000

Unavailable

11

GASKET, GEAR CASE

16381-18000

Unavailable

12

SCREW

02111-06168

Unavailable

13

WASHER | T250 This part replaces 08322-21068.

08322-01067

$2.13

14

SHAFT, OIL PUMP DRIVE | NT:1176

16320-18000

Unavailable

15

BUSHING, A

09301-10002

Unavailable

16

BUSHING, B

09319-10006

Unavailable

17

SHAFT, OIL PUMP DRIVE SHAFT | NT:16

16331-18000

Unavailable

18

WASHER, CLUTCH RELEASE This part replaces 08211-10201.

09181-10195

$1.99

19

HOSE, OIL INLET

16810-18030

Unavailable

20

HOSE, OIL A | ~F.NO.24217: TO BE USED WITH 09360-06001

16820-18031

Unavailable

21

HOSE, OIL B | ~F.NO.24217: TO BE USED WITH 09360-06001

16840-18031

Unavailable

22

UNION BOLT | L:16

09360-06003

$3.76

23

GASKET | 6.2x12x1.5 This part replaces 09168-06002.

09168-06004

$1.49

24

COVER, OIL HOSE

11441-18000

Unavailable

25

SCREW

02111-05128

Unavailable

26

CLAMP | T250,T250II,T250RT250J

09403-00007

Unavailable
