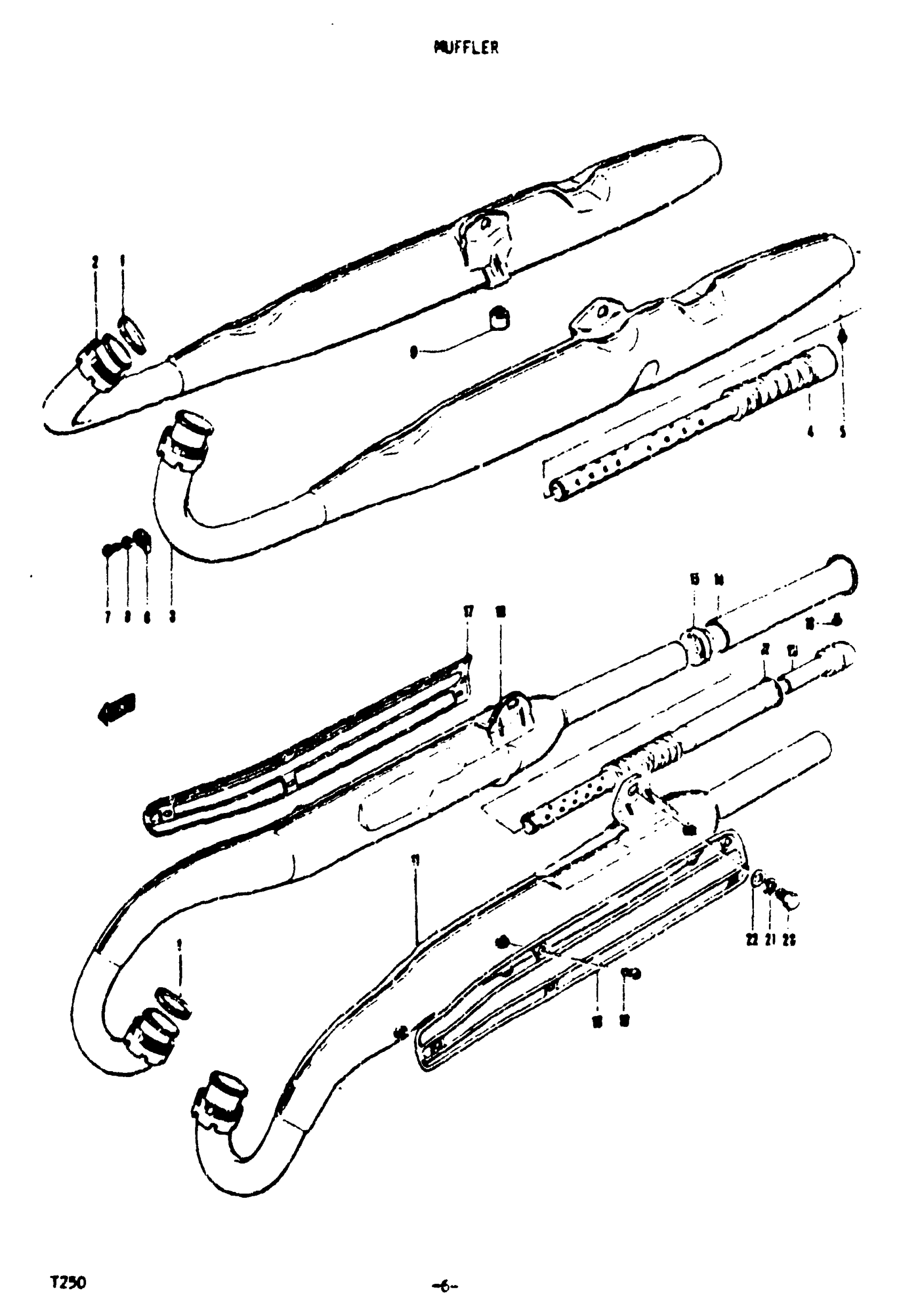

Suzuki T250II (1972) MUFFLER Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE | 38x40x5 This part replaces 14181-11010.

14181-01D00

$7.11

2

NO DESCRIPTION AVAILABLE | T250,T250R,T250JT250II; OPT This part replaces 14301-18100.

14301-18100-H01

Unavailable

3

MUFFLER ASSY, LH | T250,T250R,T250JT250II; OPT; Includes Item(s) 4 - 5

14302-18100

Unavailable

4

PIPE, BATTLE | T250,T250R,T250JT250II; OPT

14510-18100

Unavailable

5

SCREW | T250,T250R,T250JT250II; OPT This part replaces 02111-05068.

09125-05122

$2.06

6

HOLDER, EXHAUST PIPE CLAMP | T250,T250R,T250J

14183-11000

Unavailable

7

SCREW | T250,T250R,T250J This part replaces 02111-06128.

02112-06127

$1.84

8

LOCK WASHER | T250,T250R,T250J This part replaces 08321-21062.

08321-01067

$2.13

9

BUFFER

09321-10001

$2.61

10

MUFFLER ASSY, RH | T250II

14301-18400

Unavailable

11

MUFFLER ASSY, LH | T250II; Includes Item(s) 12 - 13

14302-18400

Unavailable

12

PIPE, BUFFLE | T250II

14810-18400

Unavailable

13

TUBE, CLEAN OUT | T250II

14850-18400

Unavailable

14

COVER, MUFFLER REAR | T250II

14860-18400

Unavailable

15

CLIP, MUFFLER REAR COVER | T250II

14889-18400

Unavailable

16

SCREW | T250II

02111-05088

Unavailable

17

COVER, MUFFLER FRONT RH | T250II

14780-18400

Unavailable

18

COVER, MUFFLER FRONT LH | T250II

14790-18400

Unavailable

19

SCREW | T250II

02111-06068

Unavailable

20

BOLT 10X16 | T250II This part replaces 01221-10167.

01204-10167

$3.20

21

LOCK WASHER | T250II This part replaces 08321-21108.

08321-01107

$1.84

22

WASHER | T250II This part replaces 08322-21108.

08322-01107

$2.15
