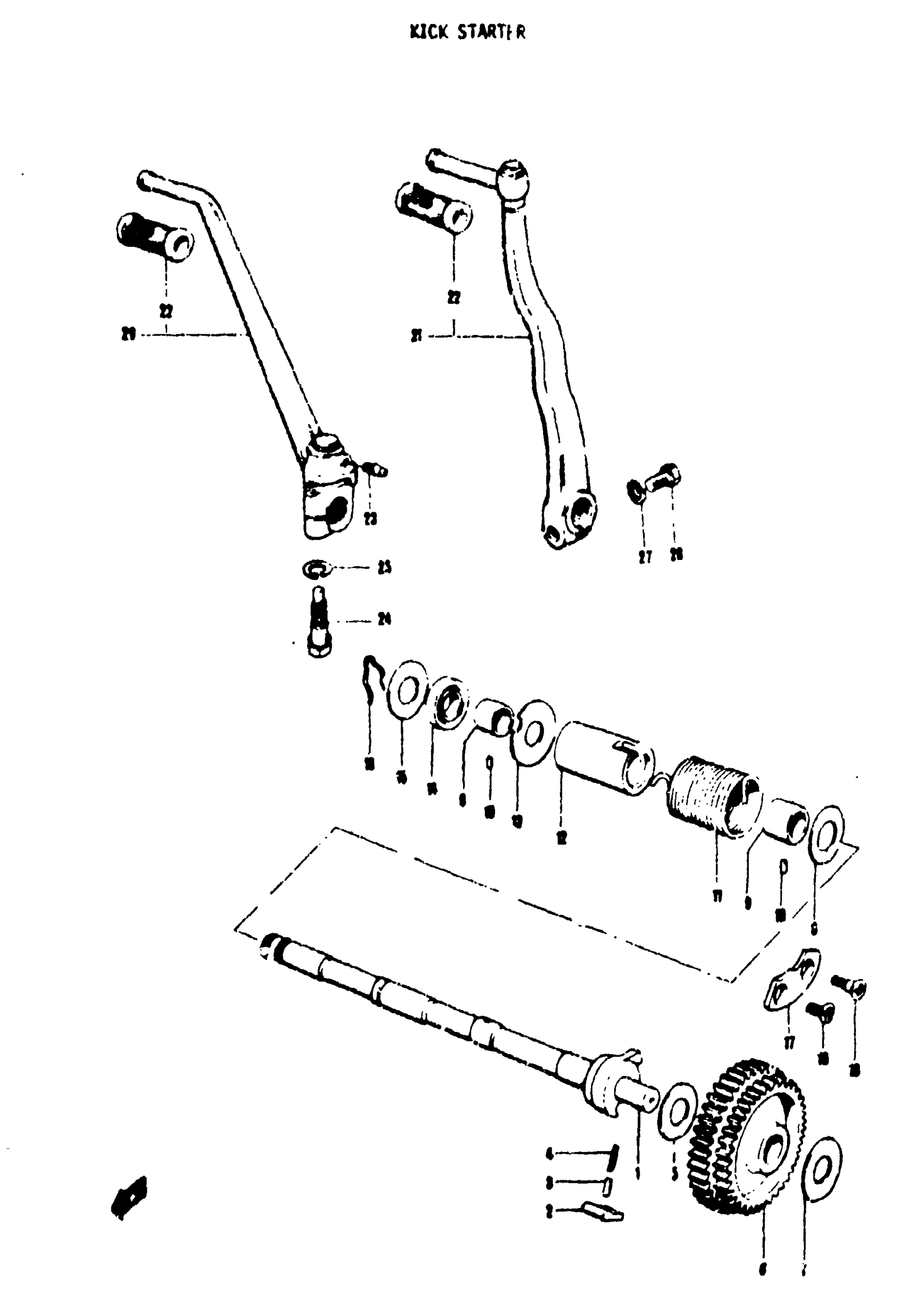

Suzuki T250II (1972) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER

26211-18000

Unavailable

2

PAWL, KICK STARTER

26231-16400

Unavailable

3

ROLLER

09209-05011

$2.20

4

SPRING

09440-04010

$1.54

5

WASHER | 13x31.5x1.3

09160-13002

Unavailable

6

GEAR, KICK STARTER DRIVE | NT:39/34 This part replaces 26240-18001.

26240-18002

Unavailable

7

WASHER, DRIVE GEAR | 13x31.5x1.5 This part replaces 09160-13005.

09160-13002

Unavailable

8

WASHER | 16x30.5x1

09160-16003

$2.92

9

BEARING | 16x22x17.5

09300-16002

Unavailable

10

DOWEL PIN

04221-04069

$2.12

11

SPRING

09448-37001

Unavailable

12

GUIDE, KICK SHAFT SPRING

26221-11000

Unavailable

13

WASHER | 16x38x1.2

09166-16001

Unavailable

14

OIL SEAL | 16x30x8

09285-16001

Unavailable

15

WASHER | 16x33x1.6

09160-16002

Unavailable

16

CIRCLIP

09384-16001

Unavailable

17

STOPPER, KICK SHAFT

26232-11000

Unavailable

18

SCREW

09139-06002

$2.38

19

SCREW This part replaces 02121-06168.

02122-06167

$1.49

20

LEVER ASSY, KICK STARTER | T250,T250R,T250J

26300-15000

Unavailable

21

LEVER ASSY, KICK STARTER | T250II; Includes Item(s) 22 - 23

26300-18200

Unavailable

22

RUBBER,KICK STA This part replaces 26352-01000.

26352-01020

$3.25

23

NIPPLE, GREASE | T250,T250R,T250J

08351-11009

$7.51

24

BOLT | T250,T250R,T250J; OD:10, L:37.5

09135-10002

Unavailable

25

LOCK WASHER | T250,T250R,T250J This part replaces 08321-21108.

08321-01107

$1.84

26

BOLT | T250II This part replaces 01122-08258.

01500-08257

$2.50

27

.LOCK WASHER | T250II This part replaces 08321-21088.

08321-01087

$2.13
