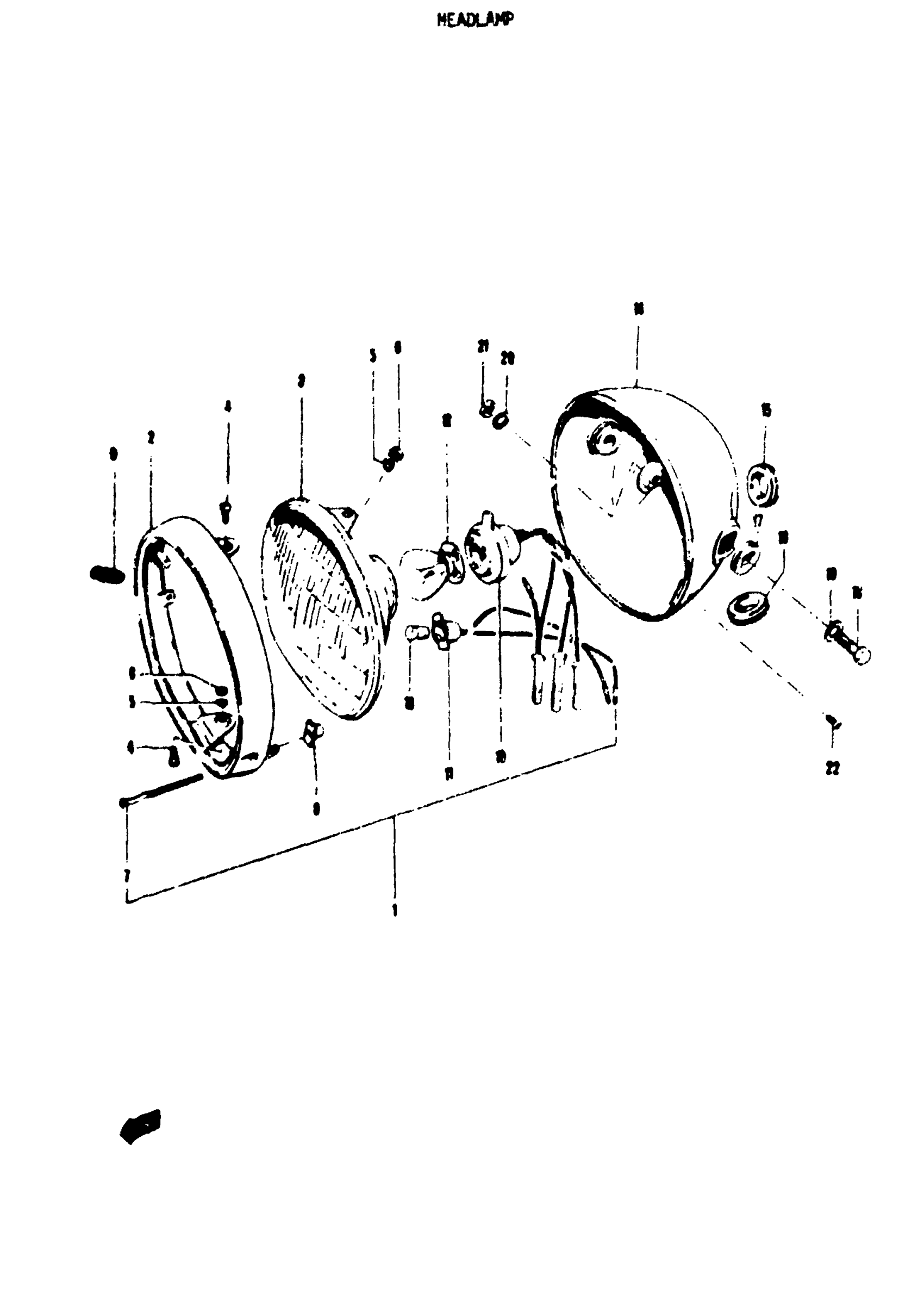

Suzuki T250II (1972) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | T250; Includes Item(s) 2 - 11

35100-15613-999

Unavailable

2

RIM | T250

35111-15613

Unavailable

3

UNIT | T250

35121-15610

Unavailable

4

SCREW, UNIT | T250

35181-15611

$3.37

5

LOCK WASHER | T250 This part replaces 08321-21048.

08321-0104A

$1.84

6

NUT | T250 This part replaces 08311-11048.

08310-00047

$2.23

7

SCREW, BEAR ADJUSTING | T250; 4SCREW, L:65

35151-15611

Unavailable

8

NUT, BEAM ADJUSTING | T250

35152-15611

$3.25

9

SPRING, UNIT ADJUSTING | T250

35154-11610

Unavailable

10

SOCKET | T250

35171-15610

Unavailable

11

PARKING LAMP SO | T250 This part replaces 36118-15610.

36118-04A00

$12.53

12

BULB | T250; 12V, 35/35W

09471-12022

Unavailable

13

BULB | T250; 12V, 1.7W

09471-12004

$2.69

14

HOUSING, HEADLAMP | T250; CHROME PLATED; Includes Item(s) 15 - 17

51810-15033

Unavailable

15

GROMMET, A | T250; 20x35x8

51845-15030

Unavailable

16

GROMMET, B | T250; 28x36x8

51845-15130

Unavailable

17

CUSHION | T250

51827-15030

Unavailable

18

BOLT | T250 This part replaces 01221-08257.

01204-08257

$1.96

19

WASHER | T250 This part replaces 08322-11088.

08322-01087

$2.13

20

.LOCK WASHER | T250 This part replaces 08321-21088.

08321-01087

$2.13

21

NUT | T250 This part replaces 08312-11088.

08310-00087

$2.13

22

SCREW | T250

02131-05108

Unavailable
