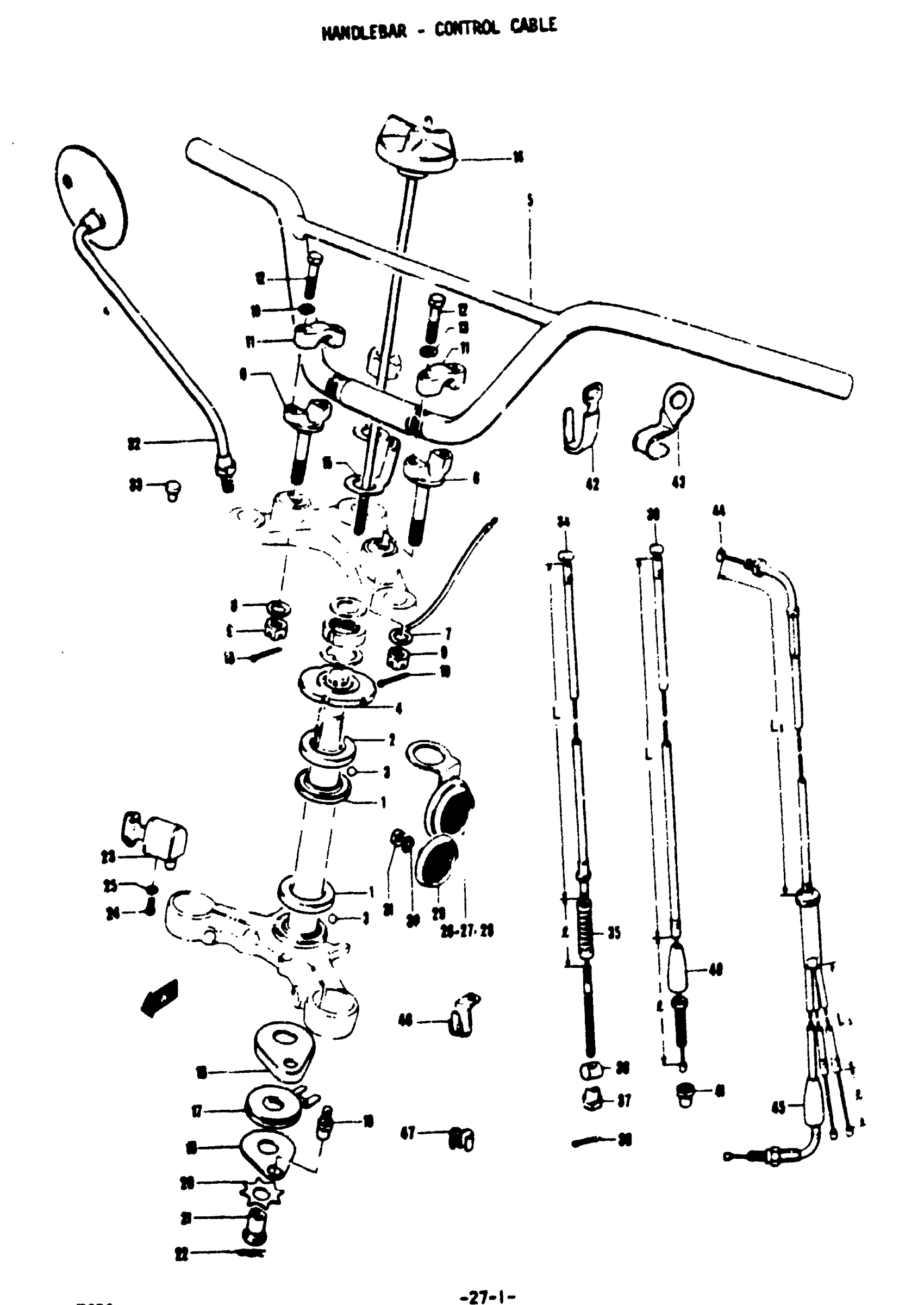

Suzuki T250II (1972) HANDLEBAR - CONTROL CABLE Diagram

#

Description
Price

1

INNER RACE, STEERING

51611-16500

Unavailable

2

OUTER RACE, STEERING

51621-08000

Unavailable

3

STEEL BALL This part replaces 06111-08004.

06111-08003

$1.49

4

NUT, STEERING STEM This part replaces 51631-08010.

51631-08000

Unavailable

5

HANDLEBAR | T250

56110-18100

Unavailable

5

HANDLEBAR | T250II This part replaces 56110-15102.

56111-15103

Unavailable

5

HANDLEBAR | T250R,T250J This part replaces 56110-15600.

56111-15103

Unavailable

6

CLAMP, HANDLEBAR LOWER This part replaces 56221-15000.

56221-33000

Unavailable

7

PLATE, HANDLEBAR EARTH | T250II,T250R,T250J

56290-18000

Unavailable

8

WASHER | 10.5x78x2.3

09160-10035

$1.78

9

NUT This part replaces 08314-11108.

08314-3110A

$1.99

10

COTTER PIN

04111-20258

Unavailable

11

CLAMP, HANDLEBAR UPPER This part replaces 56211-15000.

56211-33000

Unavailable

12

BOLT This part replaces 01221-08307.

01204-08307

$1.99

13

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

14

KNOB, HANDLEBAR DAMPER

51730-08100

Unavailable

15

STOPPER, DAMPER KNOT

51744-08100

Unavailable

16

PLATE, DAMPER UPPER STEEL

51721-08100

Unavailable

17

PLATE, DAMPER UPPER CORX

51710-08100

Unavailable

18

PLATE, DAMPER LOWER STEEL

51722-08100

Unavailable

19

BOLT, DAMPER LOCK

51781-08100

Unavailable

20

SPRING, DAMPER

51742-08100

Unavailable

21

HUE, DAMPER SLEAVE

51741-08100

Unavailable

22

CLIP

09385-06001

$3.10

23

LOCK ASSY, STEERLING | T250,T250II

51900-03012

Unavailable

23

LOCK ASSY, STEERLING | T250R,T250J

51900-19010

Unavailable

24

SCREW This part replaces 02111-05108.

02112-05107

$1.49

25

LOCK WASHER This part replaces 08321-21056.

08321-0105A

$1.84

26

REFLEX REFLECTOR, FRONT RH | T250II,T250R

35950-18623

Unavailable

27

REFLEX REFLECTOR, FRONT LH | T250II,T250R

35960-18623

Unavailable

28

REFLEX REFLECTOR, FRONT | T250J

35950-18690

Unavailable

29

REFLEX REFLECTOR, FRONT | T250

35950-18612

Unavailable

30

LOCK WASHER | T250 This part replaces 08321-21058.

08321-0105A

$1.84

31

NUT | T250 This part replaces 08311-11058.

08310-00057

$1.84

32

MIRROR ASSY,RR | T250,T250JT250II,T250R This part replaces 56500-31010.

56500-23412

$70.29

32

MIRROR ASSY,RR | T250; OPTT250J This part replaces 56600-31010.

56600-23412

$82.68

33

PLUG | T250 This part replaces 09250-06001.

09250-06005

$2.15

34

CABLE ASSY, FRONT BRAKE | L:1160, l:200; Includes Item(s) 35 - 38

58100-18000

Unavailable

35

BOOT

09287-05001

Unavailable

36

.PIN (13X18) This part replaces 09209-13003.

09209-13018

$3.42

37

.NUT This part replaces 09150-06001.

09150-06010

$3.10

38

COTTER PIN

04111-20128

Unavailable

39

CABLE,CLUTCH | L:1080, L:116; Includes Item(s) 40 - 41 This part replaces 58200-15100.

58200-33601

Unavailable

40

BOOT

09287-10001

Unavailable

41

NUT This part replaces 09159-08007.

08310-00087

$2.13

42

CLAMP | T250; L:149

09410-00023

Unavailable

42

CLAMP | T250J; L:140

09410-00006

Unavailable

43

NO DESCRIPTION AVAILABLE | T250II,T250R,T250J This part replaces 09403-00065.

09403-08307

Unavailable

44

CABLE, THROTTLE | T250; L1:680, L2:280 l:75

58300-18700

Unavailable

44

CABLE,THROTTLE | T250II,T250R; L1:680, L2:280 l:81 This part replaces 58300-18400.

58300-18410

Unavailable

45

SEAL,DUST | T250,T250II,T250R This part replaces 09287-07002.

09287-07006

$2.30

46

CLIP A | T250,T250II,T250R

09403-00031

Unavailable

47

CLIP B | T250,T250II,T250R

09408-00002

$2.30
