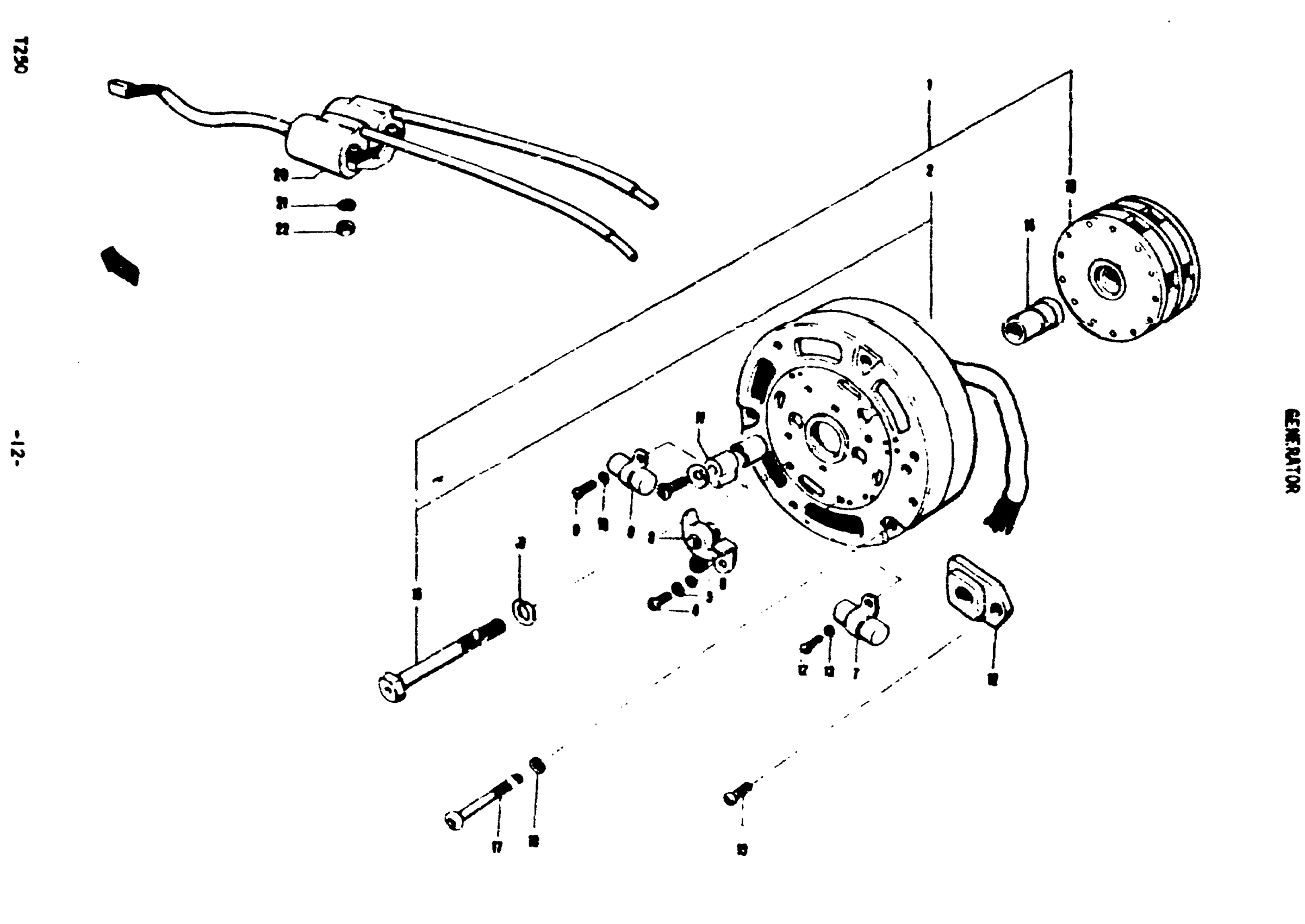

Suzuki T250II (1972) GENERATOR Diagram

#

Description
Price

1

AC GENERATOR ASSY | T250 This part replaces 31400-18020.

31400-18524

Unavailable

1

GENERATOR ASSY | T250II,T250R,T250J; Includes Item(s) 2 - 16

31400-18520

Unavailable

2

STATOR ASSY | T250 This part replaces 31401-18021.

31401-18524

Unavailable

2

STATOR ASSY | T250II,T250R,T250J

31401-18521

Unavailable

3

POINT ASSY, CONTACT

31440-15020

Unavailable

4

SCREW

02311-04068

Unavailable

5

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

6

WASHER This part replaces 08322-21048.

08322-01047

$1.86

7

CONDENSER, RH This part replaces 31641-15021.

31641-18522

Unavailable

8

CONDENSER, LH This part replaces 31642-15022.

31642-18522

Unavailable

9

SCREW

02311-04068

Unavailable

10

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

11

FELT, OIL

31638-15020

Unavailable

12

GROMMET

31485-15020

Unavailable

13

ROTOR

31710-18021

Unavailable

14

CAM, CONTACT BRAKER

31724-15021

Unavailable

15

BOLT, ROTOR

31791-15020

Unavailable

16

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

17

SCREW This part replaces 02112-05508.

02112-0550B

$2.39

18

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

19

SCREW

02111-06108

Unavailable

20

NO DESCRIPTION AVAILABLE This part replaces 33410-15020.

33410-15021

Unavailable

21

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

22

NUT This part replaces 08312-11088.

08310-00087

$2.13
