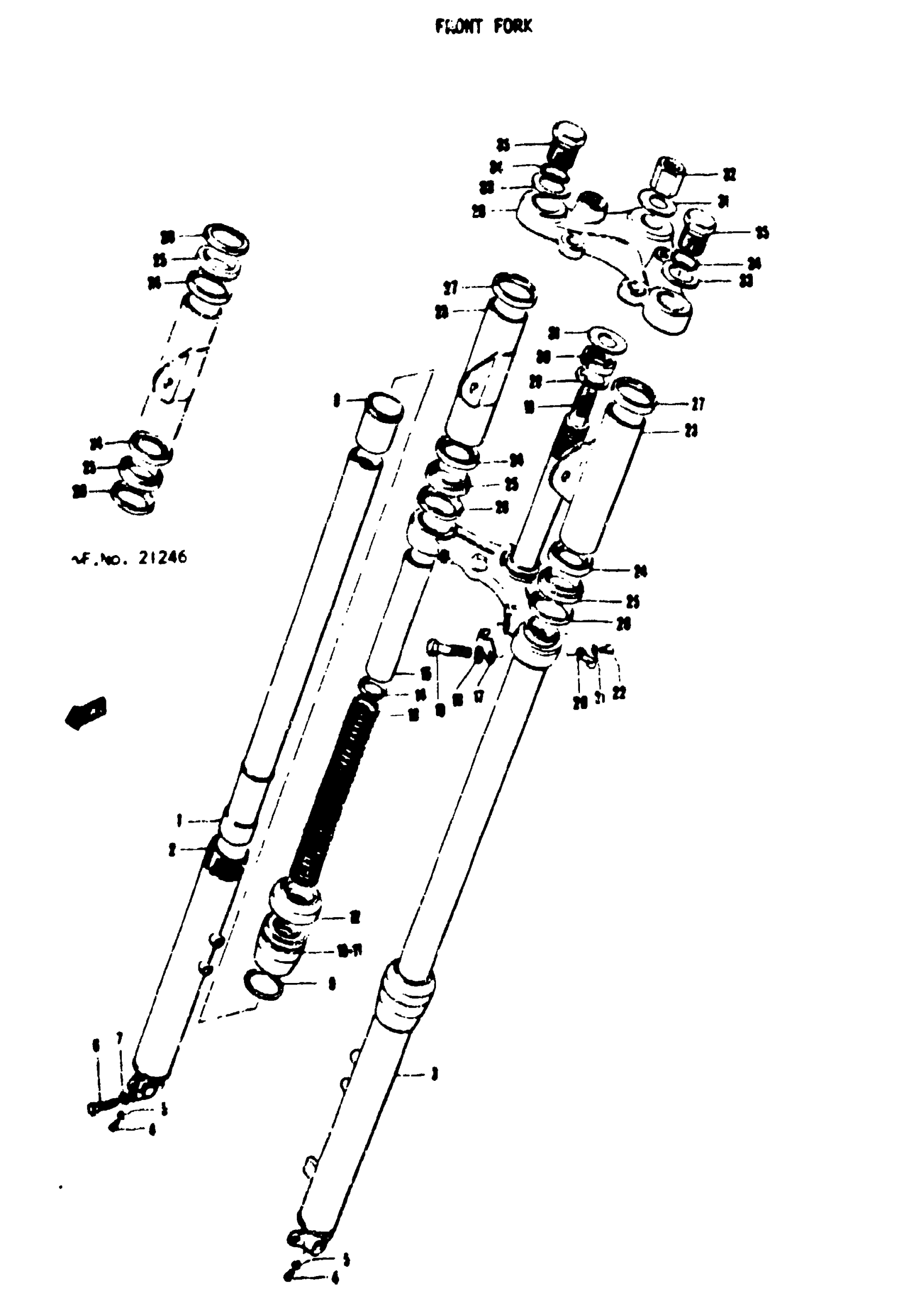

Suzuki T250II (1972) FRONT FORK Diagram

#

Description
Price

0

FORK ASSY, FRONT | T250II,T250R,T250J; Includes Item(s) 1 - 21

51100-18510

Unavailable

1

INNER TUBE | T250II,T250R,T250J

51110-18510

Unavailable

2

OUTER TUBE, RH | T250II,T250R,T250J

51130-18510

Unavailable

3

OUTER TUBE, LH | T250II,T250R,T250J

51140-18510

Unavailable

4

SCREW | T250II,T250R,T250J

02111-04088

Unavailable

5

GASKET, DRAIN PLUG | T250II,T250R,T250J 4.2x7.3x1.5

51183-03010

$2.07

6

BOLT | T250II,T250R,T250J

01121-08258

Unavailable

7

.LOCK WASHER | T250II,T250R,T250J This part replaces 08321-21088.

08321-01087

$2.13

8

GUIDE, INNER TUBE | T250II,T250R,T250J

51152-11010

Unavailable

9

O RING, OUTER TUBE NUT | T250II,T250R,T250J

51154-11010

Unavailable

10

NUT, OUTER TUBE | T250II,T250R,T250J

51150-18510

Unavailable

11

OIL SEAL | T250II,T250R,T250J This part replaces 51153-16510.

51153-16511

Unavailable

12

DUST SEAL | T250II,T250R,T250J

51173-18510

Unavailable

13

SPRING | T250II,T250R,T250J

51171-18510

Unavailable

14

GUIDE, SPRING | T250II,T250R,T250J

51172-18510

Unavailable

15

SPACER, SPRING | T250II,T250R,T250J

51176-18510

Unavailable

16

STEERING, STEM | T250II,T250R,T250J

51410-18010

Unavailable

17

CLIP, METER CABLE | T250II,T250R,T250J

51452-08010

Unavailable

18

LOCK WASHER | T250II,T250R,T250J This part replaces 08321-21108.

08321-01107

$1.84

19

BOLT, INNER TUBE | T250II,T250R,T250J

51451-18630

Unavailable

20

CLIP, BRAKE CABLE | T250II,T250R,T250J

51453-03010

$5.50

21

LOCK WASHER | T250II,T250R,T250J This part replaces 08321-21068.

08321-01067

$2.13

22

SCREW | T250II,T250R,T250J; Includes Item(s) 23 - 35

02111-06108

Unavailable

23

BRACKET, HEADLAMP | T250II,T250R,T250J F.NO.24217~

51530-18511

Unavailable

24

SEAT, HEADLAMP BRACKET A | T250II,T250R,T250J

51551-18510

Unavailable

25

CUSHION, HEADLAMP BRACKET | T250II,T250R,T250J ~F.NO.24216:4PC

51553-15110

Unavailable

26

SEAT, HEADLAMP BRACKET B | T250II,T250R,T250J ~F.NO.24216:4PC

51554-18510

Unavailable

27

SEAT, HEADLAMP BRACKET C | T250II,T250R,T250J

51555-18510

Unavailable

28

HEAD, STEERING STEM | T250II,T250R,T250J

51310-18510

Unavailable

29

WASHER, STEERING STEM | T250II,T250R,T250J

51641-08010

Unavailable

30

NUT, STEERING STEM | T250II,T250R,T250J

51632-01000

Unavailable

31

WASHER, STEERING STEM | T250II,T250R,T250J

51356-11010

Unavailable

32

NUT | T250II,T250R,T250J This part replaces 08312-11188.

08310-0018A

$3.30

33

WASHER | T250II,T250R,T250J

51354-18510

Unavailable

34

O RING, FORK BOLT | T250II,T250R,T250J

51181-18510

Unavailable

35

BOLT, FORK | T250II,T250R,T250J

51351-18510

Unavailable
