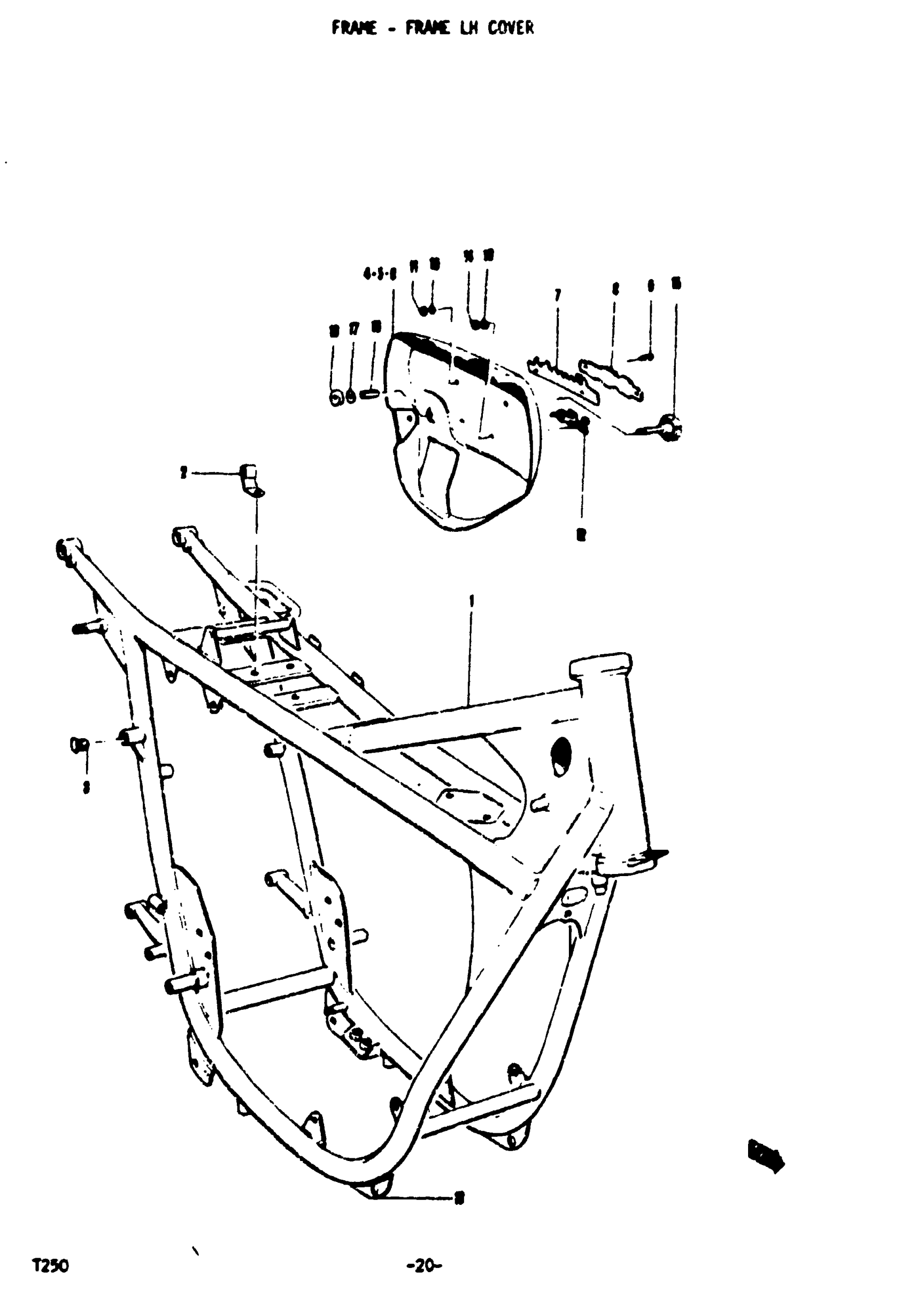

Suzuki T250II (1972) FRAME - FRAME LH COVER Diagram

#

Description
Price

1

FRAME

41100-18300-019

Unavailable

2

HOLDER | T250,T250II,T250R

09403-00004

Unavailable

3

CAP | T250,T250R,T250JT250II; OPT This part replaces 09250-09001.

09250-09008

$1.54

4

COVER, FRAME LH | T250

47210-18001-138

Unavailable

4

COVER, FRAME LH | T250

47210-18001-164

Unavailable

5

COVER, FRAME LH | T250II

47210-18400-156

Unavailable

5

COVER, FRAME LH | T250II

47210-18400-163

Unavailable

5

COVER, FRAME LH | T250R

47210-18400-138

Unavailable

5

NO DESCRIPTION AVAILABLE | T250R This part replaces 47210-18400-215.

47210-18400-019

Unavailable

6

NO DESCRIPTION AVAILABLE | T250J This part replaces 47210-18620-525.

47210-18400-019

Unavailable

6

NO DESCRIPTION AVAILABLE | T250J This part replaces 47210-18620-616.

47210-18400-019

Unavailable

7

EMBLEM, SUZUKI | T250

68131-11001

Unavailable

8

EMBLEM, 250 | T250II,T250R,T250J

68141-18400

Unavailable

9

SCREW

02111-03088

Unavailable

10

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

11

NUT This part replaces 08311-11038.

08310-0003B

$2.83

12

EMBLEM, 250 | T250

68140-18100

Unavailable

13

LOCK WASHER | T250 This part replaces 08321-21048.

08321-0104A

$1.84

14

NUT | T250 This part replaces 08311-11048.

08310-00047

$2.23

15

KNOB, FRAME COVER | T250

47230-01000

Unavailable

15

KNOB, FRAME COVER | T250II,T250R,T250J

47230-18400

Unavailable

16

SPACER | L:18

09180-08024

Unavailable

17

NUT

09152-06001

$1.75

18

PLATE, FRONT BUMPER

41276-18300

Unavailable

19

WASHER

09161-08002

Unavailable
