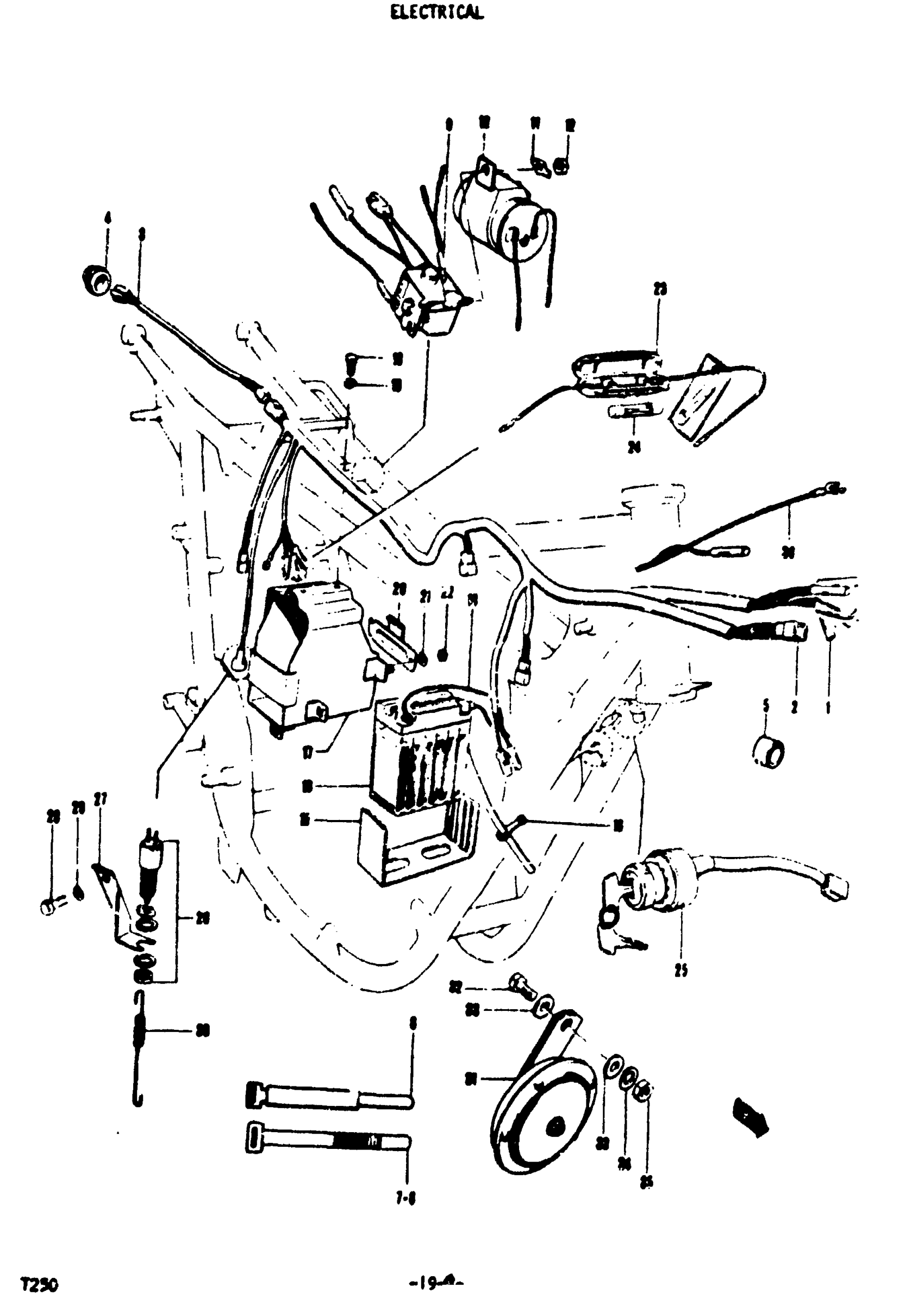

Suzuki T250II (1972) ELECTRICAL Diagram

#

Description
Price

1

HARNESS, WIRING A | T250

36610-15102

Unavailable

2

HARNESS, WIRING A | T250II

36610-18501

Unavailable

2

HARNESS, WIRING A | T250RT250J

36610-18601

Unavailable

3

HARNESS, WIRING B | T250; L:435

36620-18000

Unavailable

3

HARNESS, WIRING B | T250II,T250R,T250J; L: 380

36620-18501

Unavailable

4

BUSHING | T250

09308-04001

Unavailable

5

BAND, WIRING HARNESS | T250II,T250R

33881-58001

Unavailable

5

BAND, WIRING HARNESS | T250J

33881-18400

Unavailable

6

CLAMP | T250II,T250R,T250J; L:180

09410-00014

Unavailable

7

CLAMP | T250R; L:149

09410-00023

Unavailable

8

BAND (L:120) | T250R; L:123 This part replaces 09410-00030.

09407-12402

$3.04

9

RECTIFIER ASSY This part replaces 32800-18520.

32800-18521

Unavailable

10

TURN SIGNAL REL | T250; 12V,32CP x 2 + ICD This part replaces 38610-10610.

38610-322V0

Unavailable

10

TURN SIGNAL REL | T250II,T250R,T250J; 12.8V, 23W x 2+ 1.7W This part replaces 38610-15611.

38610-322V0

Unavailable

11

WASHER

09169-05001

Unavailable

12

NUT This part replaces 08311-11058.

08310-00057

$1.84

13

YB5LB BATTERY(Y | 12V, 5AH This part replaces 33610-18010.

33610-35400

$61.57

14

CABLE, BATTERY

36860-18010

Unavailable

15

PROTECTOR, BETTERY

33651-11000

Unavailable

16

HOLDER

09401-00002

Unavailable

17

HOLDER, BETTERY

41540-11002

Unavailable

18

PLUG, DRAIN This part replaces 01121-08168.

01500-0816B

$2.50

19

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

20

PLATE, BATTERY HOLDER

41560-11000

Unavailable

21

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

22

.NUT This part replaces 08311-11068.

08310-00067

$2.13

23

FUSE CASE ASSY | Includes Item(s) 24 This part replaces 36740-15010.

36740-15011

$9.38

24

FUSE | 15A

03481-15001

Unavailable

25

SWITCH ASSY, IGNITLON | T250,T250II

37110-15010

Unavailable

25

SWITCH ASSY IGN | T250R,T250J This part replaces 37110-15110.

37110-31017

Unavailable

26

SWITCH, BRAKE LAMP

37610-53011

$30.75

27

BRACKET, BRAKE LAMP SWITCH

37752-18001

Unavailable

28

BOLT | T250J

01111-06168

Unavailable

29

LOCK WASHER | T250J This part replaces 08321-21068.

08321-01067

$2.13

30

SPRING

09443-06005

$3.37

31

HORN

38500-15130

Unavailable

32

PLUG, DRAIN This part replaces 01121-08168.

01500-0816B

$2.50

33

WASHER This part replaces 08322-21088.

08322-01087

$2.13

34

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

35

NUT This part replaces 08312-11088.

08310-00087

$2.13

36

CORD, HANDLEBAR EARTH | T250II,T250R,T250J

36810-15000

Unavailable
