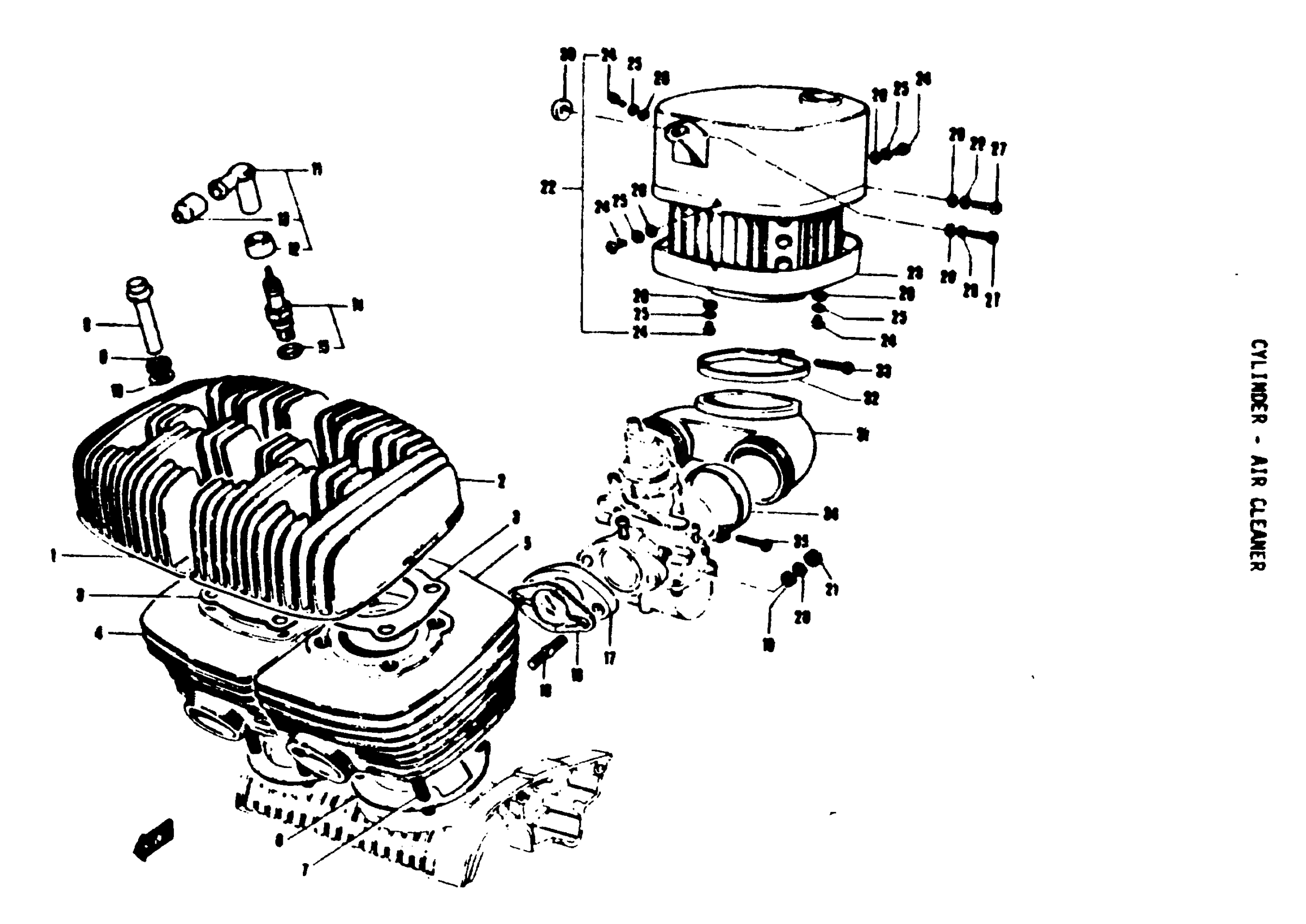

Suzuki T250II (1972) CYLINDER - AIR CLEANER Diagram

#

Description
Price

1

CYLINDER HEAD, RH

11111-18100

Unavailable

2

CYLINDER HEAD, LH

11121-18100

Unavailable

3

CYLINDER HEAD GASKET This part replaces 11141-18100.

11141-18000

Unavailable

4

CYLINDER, RH | T250

11210-18100

Unavailable

4

CYLINDER, RH | T250II,T250R,T250J

11210-18400

Unavailable

5

CYLINDER, LH | T250

11220-18100

Unavailable

5

CYLINDER, LH | T250II,T250R,T250J

11220-18400

Unavailable

6

GASKET,CYLINDER This part replaces 11241-18000.

11241-18001

Unavailable

7

BOLT,STUD This part replaces 01421-08908.

01421-0890A

$4.05

8

NUT

09159-08004

Unavailable

9

LOCK WASHER This part replaces 08321-21128.

08321-01127

$2.06

10

WASHER This part replaces 08322-11128.

08322-01127

$1.84

11

CAP ASSY, SPARK PLUG | Includes Item(s) 12 - 13

33501-10801

Unavailable

12

SEAL, SPARK PLUG CAP

33541-11000

Unavailable

13

SEAL, HIGH TENSION CORD

33542-51000

Unavailable

14

SPARK PLUG | NGK, B-77HC This part replaces 09482-00003.

09482-00082

$2.98

14

SPARK PLUG | NGK, B-7HS, OPT This part replaces 09482-00050.

09482-00082

$2.98

14

SPARK PLUG | NGK, B-9H, OPT; Includes Item(s) 15

09482-00016

Unavailable

15

GASKET

09168-14002

$2.26

16

GASKET, CARBURETOR | T250

13125-18100

Unavailable

16

GASKET, CARBURETOR | T250II,T250R,T250J

13125-18400

Unavailable

17

INSULATOR, CARBURETOR | T250

13129-18100

Unavailable

17

INSULATOR, CARBURETOR | T250II,T250R,T250J

13129-18400

Unavailable

18

STUD BOLT (L:30) | T250 This part replaces 01421-08308.

09108-08142

$3.18

18

STUD BOLT | T250II,T250R,T250J This part replaces 01421-08358.

01421-0835A

$2.29

19

WASHER This part replaces 08322-11088.

08322-01087

$2.13

20

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

21

NUT This part replaces 08312-11088.

08310-00087

$2.13

22

CLEANER ASSY, AIR | T250,T250II

13700-18410

Unavailable

22

CLEANER ASSY, AIR | T250R,T250J; Includes Item(s) 23 - 26

13700-18600

Unavailable

23

FILTER

13780-18410

Unavailable

24

SCREW

02111-04088

Unavailable

25

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

26

WASHER This part replaces 08322-21043.

08322-0104A

$1.91

27

SCREW

02111-06168

Unavailable

28

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

29

WASHER This part replaces 08322-21068.

08322-01067

$2.13

30

WASHER | 8x22x3

09161-08002

Unavailable

31

HOSE, AIR CLEANER | T250

13881-11000

Unavailable

31

HOSE, AIR CLEANER | T250II,T250R,T250J This part replaces 13881-18400.

13880-18601

Unavailable

32

CLAMP, INLET REAR This part replaces 09402-00202.

09402-80306

Unavailable

33

SCREW This part replaces 02111-04208.

02112-0420A

$1.49

34

CLAMP, INTAKE PIPE | T250 This part replaces 09402-00229.

09402-50306

$4.77

34

CLAMP | T250II,T250R,T250J This part replaces 09402-00223.

09402-52306

$4.91

35

SCREW This part replaces 02111-04208.

02112-0420A

$1.49
