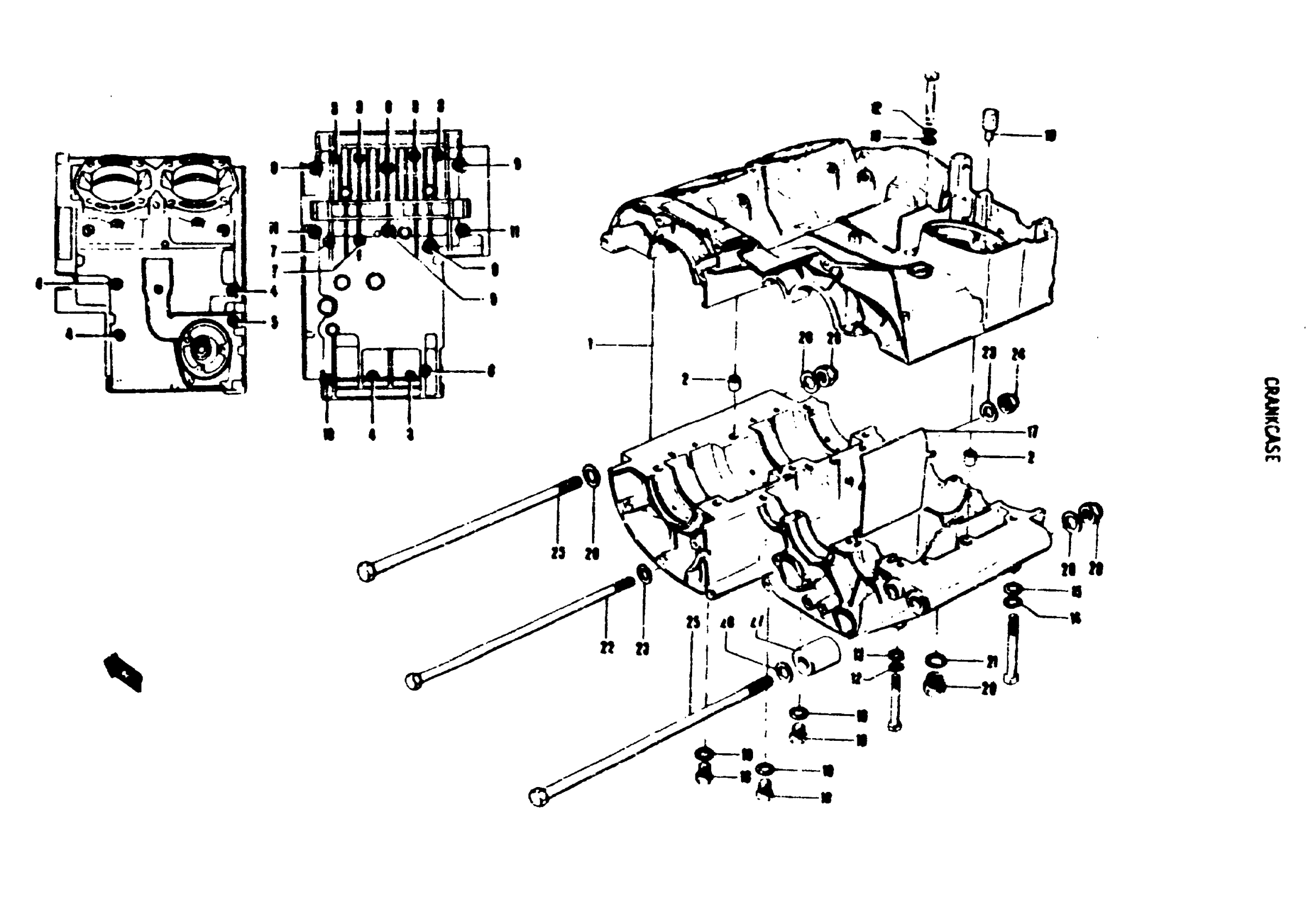

Suzuki T250II (1972) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY | Includes Item(s) 2 - 8

11303-18801

Unavailable

2

DOWEL PIN

04211-11129

$1.76

3

BOLT This part replaces 01112-06558.

01500-0655B

$2.92

4

BOLT (6X60) This part replaces 01112-06608.

09103-06064

$2.12

5

BOLT 6X50 This part replaces 01112-06658.

09100-06038

Unavailable

6

BOLT This part replaces 01112-06808.

01500-0685B

$3.85

7

BOLT This part replaces 01112-06858.

01500-0685B

$3.85

8

BOLT This part replaces 01122-08658.

01500-0865B

$3.49

9

BOLT | Includes Item(s) 10 - 15 This part replaces 01122-08708.

01500-0870B

$3.49

10

BOLT This part replaces 01122-08758.

01500-0875B

$4.10

11

BOLT | 8SCREW, L:100

09100-08023

Unavailable

12

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

13

WASHER This part replaces 08322-21068.

08322-01067

$2.13

14

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

15

WASHER This part replaces 08322-11088.

08322-01087

$2.13

16

PLUG, BREATHER This part replaces 24821-09000.

24821-09001

$9.33

17

DEFLECTOR, BREATHER

24829-18000

Unavailable

18

PLUG

09247-10001

$2.20

19

GASKET

09168-10002

$2.13

20

PLUG

09247-14006

Unavailable

21

GASKET

09168-14002

$2.26

22

BOLT (10x220) | 10SCREW, L:220 This part replaces 09100-10036.

09100-10170

Unavailable

23

WASHER This part replaces 08322-11108.

08322-01107

$2.15

24

NUT

09159-10001

Unavailable

25

BOLT | 12SCREW, L:220

09104-12105

Unavailable

26

WASHER This part replaces 08322-11128.

08322-01127

$1.84

27

SPACER | L:30.4

09180-12028

Unavailable

28

NUT

09159-12102

$3.23
