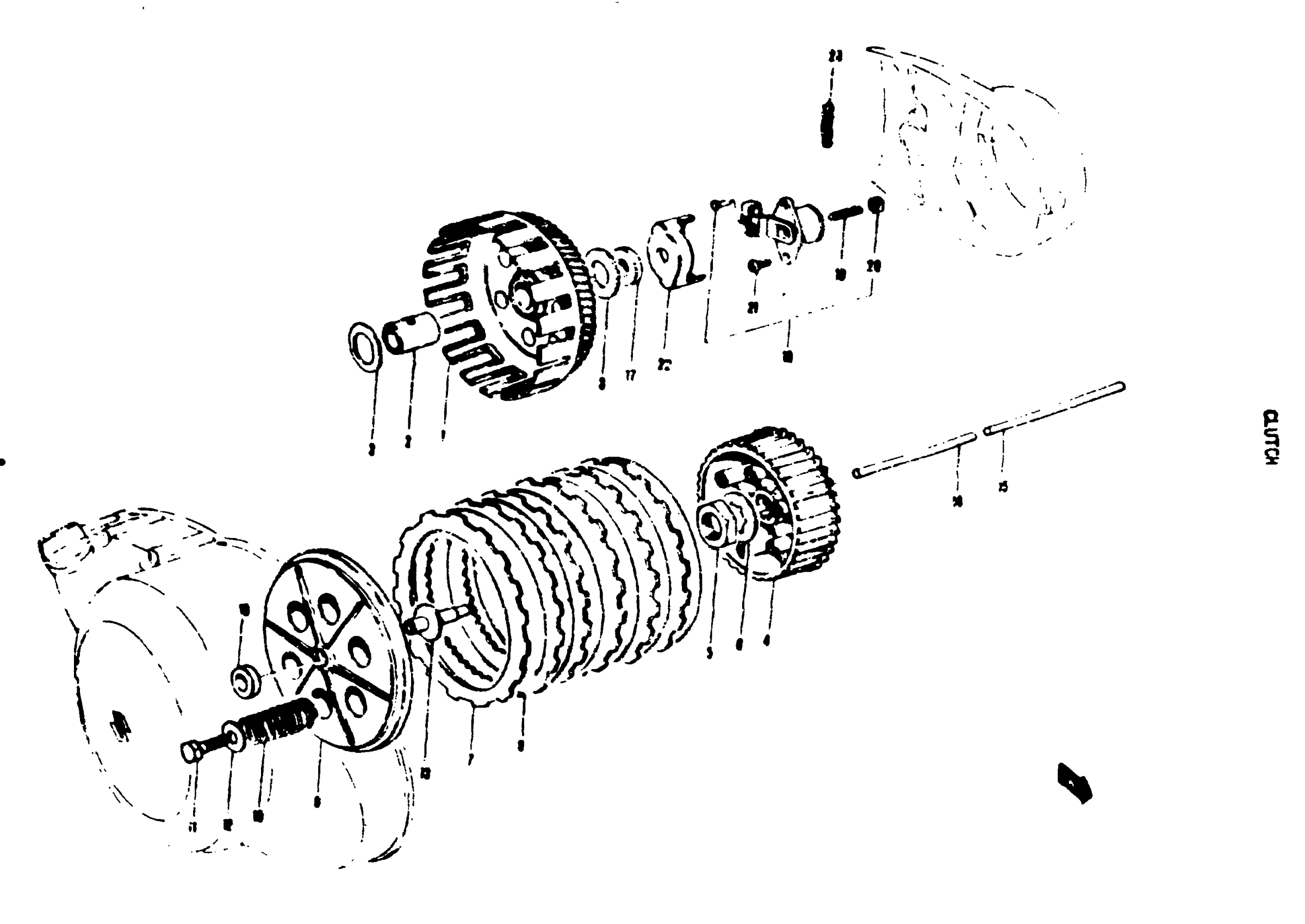

Suzuki T250II (1972) CLUTON Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVEN | NT:61

21200-18001

Unavailable

2

SPACER, PRIMARY DRIVEN | 20x25x32 This part replaces 09180-20010.

21251-13E00

$23.38

3

WASHER This part replaces 08211-20383.

09160-20028

Unavailable

4

HUB, CLUTCH SLEEVE This part replaces 21411-18000.

21411-18001

Unavailable

5

NUT This part replaces 09140-20002.

09140-20001

$3.37

6

LOCK WASHER This part replaces 09167-20006.

09167-20009

$2.03

7

PLATE, DRIVE

21441-15000

Unavailable

8

PLATE, CLUTCH DRIVEN This part replaces 21451-15000.

21451-31000

$10.40

9

PLATE, PRESSURE

21462-15000

Unavailable

10

SPRING

09440-19005

Unavailable

11

BOLT

01111-06168

Unavailable

12

WASHER (6.5X20X1.6) | 6.5x20x1.6 This part replaces 09160-06020.

09160-06066

$1.89

13

ROD, RELEASE

23121-15001

Unavailable

14

ROD, PUSH A | OD:6, L:123

23111-10000

Unavailable

15

ROD, PUSH B | OD:6, L:154.5

23111-18001

Unavailable

16

OIL SEAL | 10x17x5

09284-10002

$2.90

17

SEAL,OIL(6X30X7 | 6x30x5 This part replaces 09285-06005.

09285-06009

$3.89

18

SCREW ASSY, RELEASE | Includes Item(s) 19 - 20

23200-18000

Unavailable

19

SCREW This part replaces 09134-06001.

09134-06010

$3.12

20

.NUT This part replaces 08311-31068.

08310-00067

$2.13

21

SCREW This part replaces 02111-06128.

02112-06127

$1.84

22

COVER

23241-18500

Unavailable

23

SPRING

09443-08001

$2.92
